Arid Bilge Systems Series 1 – Single Intake Only

Call 954-577-2850 or Send Enquiry for Pricing

Series 1 units have a single intake port and automatically accepts 12 volt DC or 24 volt DC input power.

Thank You for your interest!

SKU: N/A Category: Tag:

Description

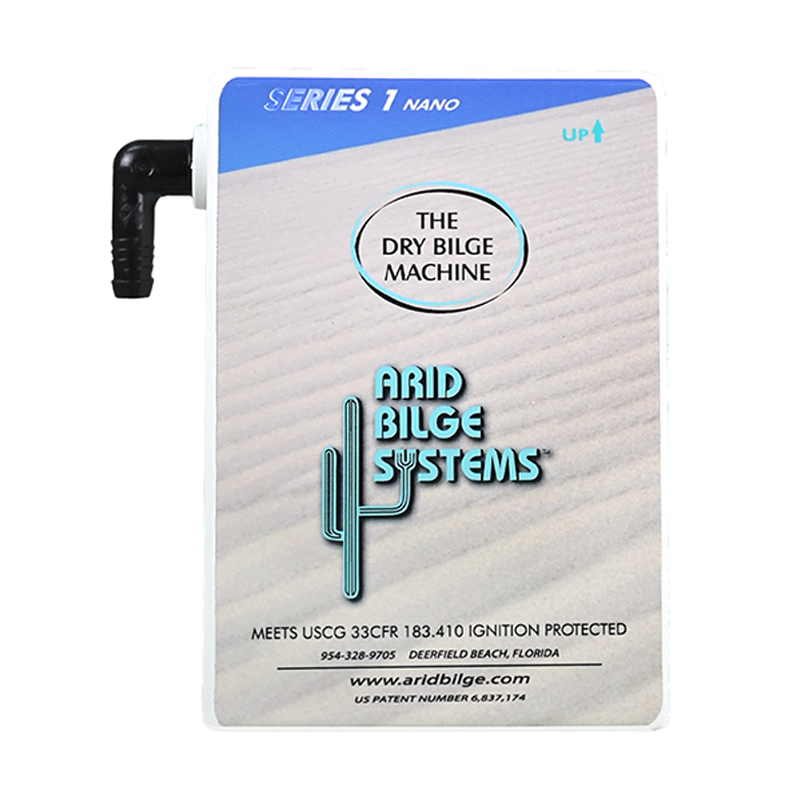

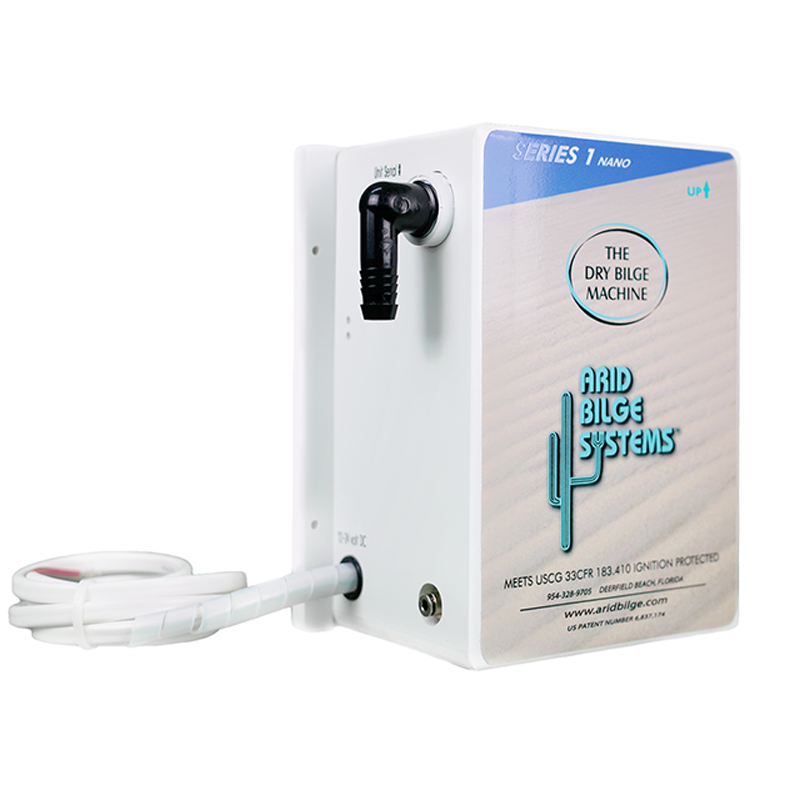

Arid Bilge Series 1 Nano Unit
Series 1 have one intake spot thas automatically 12v or 24v, and could do anywhere from 8 to 32 volts

Arid Bilge is automatic, reliable, flexible, and best of all, it really works.

-Eliminate the #1 source of on board odors
-Lower on board humidity and prevent condensation damage
-Find small leaks that now leave trails through a dry bilge
-Stop mold and mildew before it starts to grow
-Enhance the vessel’s resale value
-Available with a single intake port (zone) only

You will notice the Arid Bilge difference within 24 hours of installation.

Additional information

Weight 5 lbs
Dimensions 10 × 9 × 6 in
Height

7.94 inches / 20.15 centimeters

Box width

5.5 inches / 13.9 centimeters

Depth

4.25 inches / 10.7 centimeters

Box dry weight

4 pounds / 1.9 kilograms

Intake tubing

5/32” diameter, 20 feet fixed length, excess can be spooled but not cut.

Unit Maximum Expected Flow Rate

5 US quarts / 5 liters per hour

Power draw

0.022 amp average standby draw, 0.26 amp average run draw @ 12 volt DC

Certifications

This unit meets USCG 33CFR 183.410 ignition protection

Intake ports

One

Discharge port

1/2" barbed fitting

Control

Software and processor – proprietary

Compressor / vacuum pump

Schwarzer Precision

Intake valves

None

Main unit material

Air injected white PVC plastic

Limited warranty

one year parts and labor.

Voltage

Accepts 12 volt DC or 24 volt DC input power.

Pick Up Type

Mini Standard, Offset, Pickup Wand
