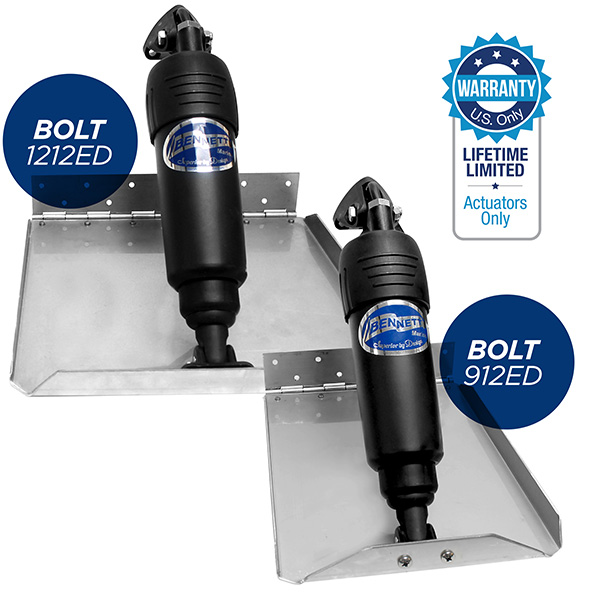

BOLT Electric ­– Edge Mount Limited Space Trim Tab Systems

Call 954-577-2850 or Send Enquiry for Pricing

Category:

Product Description

Exceptionally durable and dependable electric trim tab systems

  • Lifetime warranty for electric actuators
  • Water-tight design provides trouble-free operation for years
  • Solid construction is built to last
  • Installation is fast and simple
  • Multiple control options, tab sizes, and mounting options available
Controls sold separately
  • BOLT Rocker
  • BOLT Joystick Control
  • Indicator Helm Control
  • AutoTrim Pro Auto Trim Tab Control

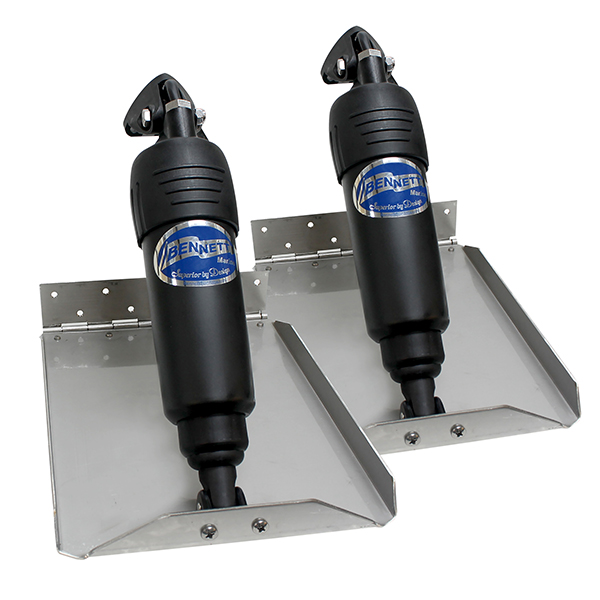

Items Included in Sets
  • (2) Stainless steel trim planes (tabs) and mounting plates
  • (2) 20ft. harnesses with waterproof connectors (BAW2020)
  • (2) 12-volt actuators with 6ft. wire harnesses and waterproof connectors (BEA2000 OR BEA3000)
  • Controls Sold separately
Product Specs

Vertical transom space required:

  • Fixed upper hinge (BEA2000): 13″
  • Adjustable upper hinge (BEA3000): 6.39″
  • Stroke: 2.5″
  • Length: 13.25″
  • Voltage: 12V
  • Connectors: Deutsch, DT Series, 13A

Working forces:

  • Actuation force: 750 lb.
  • Return Force: 750 lb.

Current draw:

  • Actuators: 20amp Max draw
  • Helm Control: 20amp Max draw.
  • Control Unit / Relay Module: 20amp Max draw.

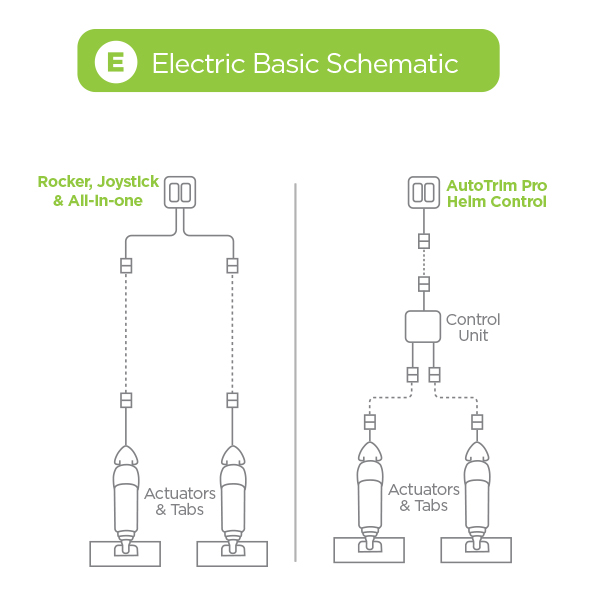

Wiring & Installation Diagrams
For wiring and installation diagrams, download the BOLT Installation Manual
