VECTOR
Call 954-577-2850 or Send Enquiry for Pricing

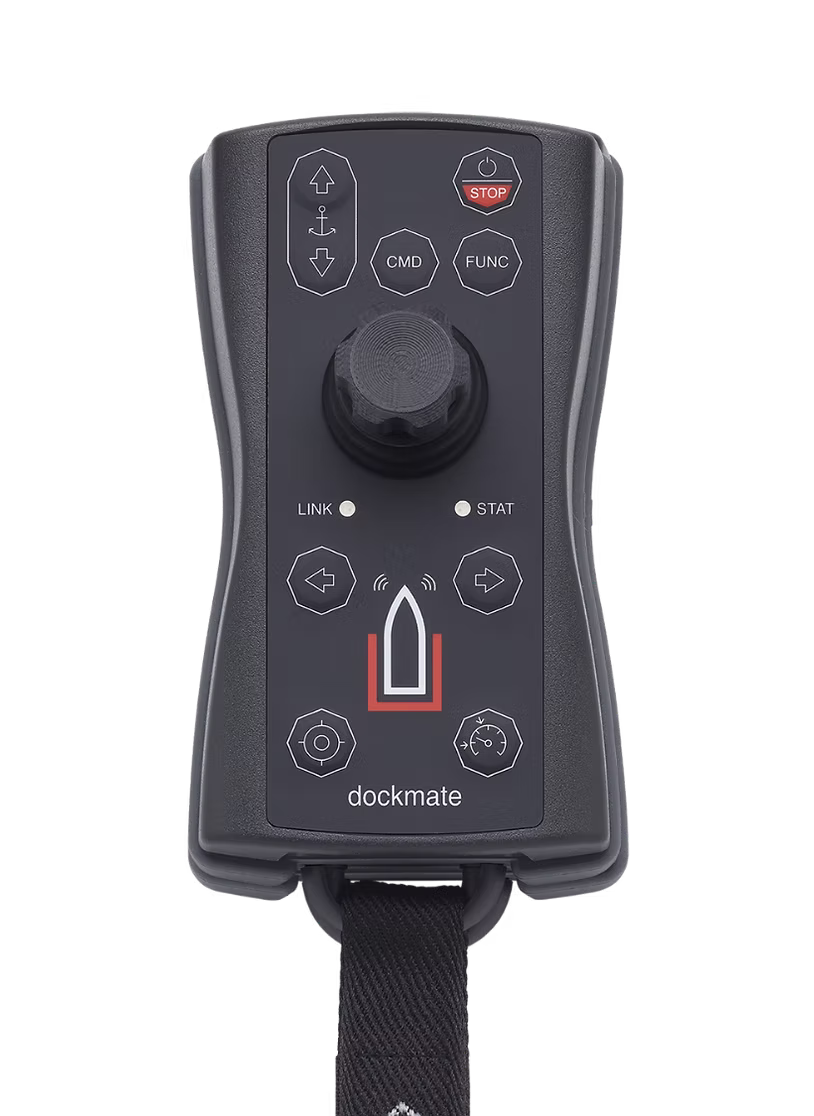

The Dockmate® VECTOR offers a wireless extension of your boat’s joystick with the exact same feeling and response time
- Control 2, 3 or more engines
- Control POD systems with the fully proportional joystick
- Control bow thruster, and one or two anchors with separate buttons.
- Allows you to engage High Mode
- 3 Year Parts & 1 Year Labor Warranty
Description
Info
- The Dockmate® VECTOR offers a wireless extension of your boat’s joystick with the exact same feeling and response time
- Control 2, 3 or more engines
- Control POD systems with the fully proportional joystick
- Control bow thruster, and one or two anchors with separate buttons.
- Allows you to engage High Mode
- 3 Year Parts & 1 Year Labor Warranty
- The VECTOR is waterproof (IP67) and floats
- Operates Dynamic Positioning Systems (DPS), or Skyhook when installed.
- Wireless Charging Pad (Included)
- The VECTOR can also be used on the Volvo Penta inboard joystick for Aquamatic Sterndrives and shafts
- VECTOR PDF
Specs
- Joystick – 3-Axis, Proportional
- Dimensions – 2.75 x 5.16 x 2.28”
- Weight – 5.29 oz
- Frequency – 433.5 MHz
- Range – 165 feet +
- Housing
- ABS & rubber – according to IP67 specifications
- Battery
- Lasts up to at least 15 docking maneuvers of approximately 10 minutes*
- 320+ mAh Li-ion
- Qi-certified wireless charging
- Operating Temperature – +14°F to +140°F
Additional Features
- Smooth, variable-speed, fully-proportional engine throttle with joystick control which offers the exact same feeling & response time as the boat’s engines, thrusters, winch or windlass, and horn controls.
- The Dockmate® system comes with plug and play cables for most brands.
- Also available for single engine boats.
- 2 way transmitter – receiver communication using 6 channel Frequency Hopping Spread Spectrum (FHSS), ensuring highly reliable transmissions.
- Visual and audible confirmation on the transmitter of the receiver status.
- Range of 165+ feet (50 meters) and can be extended for a minimal charge.
- Transmitter has a rubber finish, is waterproof and floats.
- Transmitter has a rechargeable lithium polymer battery and includes a wireless recharger.
- Automatic take command via the transmitter to make it the active station.
- Automatic shutdown of the transmitter after 30 minutes of non-use.
- Modular construction of the receiver; each receiver can be fully customized in a couple of minutes to the user’s exact specifications, additional control modules can be ordered and installed anytime.
- Easy to hide receiver (9.4 x 7.9 x 3.2″).
- Power supply to the receiver (12 or 24V) from 2 different sources for increased safety.
- Federal Communications Commission (FCC) certified.
- 3 Year Parts & 1 Year Labor Warranty
