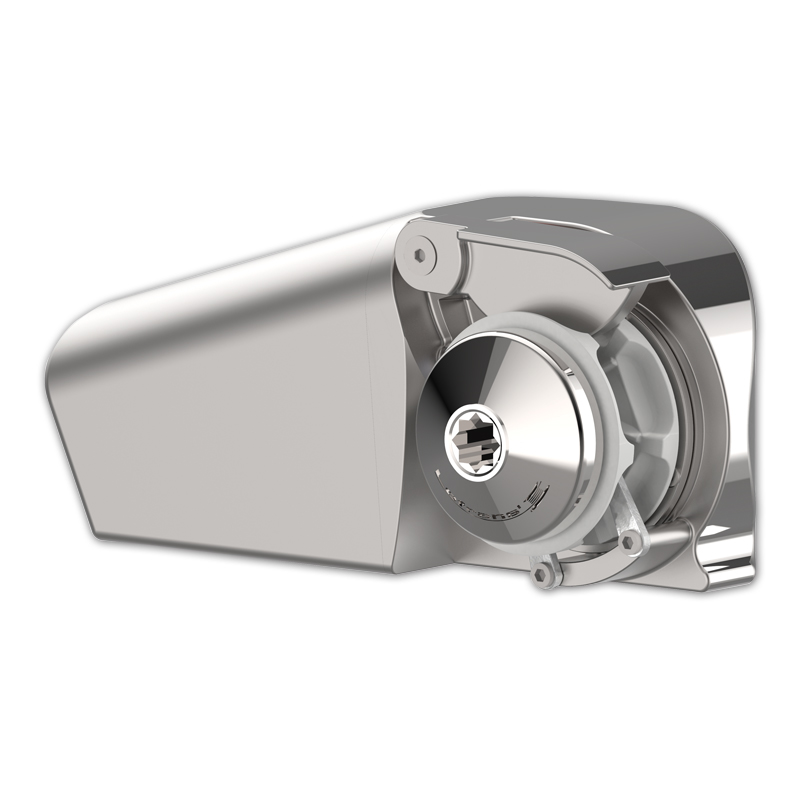

Razza, 12v/500w, 1/4"HT Rope/Chain Gypsy, AISI 316L Stainless Steel

Razza, 12v/500w, 1/4″HT Rope/Chain Gypsy, AISI 316L Stainless Steel

Call 954-577-2850 or Send Enquiry for Pricing

The Razza 12V 500W Horizontal Windlass is a compact stainless steel anchoring system designed for boats 20–35 ft, delivering reliable rope and chain handling with smooth operation, durable construction, and dependable marine performance.

  • Premium AISI 316L stainless steel horizontal windlass construction
  • 12V 500W motor with oil-bath right-angle worm drive gearbox
  • Handles 1/4″ HT rope and chain with spring-loaded management system
  • Includes RCMS, watertight solenoid box, helm switch, and clutch handle
  • Designed for boats 20–35 ft with IP67 motor protection for marine durability
Category:

Description

Overview

Premiuim 316L Stainless Steel Horizontal windlass featuring a powerful right angle drive oil-bath reduction gear system for years of troublle free operation

Comes complete with RCMS, Watertight Solenoid Control Box, Helm Switch and Clutch Handle

Features

  • Marine AISI 316L Stainless Steel construction
  • Manual chain release
  • Chain & rope management by the spring loaded arm
  • IP67 motor cover
  • Automatic free fall available as an option

Specifications

Name Description
Manufacturers Part No 600135
Motor Wattage 500W
Working Load 209 lbs (95 kg)
Version Horizontal Electric
Finish Stainless Steel
Gearbox Stainless Worm Drive
Standard Equipment RCMS, Watertight Solenoid Box, Helm Switch & Clutch Handle
Mainshaft Stainless
Max Retrieval Speed (ft/min) 80
Approximate Boat Size 20 – 35 ft.
Retrieval Speed @ Working Load 59 ft/min (18 m/min)
Amperes @ Working Load 65
Manual Override System No
Approximate Ship Weight (lbs) 38
