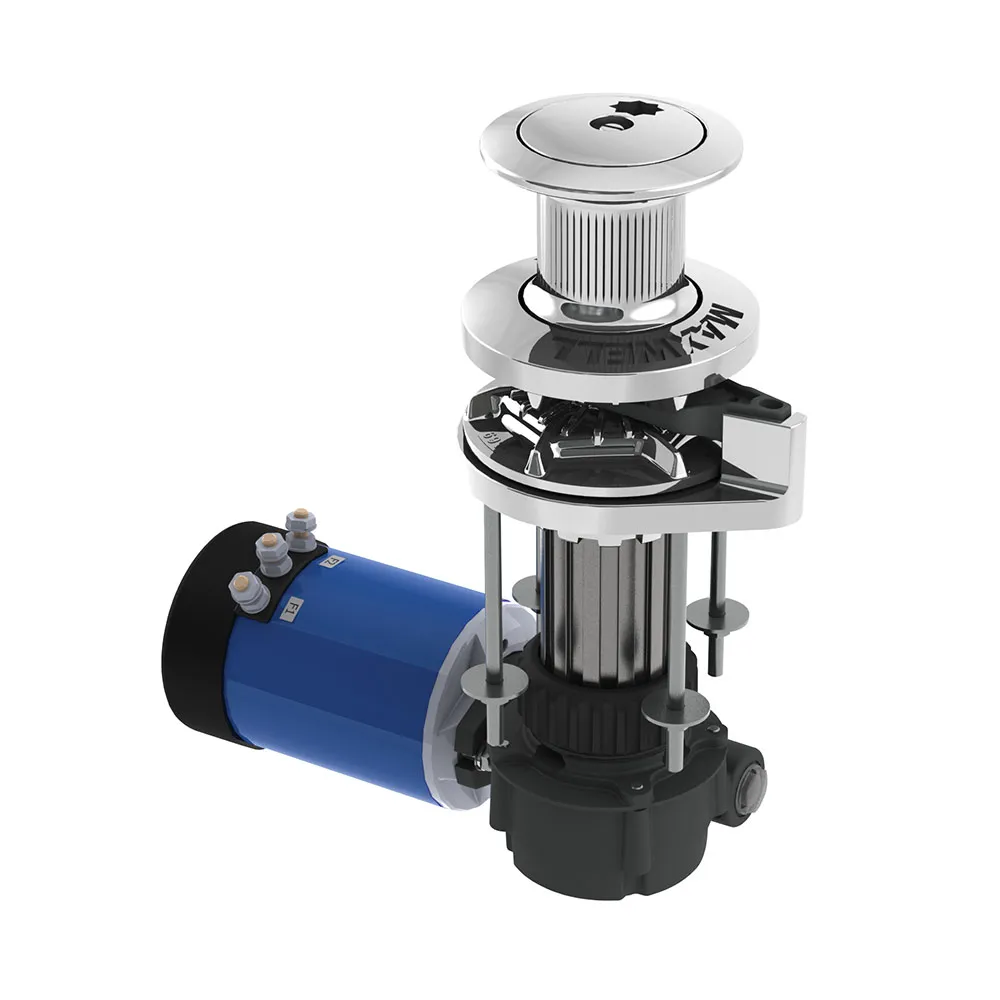

Vertical rope/chain windlasses VW 10

Product Description

VW10 does NOT have a chainpipe leading into the anchor locker, making it suitable for specialized applications (i.e. for feeding rope and chain into deck mounted or seperated anchor lockers, or for horizontal installation inside anchor lockers etc). Suitable for 8-10mm (5/16-3/8″) chain and 14-16mm (9/16″-5/8″) nylon rope and most commonly used on launches and yachts from 30-50′. The VW10 automatic rope/chain anchor winch is Maxwell’s upper mid-range model of the vertical RC Series Windlass range. *for product dimensions and further information see the manuals section.

Model	VW10-8	VW10-10
⚙️ Specifications
Maximum Pull	700kg (1540lbs)	850kg (1870lbs)
Static Hold	1500kg (3300lbs)	1500kg (3300lbs)
Chain Short Link	8mm (5/16″)	10mm (3/8″)
Rope Size (8 plait)	14mm-16mm (9/16″- 5/8″)	16mm (5/8″)
Chain Speed (Normal working load)	24m/min (79ft/min)	24m/min (79ft/min)
Rope Speed (Normal working load)	20m/min (65ft/min)	20m/min (65ft/min)
Power Supply (DC)	12V or 24V	12V or 24V
Motor Power	1000W	1200W
