DFF 15
Call 954-577-2850 or Send Enquiry for Pricing
Product Description

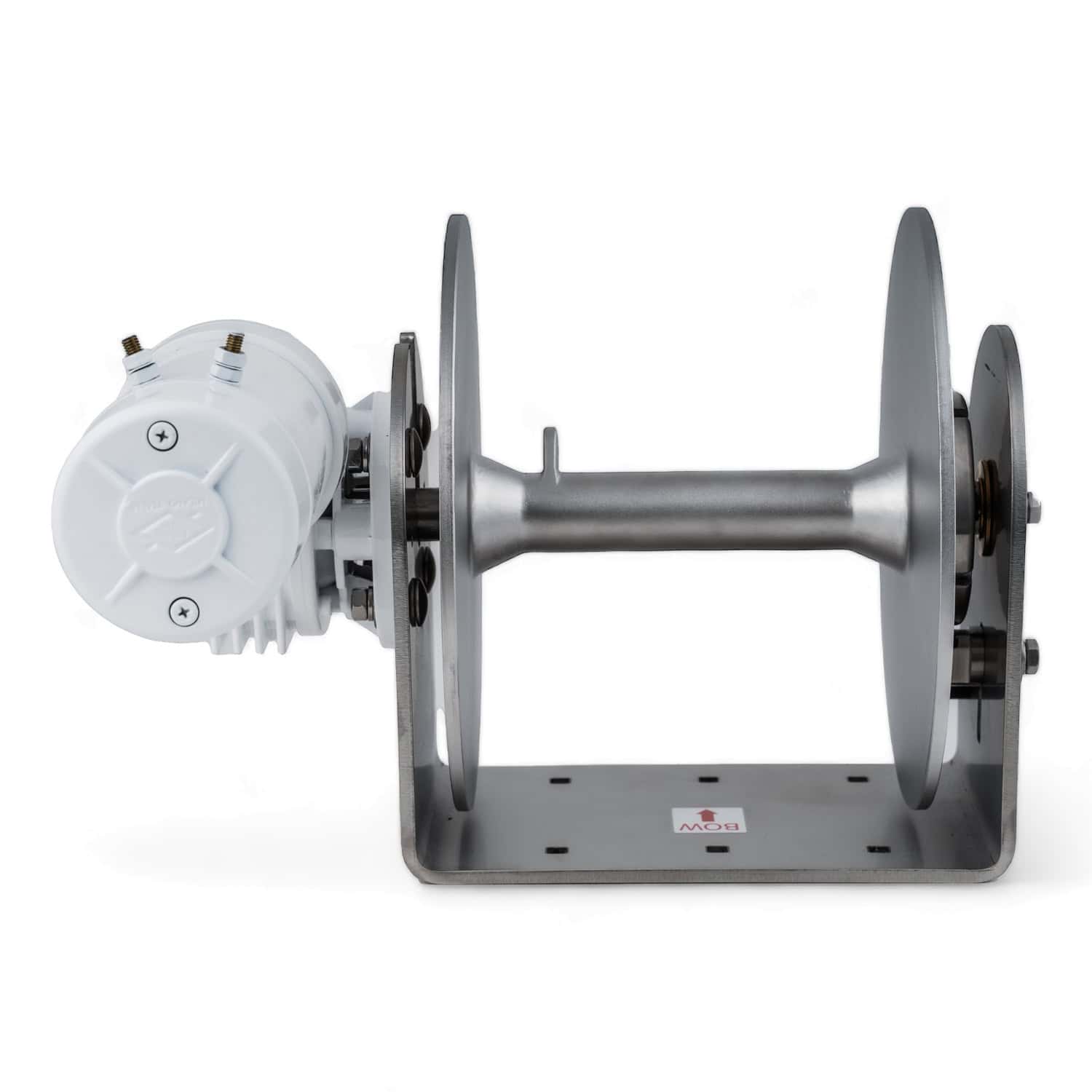

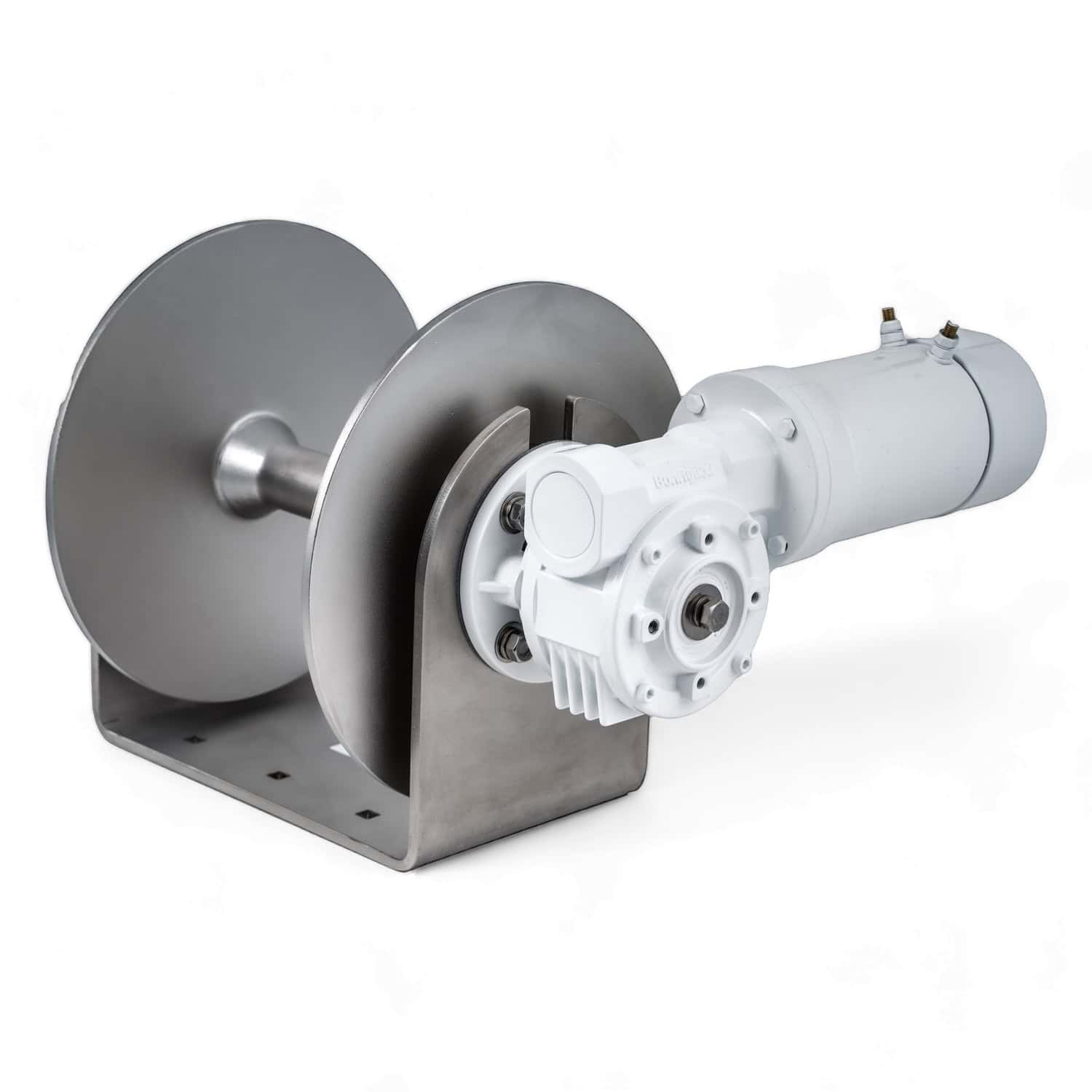

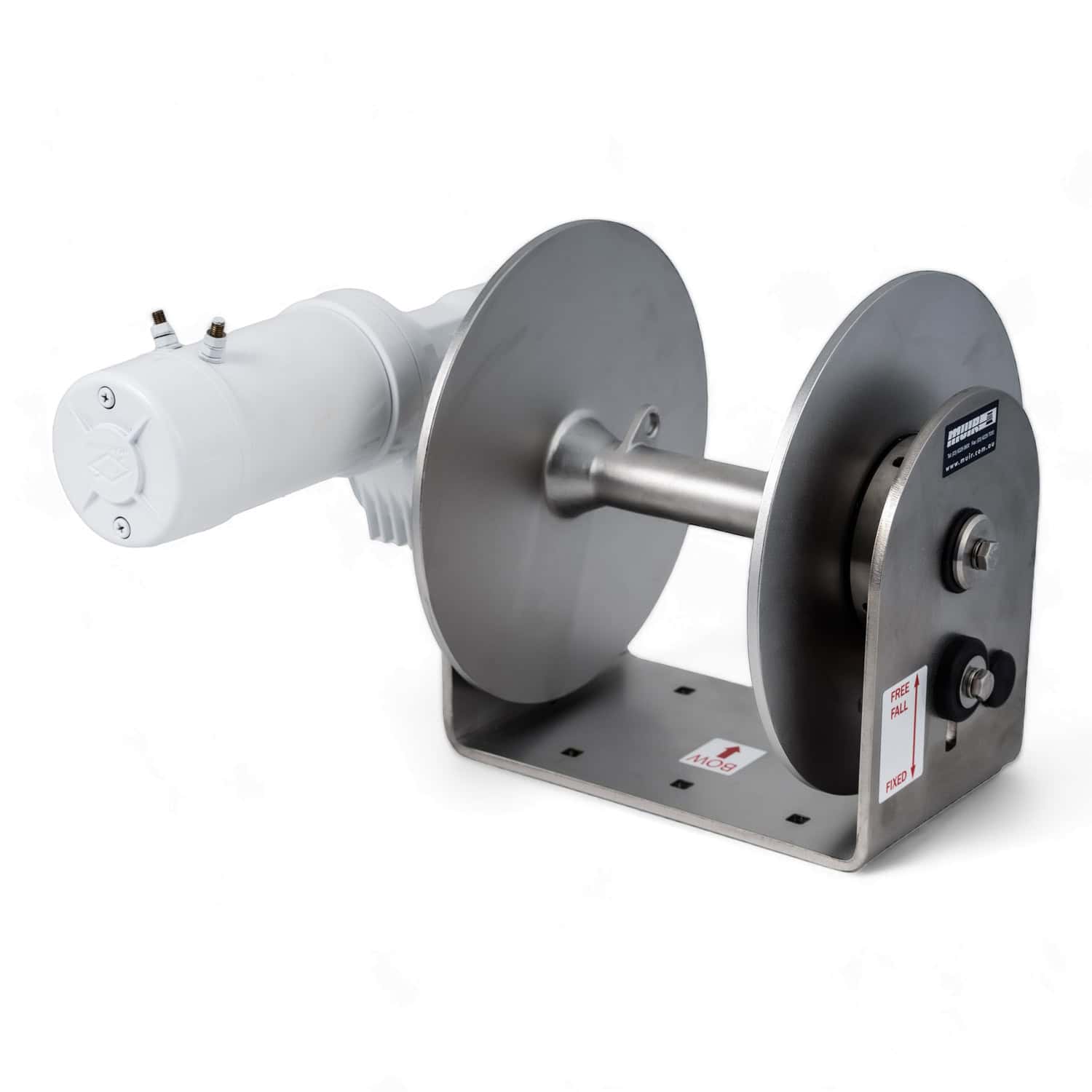

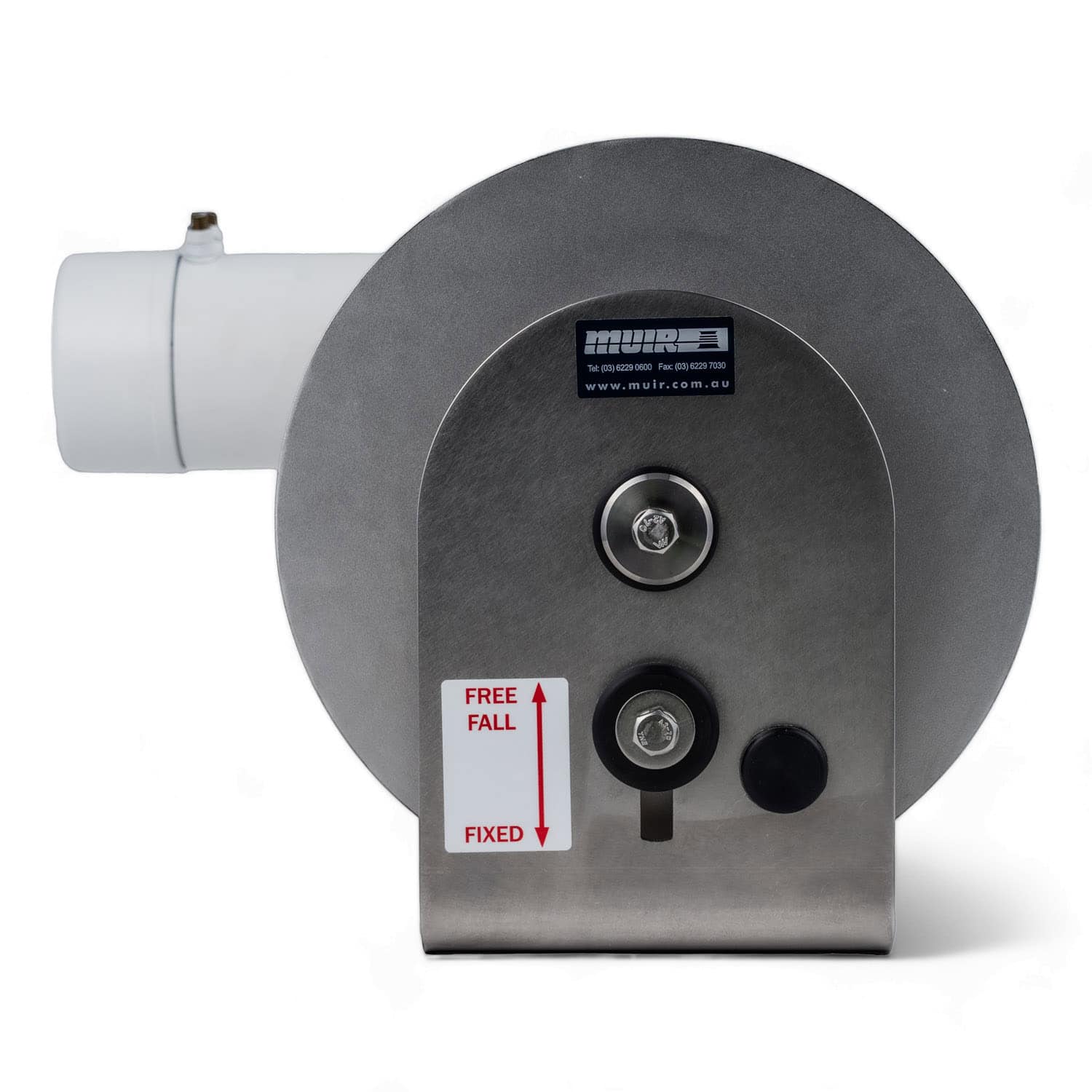

Muir DFF 15 Freefall Drum Winch | Patented Auto Freefall.
Muir DFF 15 freefall drum winch for vessels 12–14m (40 – 47ft). 1700W 12V/24V/48V DC, 390kg max load, patented Auto/Manual Freefall with drum brake. 316 stainless drum.
Features
- Muir’s patented Auto Freefall or Manual Release Freefall is available in one unit!
- Mechanical Auto & Manual Release Freefall means no troublesome electronics must be mounted on the Drum or your chain locker
- Drum Shaft on a serviceable bearing centre for smooth, hassle-free operation even under full load.
- Muir’s drum brake means no over-run during Freefall
- Fast, easy and reliable anchoring with a Muir Drum Winch
- Large capacity drum
- Compact Anchoring system to suit boats with no anchor rode storage
- 316 stainless steel drum
- Superior, heavy-duty Italian drive train
Technical Specifications
| Name | Specifications |
|---|---|
| Recommended Vessel Length (m) | 12-14m |
| Recommended Vessel Length (ft) | 40 – 47ft |
| Power Supply Options | DC 12V, DC 24V, DC 48V |
| Recommended Muir Circuit Breaker | 150A/100A (12/24V) |
| Motor (Watts) | 1700Watts |
| Amps Workload | 185A/90A (12/24V) |
| Max Load | 390Kg |
| Workload | 130Kg |
| Max Line Speed | 25m/min |
| Auto Anchor Compatible | No |
| Net Weight DC | 35Kg |
| Manual Operation | N/A |
