DW 08
Call 954-577-2850 or Send Enquiry for Pricing
Product Description

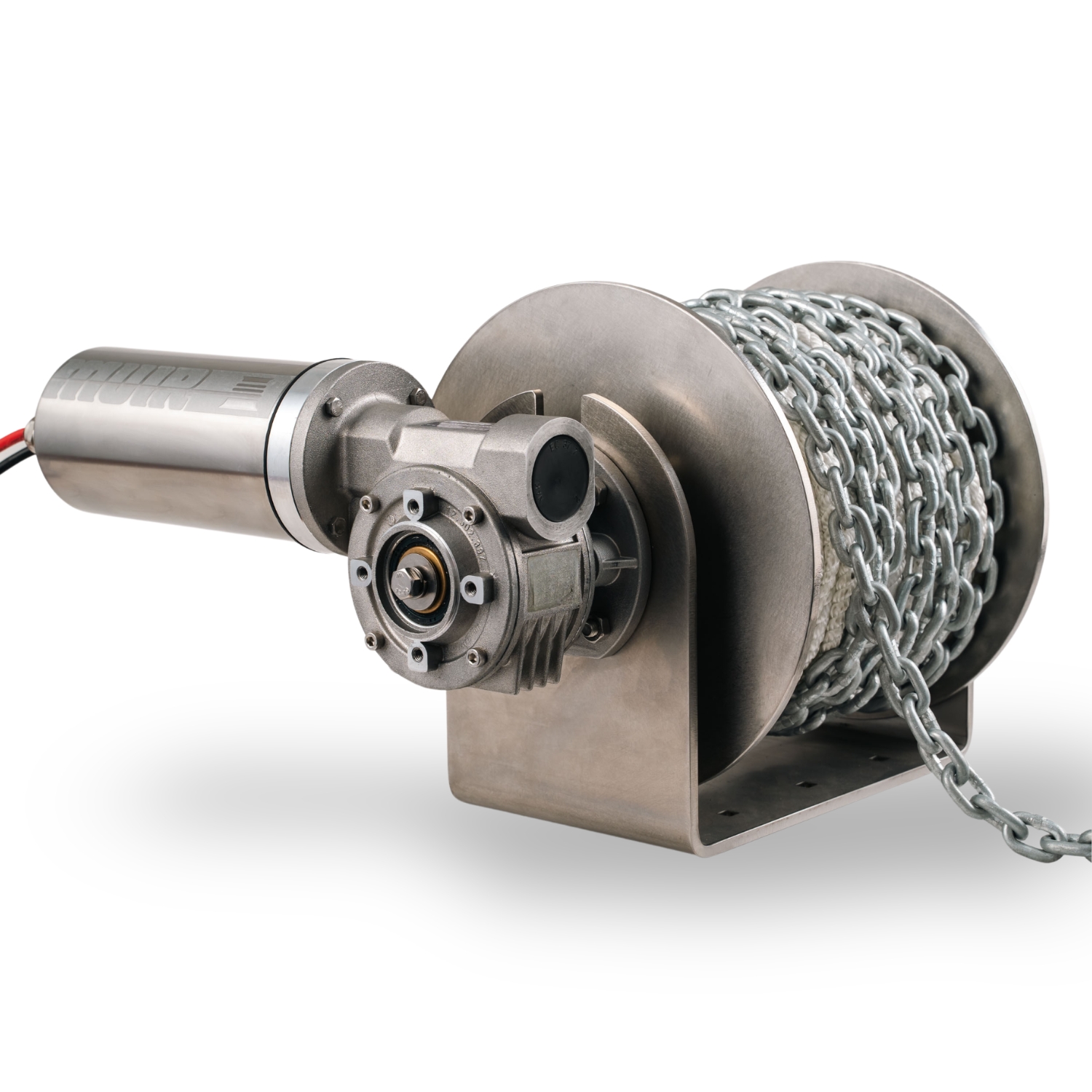

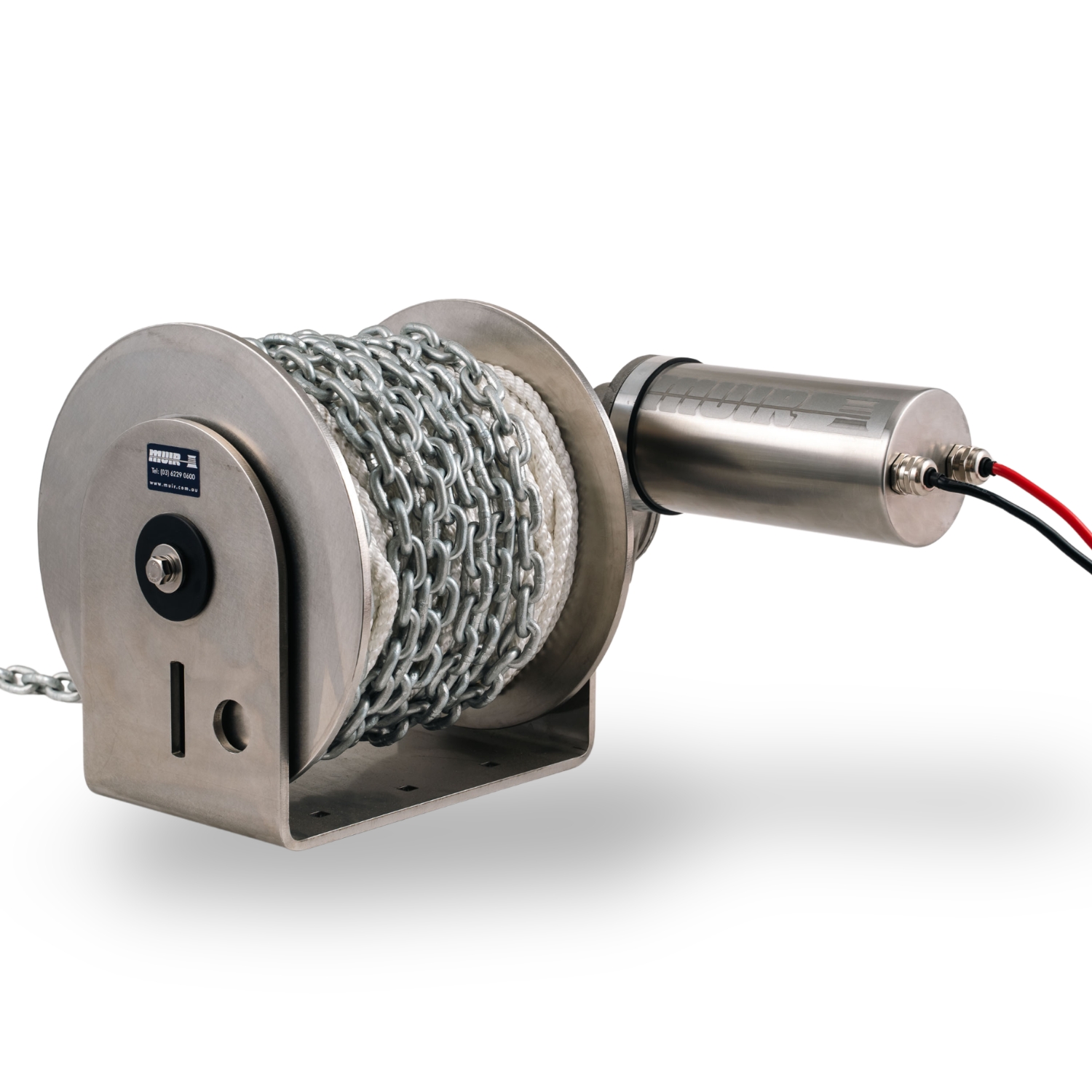

Muir DW 08 Drum Winch | Compact Anchoring 5–8m Boats.
Muir DW 08 drum winch for vessels 5–8m (16 – 26ft). 800W 12V/24V DC, 180kg max load, 316 stainless drum. Auto Anchor compatible. Ideal for boats with no anchor locker.
Features
- Marine grade 316 stainless steel drum
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Italian drive train
- Compact Anchoring system to suit boats with no anchor rode storage
- Simple installation
Technical Specifications
| Name | Specifications |
|---|---|
| Recommended Vessel Length (m) | 5-8m |
| Recommended Vessel Length (ft) | 16 – 26ft |
| Power Supply Options | DC 12V, DC 24V |
| Recommended Muir Circuit Breaker | 100A/80A (12/24V) |
| Motor (Watts) | 800Watts |
| Amps Workload | 80A (12V) |
| Max Load | 180Kg |
| Workload | 60Kg |
| Max Line Speed | 33m/min |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 15Kg |
