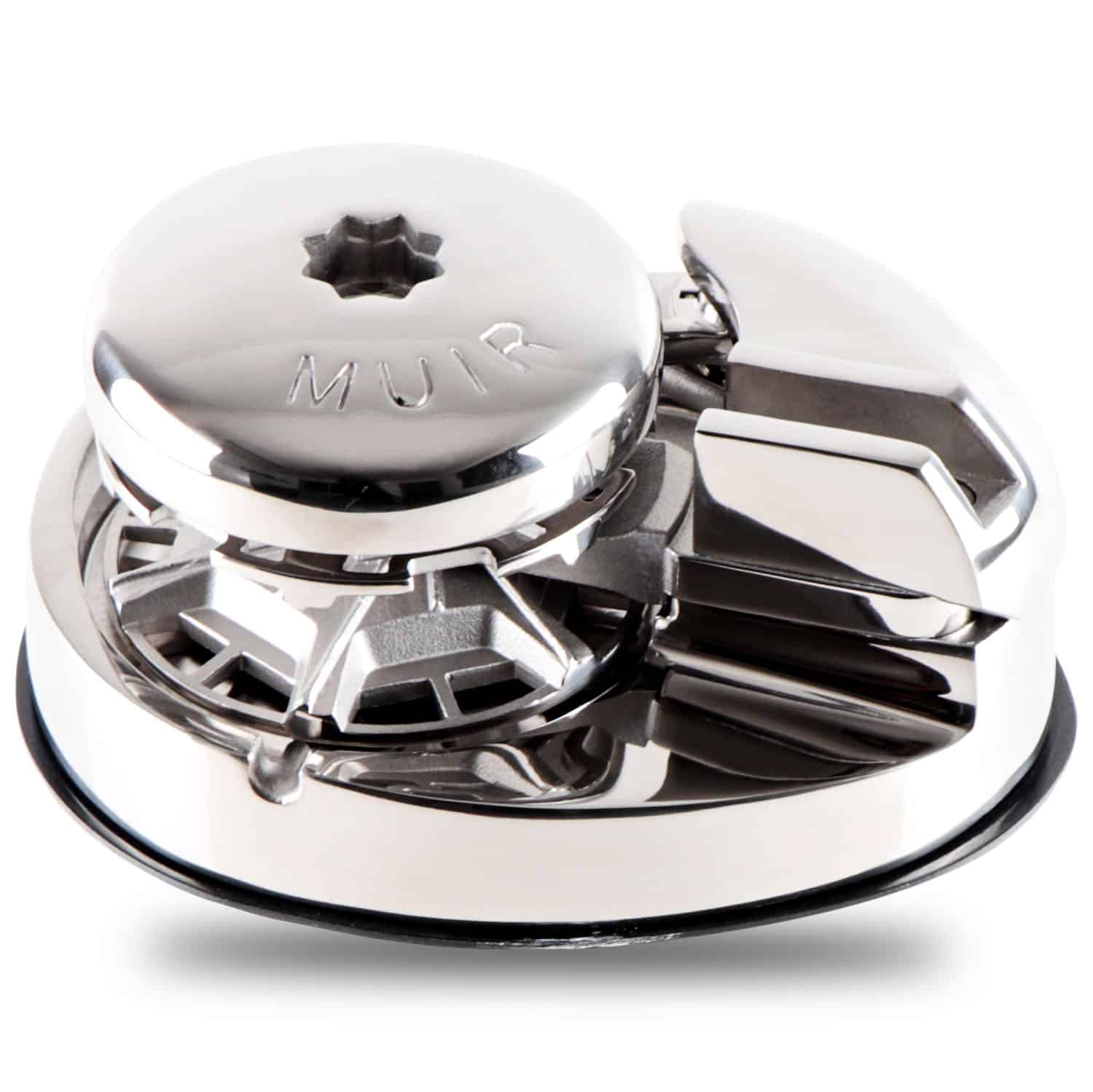

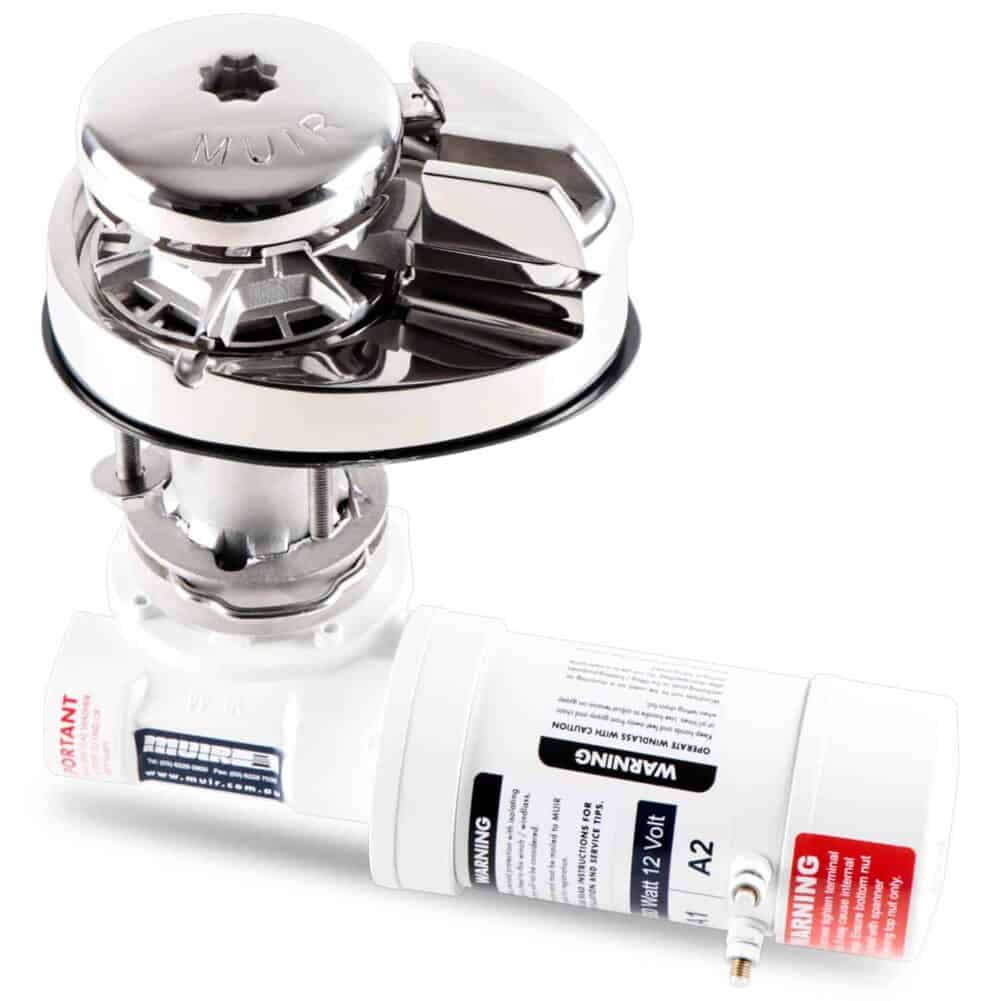

Storm VFF600
Call 954-577-2850 or Send Enquiry for Pricing
Product Description
Storm VFF 600 provides the strength of conventional vertical windlasses but with advanced and innovative concepts. This provides the highest level of security and safety whilst enhancing the foredeck of the most luxurious vessel.
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS)
- Quick-Access Chain Pipe Cover
- Self-lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
Technical Specifications
| Name | Specifications |
|---|---|
| Recommended Vessel Length (m) | 5-9m |
| Recommended Vessel Length (ft) | 16 – 29ft |
| Power Supply Options | DC 12V, DC 24V, DC 48V |
| Recommended Muir Circuit Breaker | 80A/80A (12/24V) |
| Motor (Watts) | 550Watts |
| Amps Workload | 75A/40A (12/24V) |
| Max Load | 369Kg |
| Workload | 123Kg |
| Max Line Speed | 21m/min |
| Compatible Chain Sizes | 6 mm (1/4″) – 7 mm (7/25″) |
| Compatible Rope Sizes | 12 mm (1/2″) |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 12Kg |
| Manual Operation | N/A |
