VC500

Call 954-577-2850 or Send Enquiry for Pricing

Category:

Product Description

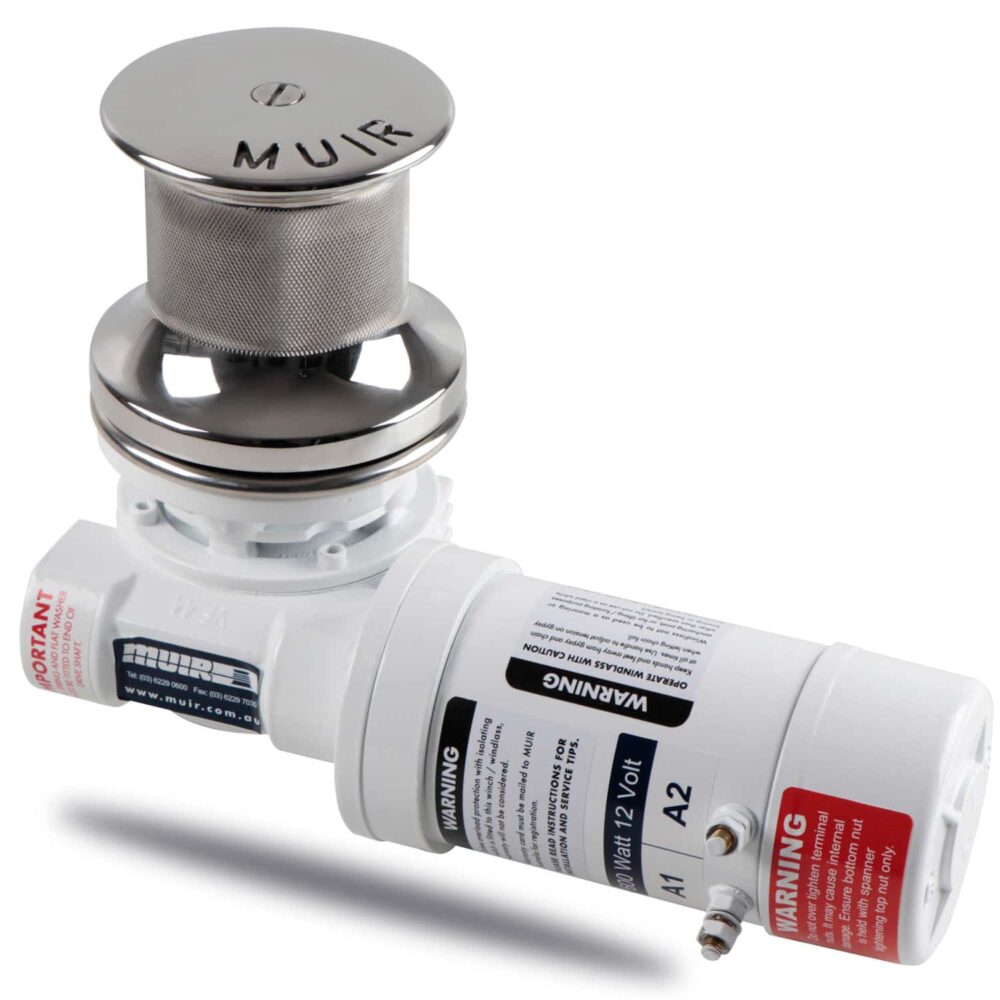

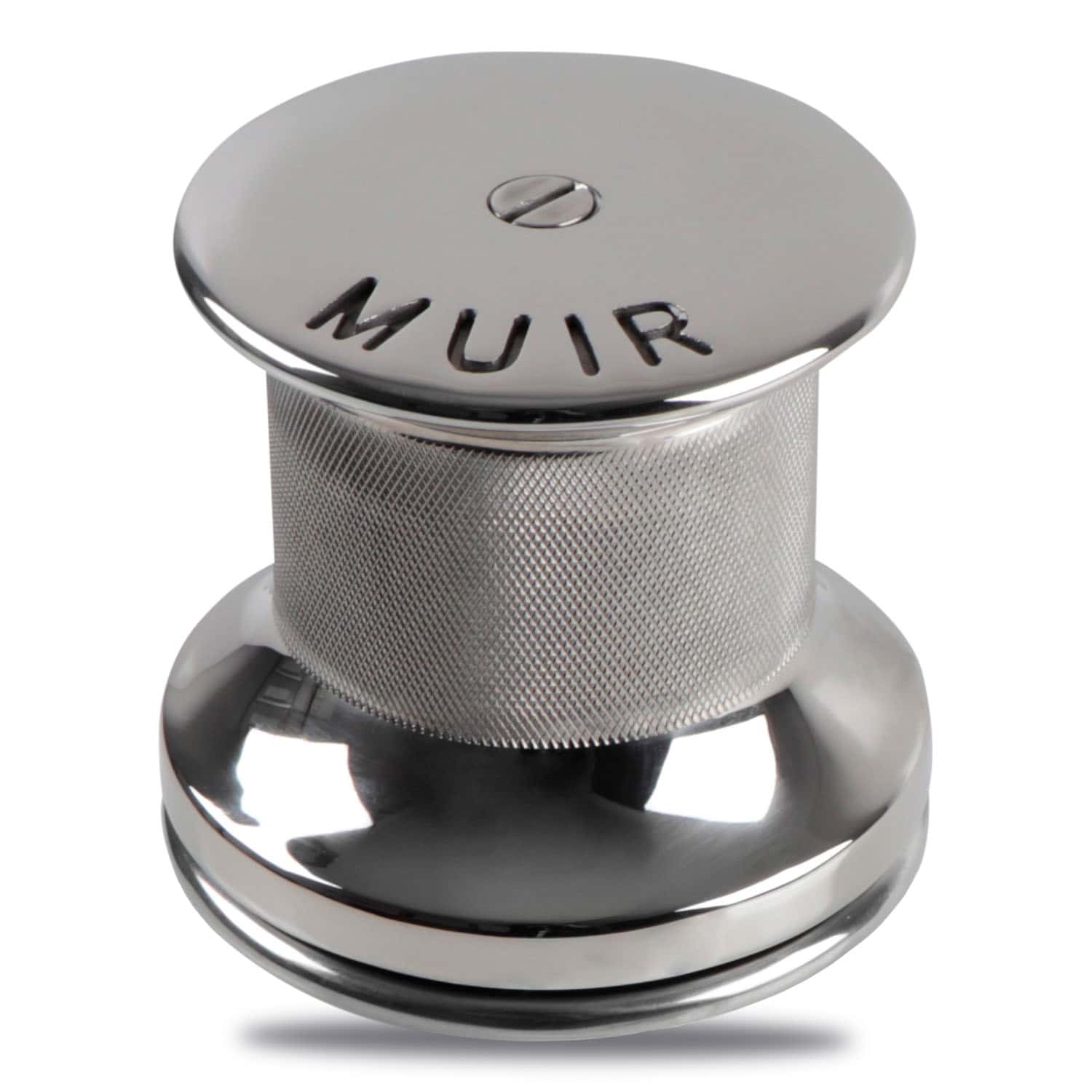

Muir VC500 Capstan | Vessels 5-9m (16 – 29ft).

This Muir VC500 capstan designed to suit vessels 5-9m (16 – 29ft) the Muir range of capstans provide reliable and heavy duty operation for mooring, warping and anchoring for all recreational and commercial applications. Efficient and quick they can be installed independently or as a complete system with windlasses. Manufactured to the highest quality standard, featuring heavy chrome and gear drive assembly. Accommodating varying deck thicknesses, they are popular for line hauling and fishing purposes. Available in 12 & 24 volt, Hydraulic & AC options.

Features

  • Deck hugging snag free design
  • Luxury chrome finish over marine grade bronze or 316 Stainless steel on some models
  • Knurled or Fluted Capstan Drum
  • Heavy duty dual direction motor in 12 & 24V, AC & Hydraulic
  • Stainless steel shaft
  • Stainless steel mounting bolts
  • Installation/Operation booklet
Technical Specifications
Name Specifications
Recommended Vessel Length (m) 5-9m
Recommended Vessel Length (ft) 16 – 29ft
Power Supply Options DC 12V
Recommended Muir Circuit Breaker 80A (12V)
Motor (Watts) 550Watts
Amps Workload 75A (12V)
Max Load 150Kg
Workload 50Kg
Max Line Speed 25m/min
Compatible Rope Sizes 10 mm (3/8″) – 12 mm (1/2″)
Auto Anchor Compatible No
Net Weight DC 9Kg
Manual Operation N/A
