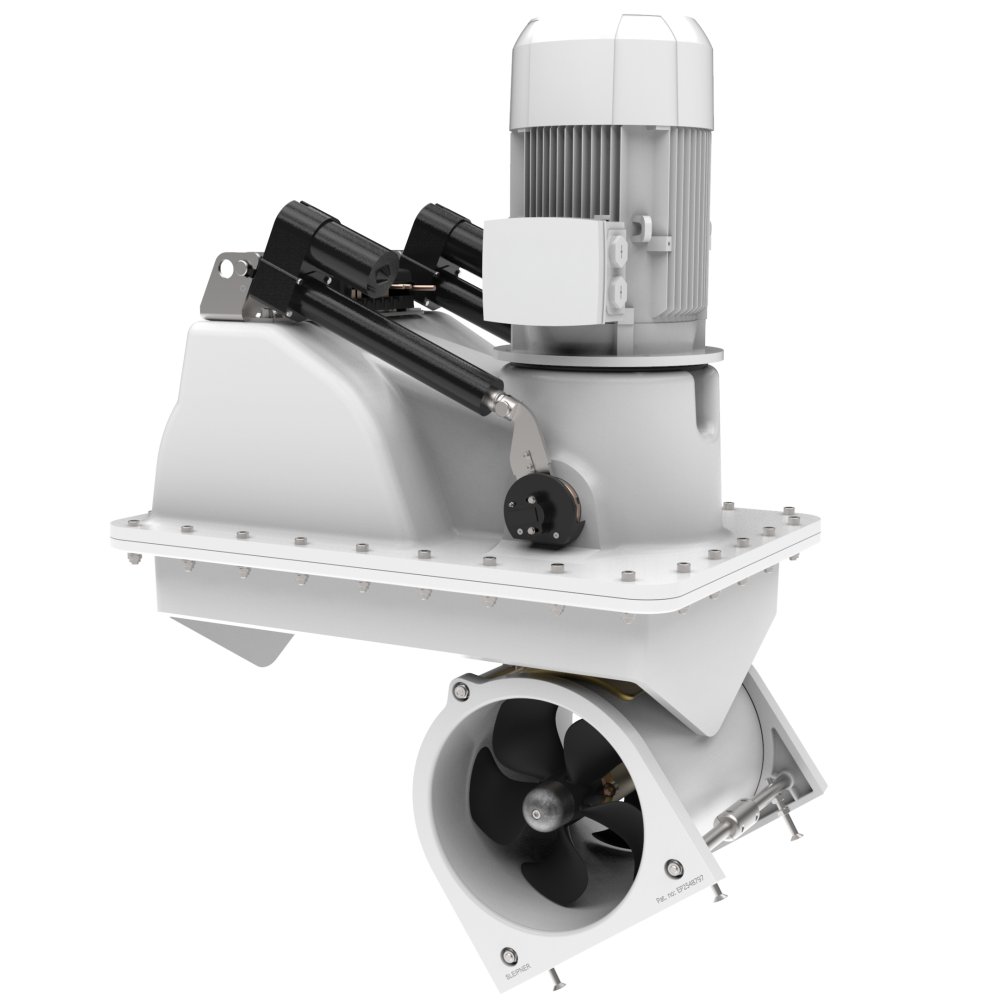

SRAC320 retract thruster Ø300mm 400V, low harmonic

SRAC320 retract thruster Ø300mm 400V, low harmonic

Call 954-577-2850 or Send Enquiry for Pricing

SRAC320 is a 400VAC sturdy retract thruster with 320 kg of thrust, suitable for boats between 72-110 feet/ 22-34 meters. It can be mounted as a bow or stern thruster.

The thruster is mounted on a flange and has a fast deployment and retraction time.

SKU: SRAC320/300TC-4L Categories: ,

Product Description

Properties

Q-PROP™

The Q-PROP™ has measured noise reductions of up to 75% in controlled environments. The five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust power.

  • The expected noise reduction in average installations: 20-40%
  • Upgrade kits are available for most Sleipner thruster models with special adaptors
⚙️ Main power
Power supply 400V AC
🧩 Features
Q-Propeller Yes
89-01_5bewHCv.png 89-01_5bewHCv.png
89-01_5bewHCv.png 89-01_5bewHCv.png
📏 Dimensions
(H) Height 453mm / 17in
(+H) Additional Height 225mm / 8in
(L) Length 843mm / 33in
(+L) Additional Length 746mm / 29in
(W) Width 580mm / 22in
(+W) Additional Width 483mm / 19in
(ID) Internal Diameter 300mm / 11in
(WD min.) Minimum Water Depth 390mm / 15in
(TL min.) Minimum Tunnel Length 415mm / 16in
(RD) Retract Depth 456mm / 17in
(RW) Retract Width 415mm / 16in
(MW) Mould Width 580mm / 22in
(ML) Mould Length 743mm / 29in
(MH) Mould Height 115mm / 4in
(HT) Hull Thickness 115mm / 4in
🔧 Installation capability
Bow Capability Yes
Stern Capability Yes
Retractable Capability Yes
⛵ Ideal vessel integration
Typical vessel size 22-34m / 72-111ft
What is the S-link control system?

S-link is a Sleipner CAN BUS based control system with full intelligent communication between all devices within the system, much like a computer network. It is used for all retract thrusters and Pro thrusters with a DC control system.

Main advantages include:

  • Round, compact and waterproof plugs with unique keying and color coding to avoid faulty hookups.
  • An unlimited number of commands or information transfer on a single cable.
  • It has user feedback to panel
  • Intelligent troubleshooting
