Vector Fins™ pair – for SPS100E Electric actuator
Call 954-577-2850 or Send Enquiry for Pricing
The V4-26HS Vector Fins™ offer unparalleled stabilization for high-speed yachts in the 36–45 meter range. Featuring Sleipner’s distinctive curved fin design, this model provides maximum roll reduction and lift generation, enhancing fuel efficiency and ensuring a smooth, controlled ride at speeds up to 40 knots.
Can be configured into a 4-fin setup, providing enhanced stability and superior performance for any journey.
The V4-26HS combines powerful stabilization with a compact actuator that integrates seamlessly into yacht layouts, preserving onboard space. For detailed actuator compatibility, please refer to the ‘compatible products’ tab below.
Product Description
Properties
VECTOR FINS™

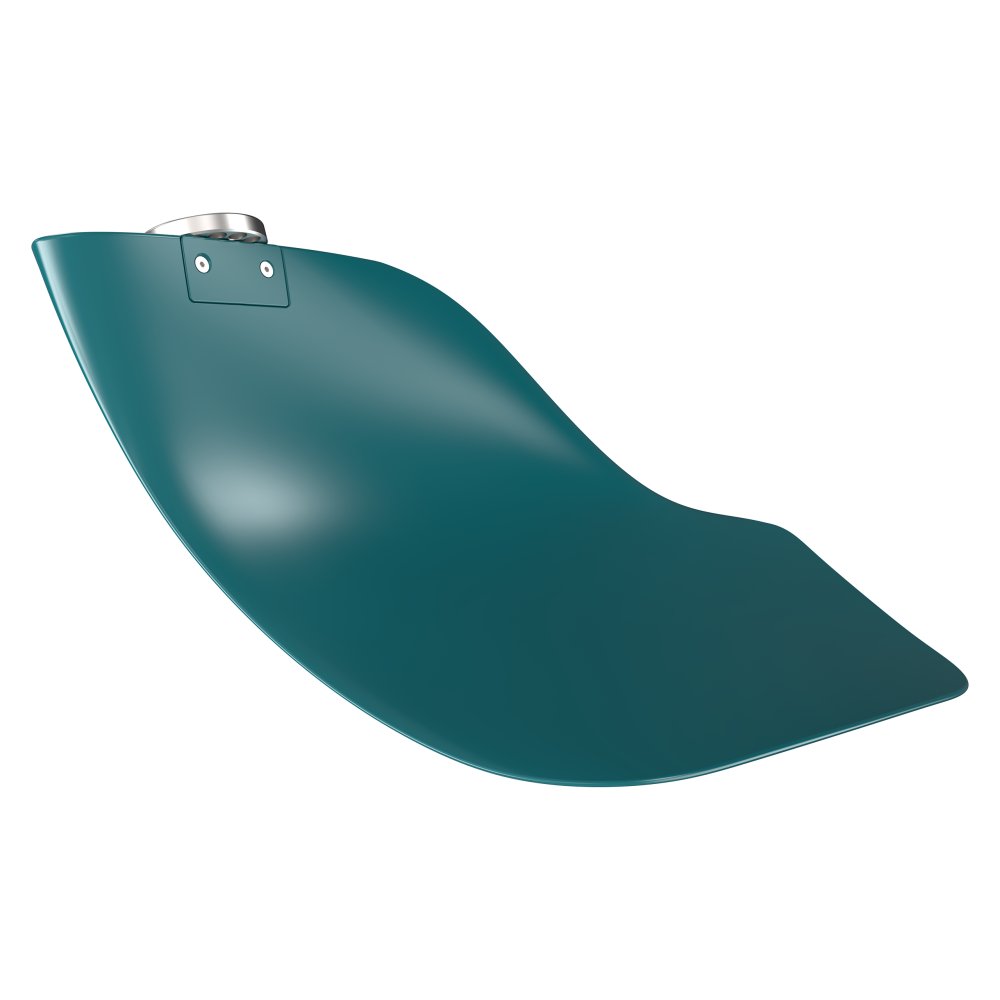

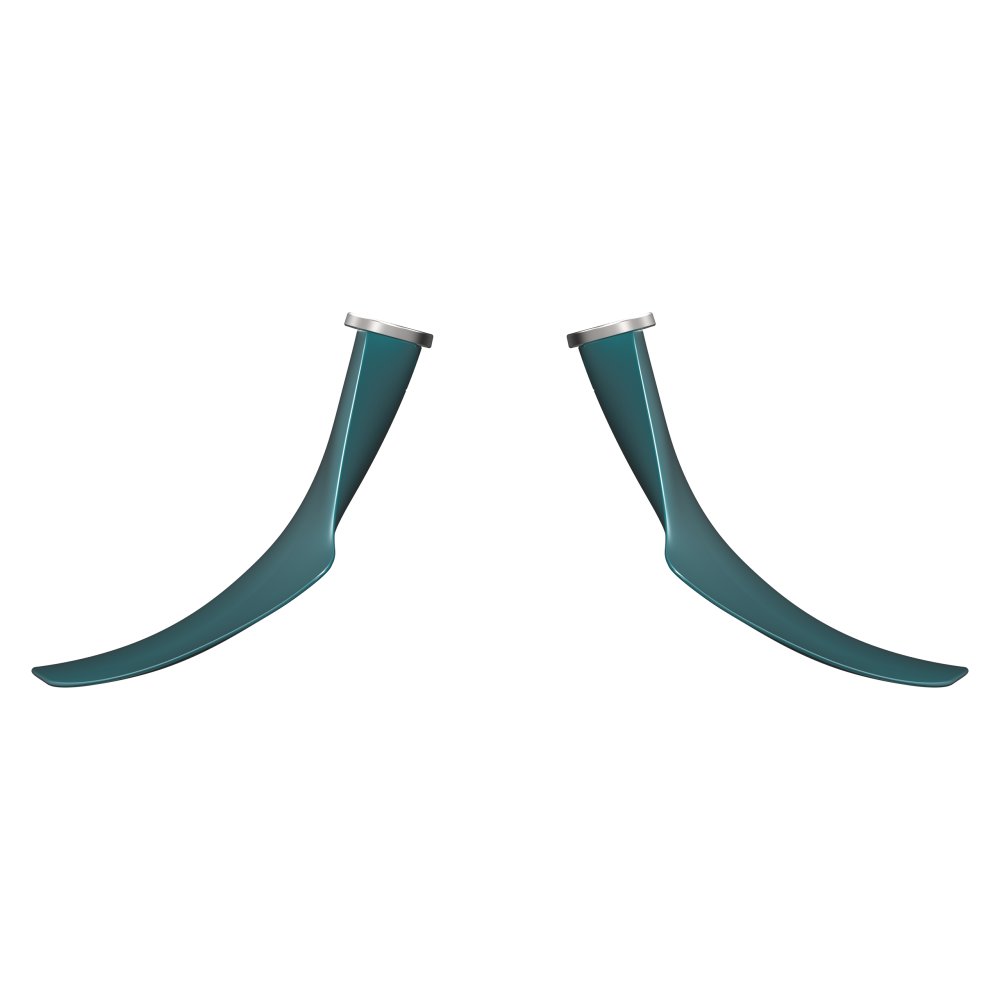

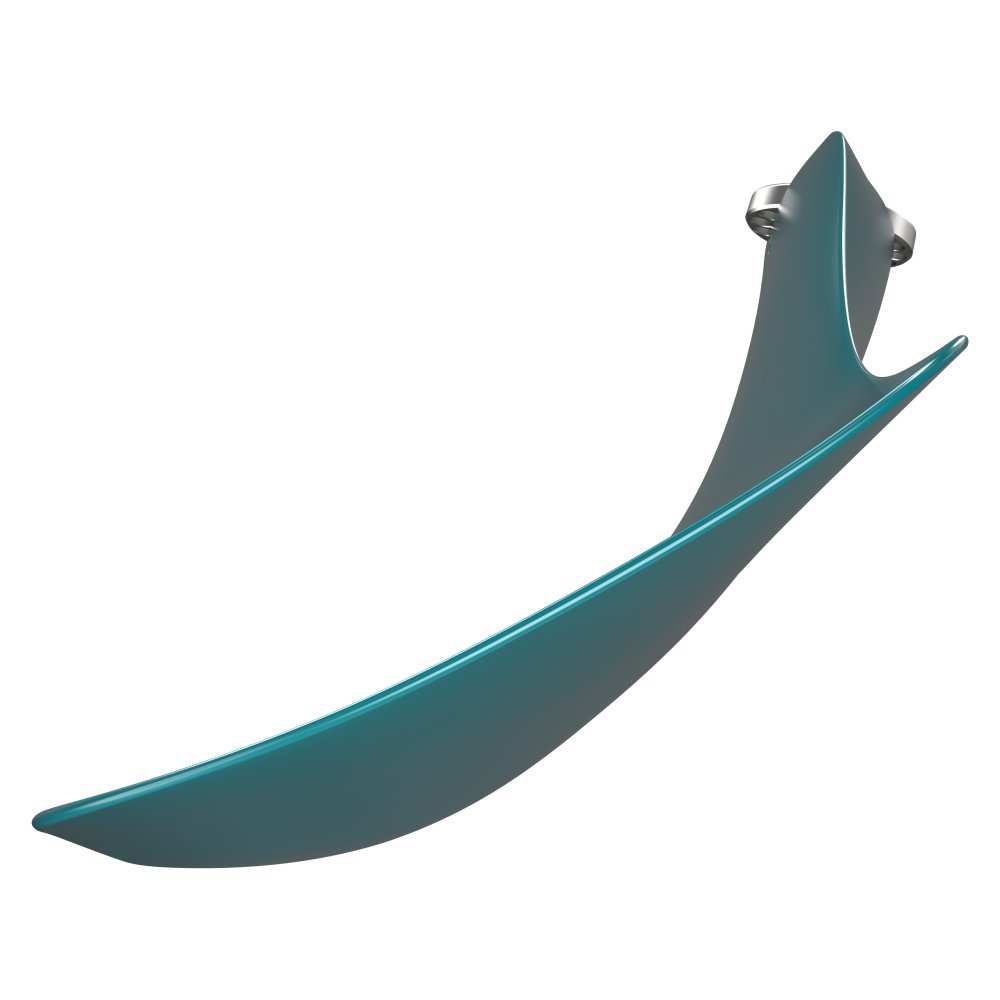

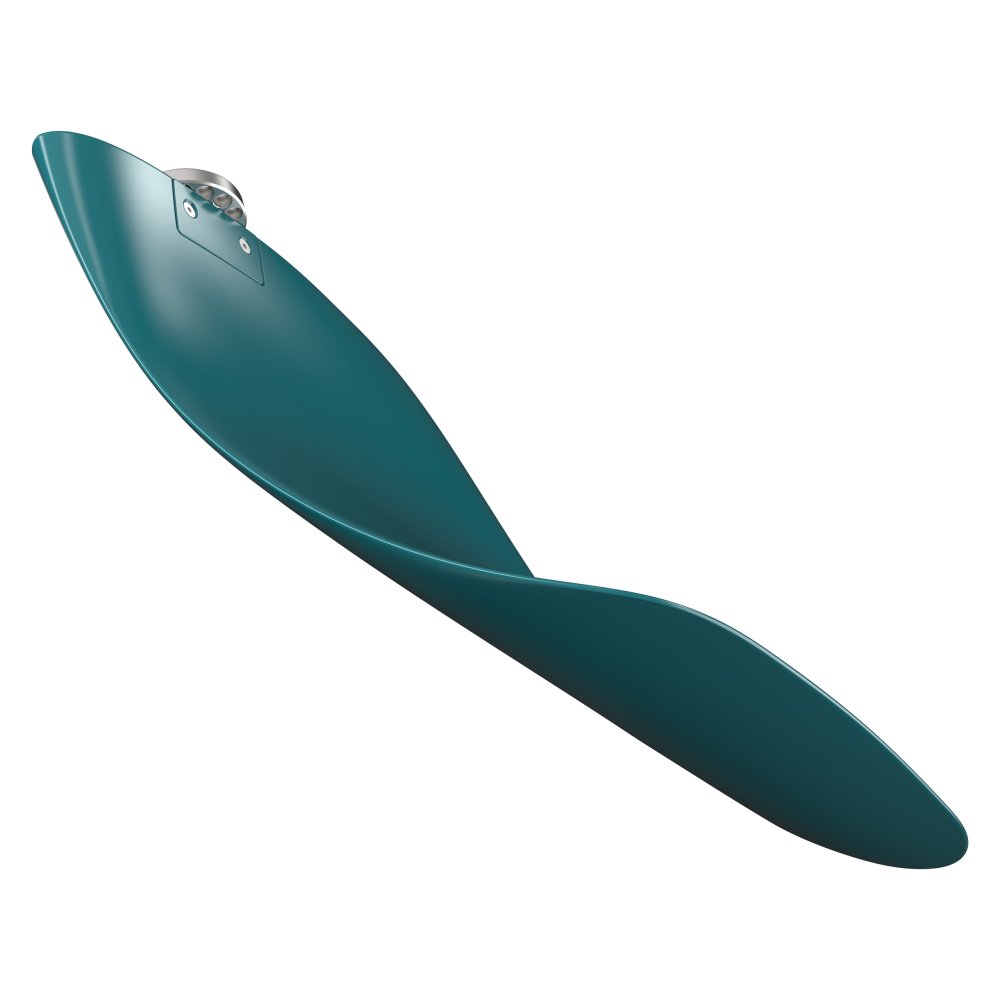

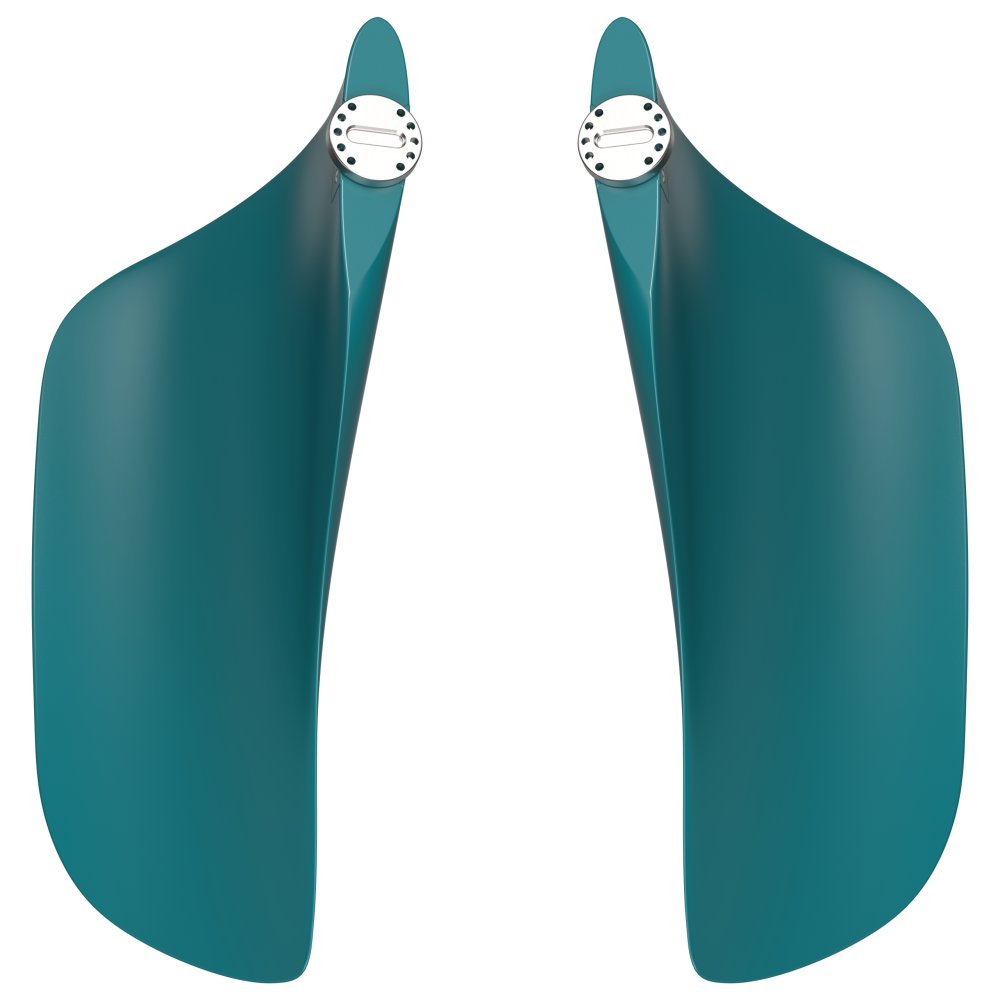

Vector Fins™ has a unique patented design that dramatically improves roll reduction while simultaneously reducing yaw and sway motions. Constructed with innovative layered vacuum injected vinyl ester compound covering pre-molded foam makes the Vector Fins™ lighter in weight than other fins on the market.
ANY SPEED
Vector Fins™ is the only top-performing stabilizer system for both cruising and at anchor use. The fins’ concave shape creates multilateral force direction improving the stationary positioning of a vessel while at anchor. The uniqueness of the design also becomes evident while underway as it improves in effectiveness as speed increases. Sea trials have proven that Vector Fins™ are up to 50% more efficient at anchor and capable of reducing the uncomfortable rolling motions of the vessel by up to 95% while cruising.
PATENTED DESIGN
Sleipner continually reinvests in developing and offering the latest technology in marine advancements. Patented products are revolutionary one-of-a-kind designs available and sold exclusively by Sleipner.
| Category | Feature / Specification | Value |
|---|---|---|
| Performance | Max Recommended Speed | 35 – 40 knots |
| Integration | Typical Vessel Size (4-fin) | 55-65m / 180-213ft |
| Typical Vessel Size (Standard) | 36-45m / 118-147ft | |
| Class | Typical Vessel Class | Motor boat, Commercial vessel |
| Finish | Product colour finish | White |
| Dimensions | (H) Height | 1172mm / 46in |
| (L) Length | 2328mm / 91in | |
| (W) Width | 686mm / 27in | |
| (+W) Additional Width | 833mm / 32in | |
| (a) | 1966″ | |
| Features | Patented Design | Yes |
| Vector Fin design | Yes | |
| Any Speed | Yes | |
| Industry leading efficiency | Yes | |
| 4-fin configuration available | Yes | |
| Construction | Vacuum injected vinylester |
