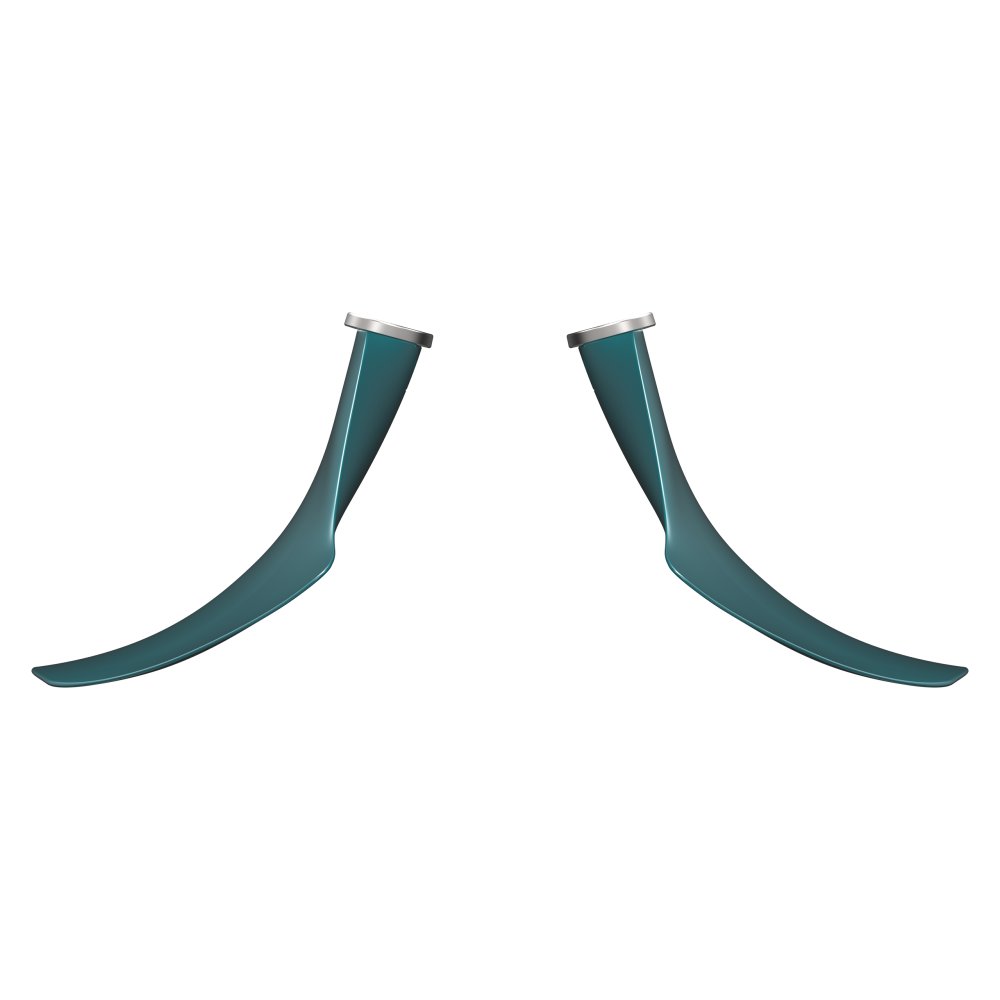

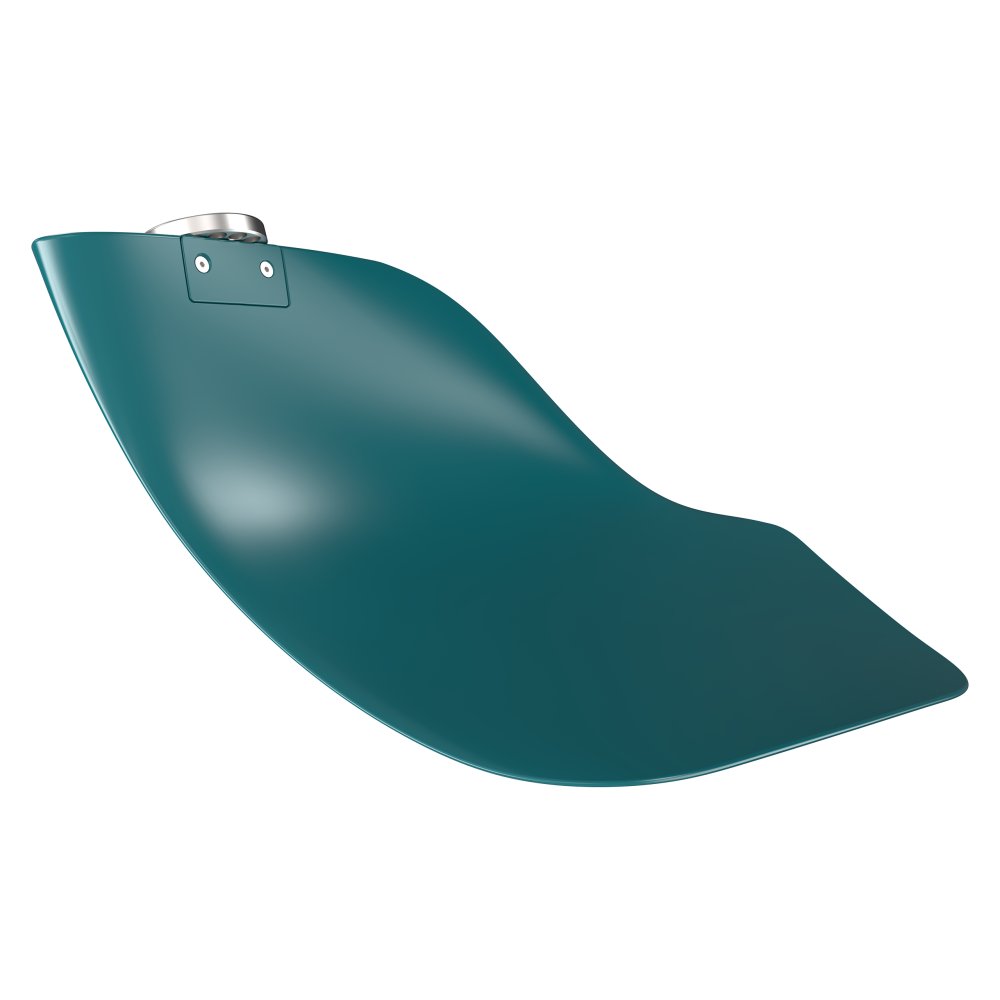

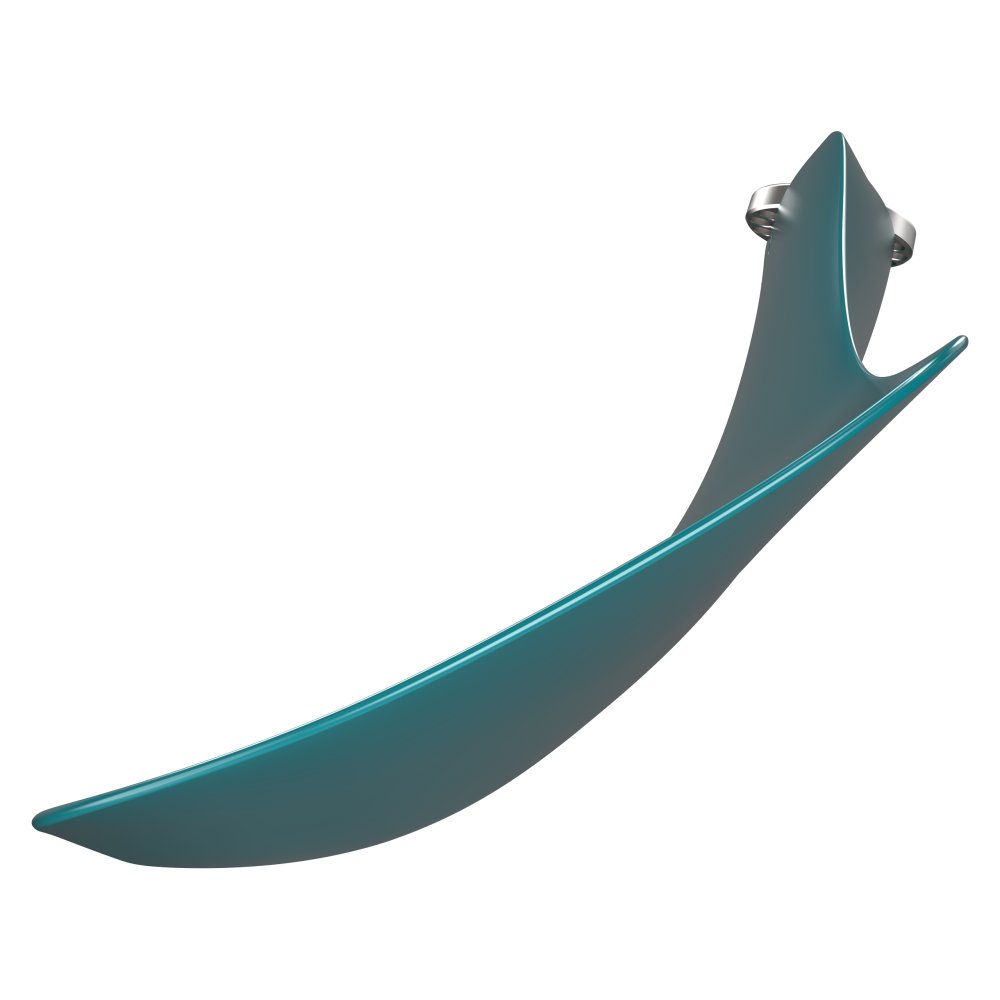

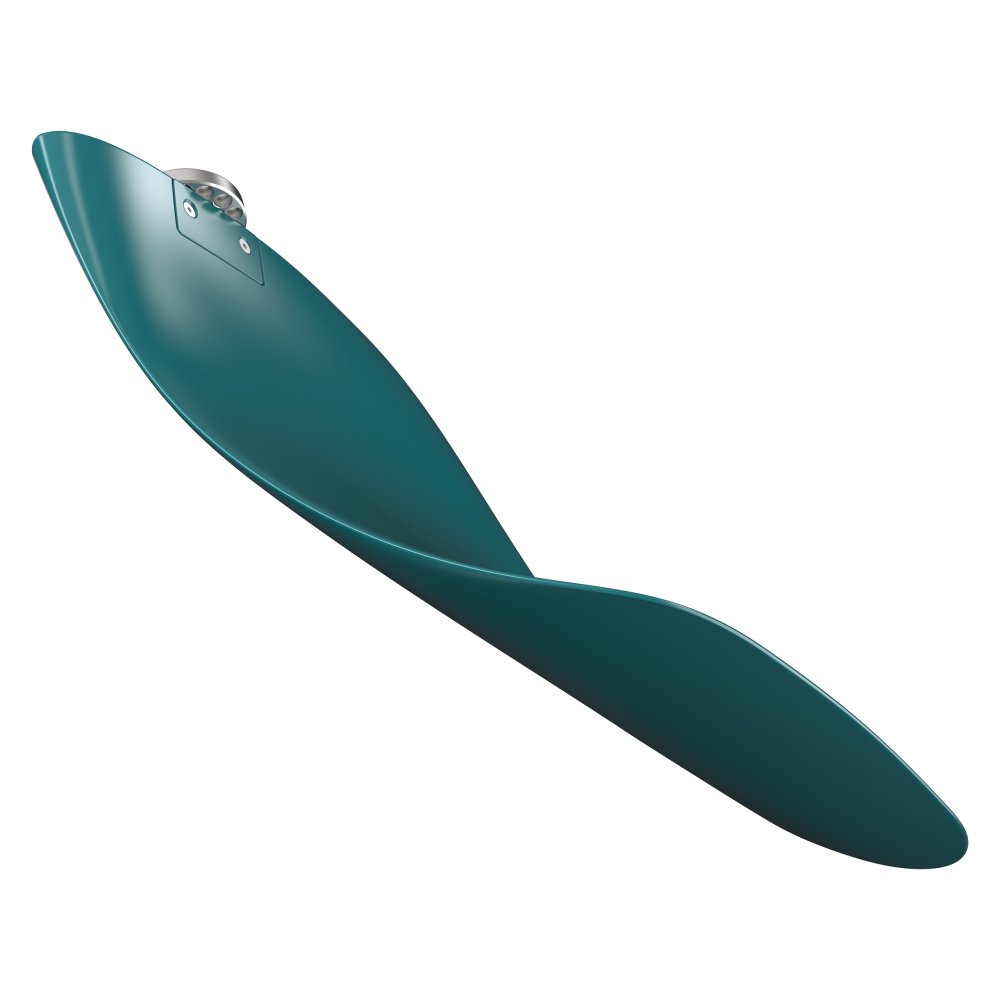

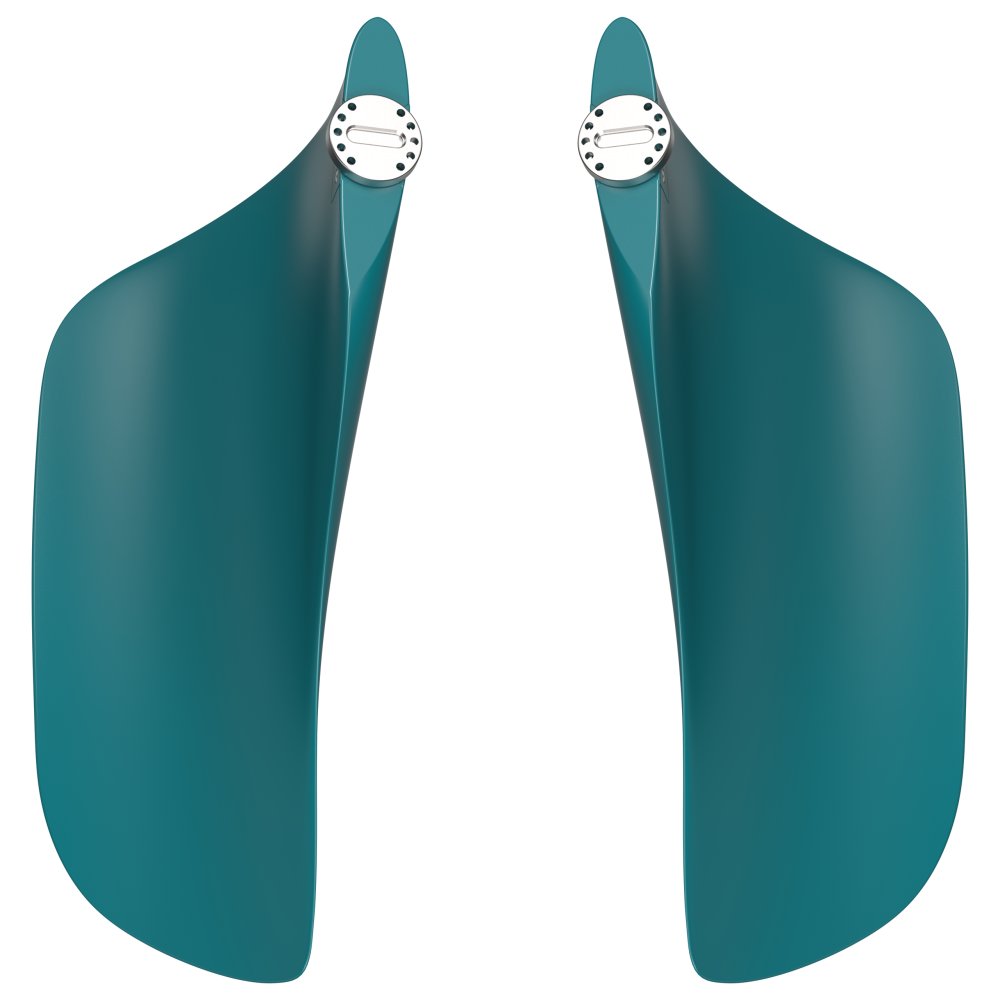

Vector Fins™ pair -for SPS40E Electric actuator
Call 954-577-2850 or Send Enquiry for Pricing
The V3-9 Vector Fins™ deliver unmatched stabilization for yachts with top speeds of up to 23 knots, designed to enhance comfort and efficiency in the 14-18 meter range. Perfect for mid-speed cruising, these fins combine a unique, curved fin profile with energy-saving lift, ensuring a smooth and steady ride. Whether navigating open waters or anchoring in place, the V3-9 provides reliable roll reduction, keeping onboard experiences calm and comfortable.
With its compact actuator, the V3-9 integrates seamlessly into the yacht structure, preserving space while maximizing stabilization. Ideal for medium-speed vessels, this version balances power and efficiency for refined cruising experiences. For detailed actuator compatibility, please refer to the ‘compatible products’ tab.
Can be configured into a 4-fin setup, providing enhanced stability and superior performance for any journey.
Product Description
Properties
VECTOR FINS™
Vector Fins™ has a unique patented design that dramatically improves roll reduction while simultaneously reducing yaw and sway motions. Constructed with innovative layered vacuum injected vinyl ester compound covering pre-molded foam makes the Vector Fins™ lighter in weight than other fins on the market.
ANY SPEED
Vector Fins™ is the only top-performing stabilizer system for both cruising and at anchor use. The fins’ concave shape creates multilateral force direction improving the stationary positioning of a vessel while at anchor. The uniqueness of the design also becomes evident while underway as it improves in effectiveness as speed increases. Sea trials have proven that Vector Fins™ are up to 50% more efficient at anchor and capable of reducing the uncomfortable rolling motions of the vessel by up to 95% while cruising.
PATENTED DESIGN
Sleipner continually reinvests in developing and offering the latest technology in marine advancements. Patented products are revolutionary one-of-a-kind designs available and sold exclusively by Sleipner.
| Category | Feature / Specification | Value |
|---|---|---|
| Performance | Max Recommended Speed | Up to 23 knots |
| Weight | Net Weight | 40kg / 88lbs |
| Construction | Material | Vacuum injected vinylester |
| Integration | Typical Vessel Size (4-fin) | 18-26m / 59-85ft |
| Typical Vessel Size (Standard) | 14-18m / 45-59ft | |
| Class | Typical Vessel Class | Motor boat, Commercial vessel |
| Finish | Product colour finish | White |
| Dimensions | (H) Height | 690mm / 27in |
| (L) Length | 1433mm / 56in | |
| (W) Width | 426mm / 16in | |
| (+W) Additional Width | 501mm / 19in | |
| (a) | 1220″ | |
| Features | Patented Design | Yes |
| Vector Fin design | Yes | |
| Any Speed | Yes | |
| Industry leading efficiency | Yes | |
| 4-fin configuration available | Yes |
