Arid Bilge Systems Series 4 – Choose 4 to 8 Intakes

Call 954-577-2850 or Send Enquiry for Pricing

Arid Bilge is a central vacuum system that automatically and effortlessly maintains bilge compartments throughout the vessel 100% dusty dry.

Thank You for your interest!

SKU: N/A Category: Tag:

Description

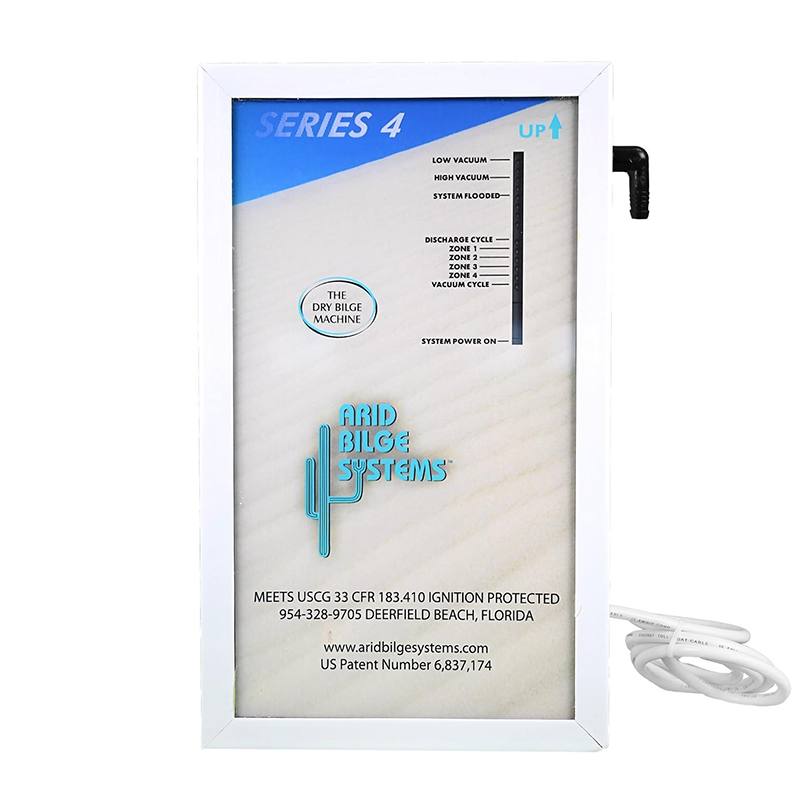

Arid Bilge Series 4
Available with 4 to 8 independently controlled intake ports
Arid Bilge is automatic, reliable, flexible, and best of all, it really works.

-Eliminate the #1 source of on board odors
-Lower on board humidity and prevent condensation damage
-Find small leaks that now leave trails through a dry bilge
-Stop mold and mildew before it starts to grow
-Enhance the vessel’s resale value
-Optional USCG approved 15ppm oily water monitored systems available

You will notice the Arid Bilge difference within 24 hours of installation.

Click Here to Installation Manuals



Additional information

Weight 20 lbs
Dimensions 18 × 12 × 12 in
Height

15 inches / 38 centimeters

Box width

9 inches / 23 centimeters

Depth

7.5 inches / 19 centimeters

Box dry weight

15 pounds / 7 kilograms base unit

Intake tubing

3/16” Polyethylene tubing 200 feet for 4 zone, 100 feet for 5 & 6 zone, 200 feet for 7 & 8 zone

Unit Maximum Expected Flow Rate

11 US gallons / 39 liters per hour

Power

Choose 12 volt DC or 24 volt DC version

Power draw

0.09 amp (90 milliamps) average standby draw, 0.8 amps average run draw at 12 volt DC with one active zone

Certifications

This unit meets USCG 33CFR 183.410 ignition protection

Intake ports

3/16” Alkon push lock with solenoid valves, soft expandable tubing for pinch valves

Discharge port

1/2" barbed fitting

Control

PLC Direct Logic 05 Koyo D0-05 processor, software proprietary.

Compressor / vacuum pump

Schwarzer Precision

Main unit material

Air injected white PVC plastic

Limited warranty

One year parts and labor.

Face

Clear Lexan with back surface applied graphics with LED indicator lights

Pickups

Recommended selection, Custom selection
