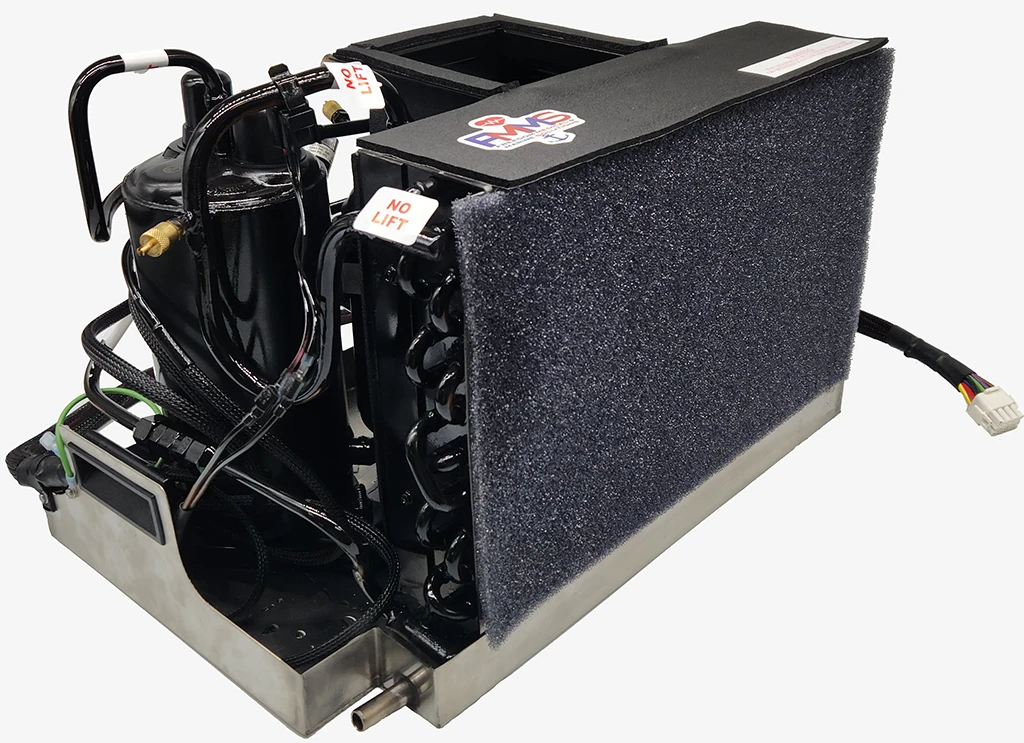

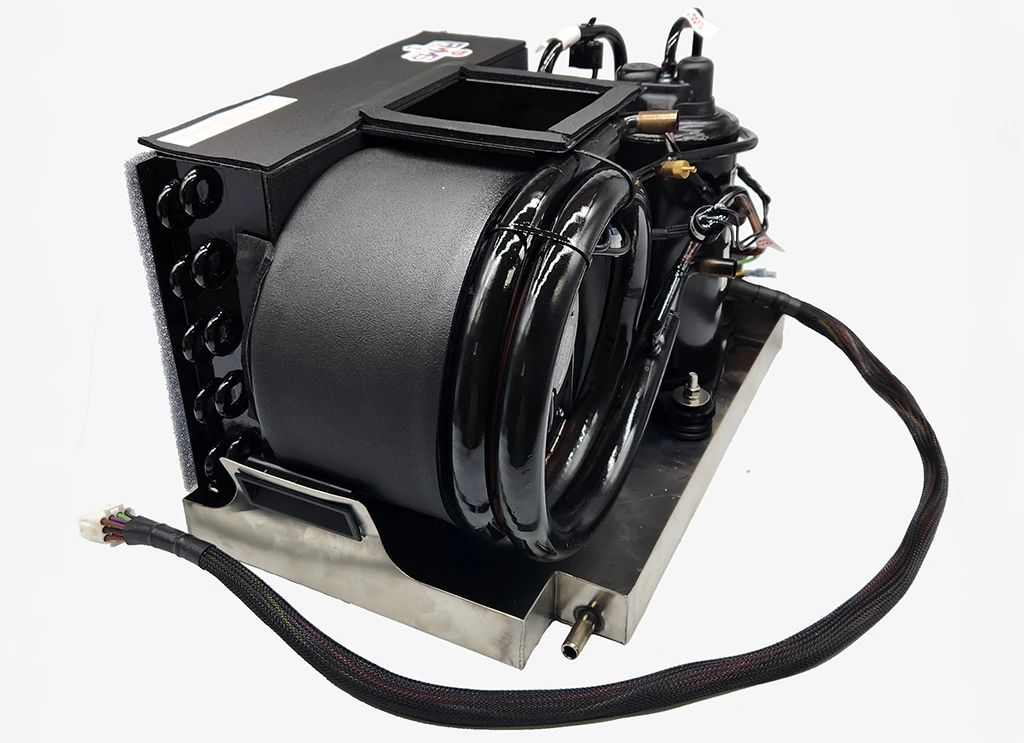

FMS M12 Air Conditioner

Call 954-577-2850 or Send Enquiry for Pricing

Category:

Product Description

About 12,000 BTU Air Conditioner System:

With the cooling capacity of 12,000 BTUs, this unit is ideal for up to 850 Cubic feet of conditioned space. Equipped with a variable speed and high velocity fan, the unit is available in right, left or top air discharge configurations and comes with a 6” duct collar. This allows the unit to operate with one 6” duct or several 4” ducts using a splitter. It is available as a cool only or reverse cycle heat unit. With the help of a soft start this unit can run on a 2,000 watt generator (4,000 watt peak) or a properly sized inverter.

Power Consumption
Cool = 10 amps
Heating = 12 amps
Max Starting amps: 46

Blower CFM: Up to 500
Cooling capacity: 850 cu ft

Recommended inverter size: 4000 watts peak

Available in 110v or 220v

Dimensions
L-13″ W-20″ H-13.75″

Weight: 58 lbs

12,000 BTU Brochure

A/C Schematics

Install Guide

Mermaid Catalog
