FMS M16 Air Conditioner

Call 954-577-2850 or Send Enquiry for Pricing

Category:

Product Description

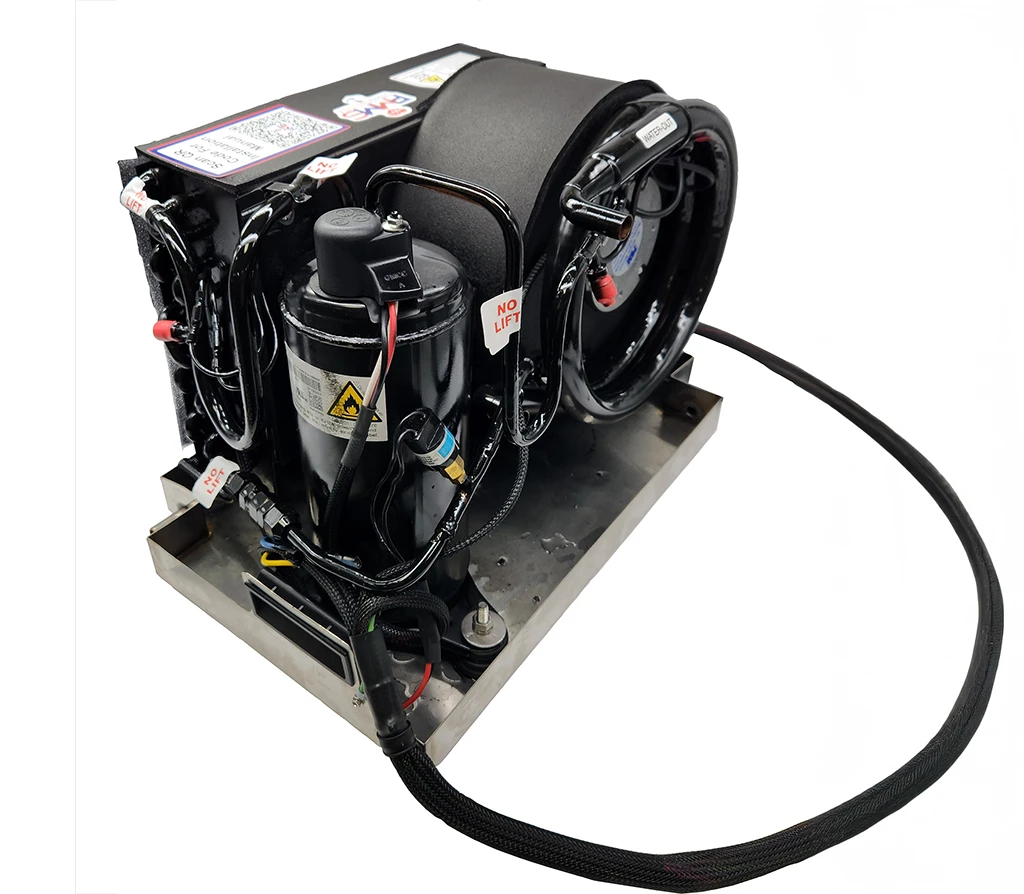

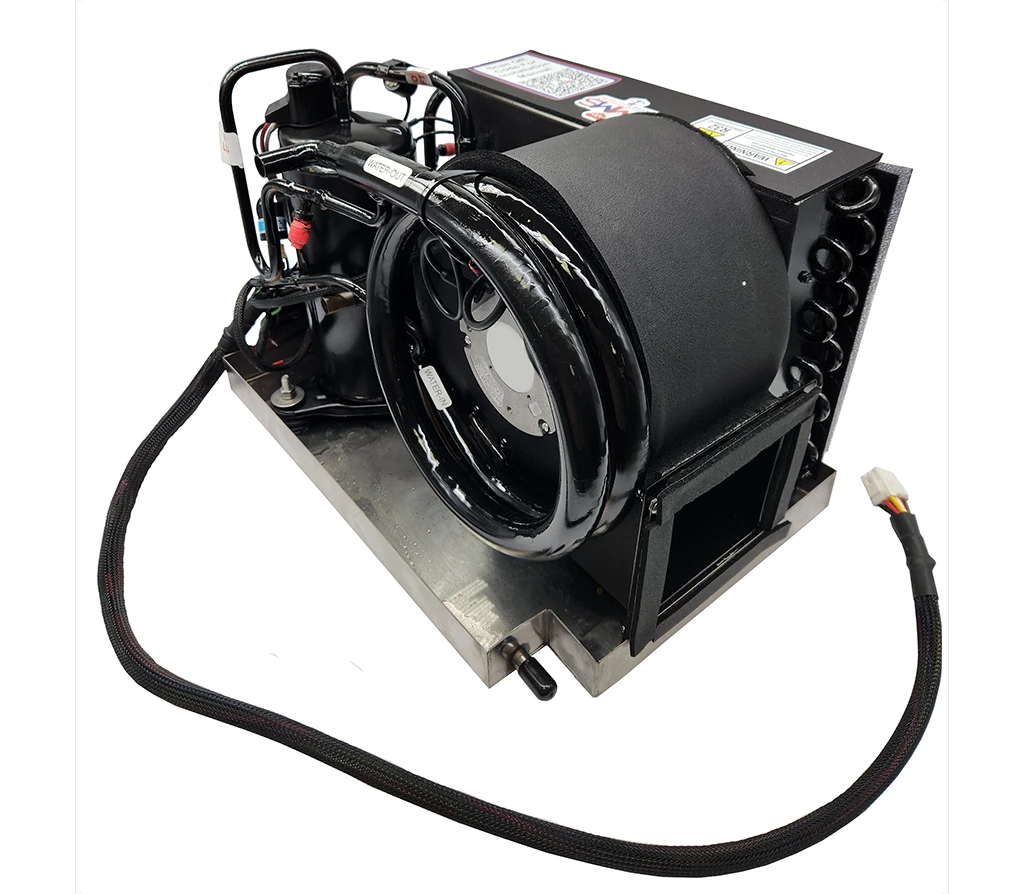

About 16,500 BTU Air Conditioner System:

With the cooling capacity of 16,500 BTUs, this unit is ideal up to 1,200 Cubic feet of conditioned space. Equipped with a variable speed and high velocity fan, the unit is available in right, left or top air discharge configurations and comes with a 6” duct collar. This allows the unit to operate with one 6” duct or several 4” ducts using a splitter. It is available as a cool only or reverse cycle heat unit. With the help of a soft start this unit can run on a 2,000 watt generator (4,000 watt peak) or a properly sized inverter.

Power Consumption
Cool = 13 amps
Heating = 15 amps
Max Starting amps: 50

Blower CFM: Up to 500
Cooling capacity: 1,200 cu ft

Recommended inverter size: 4000 watts peak

Available in 110v or 220v

Dimensions
L-13″ W-20″ H-13.75″

Weight: 58 lbs
