Dual Temp Vertical
Call 954-577-2850 or Send Enquiry for Pricing
Product Description

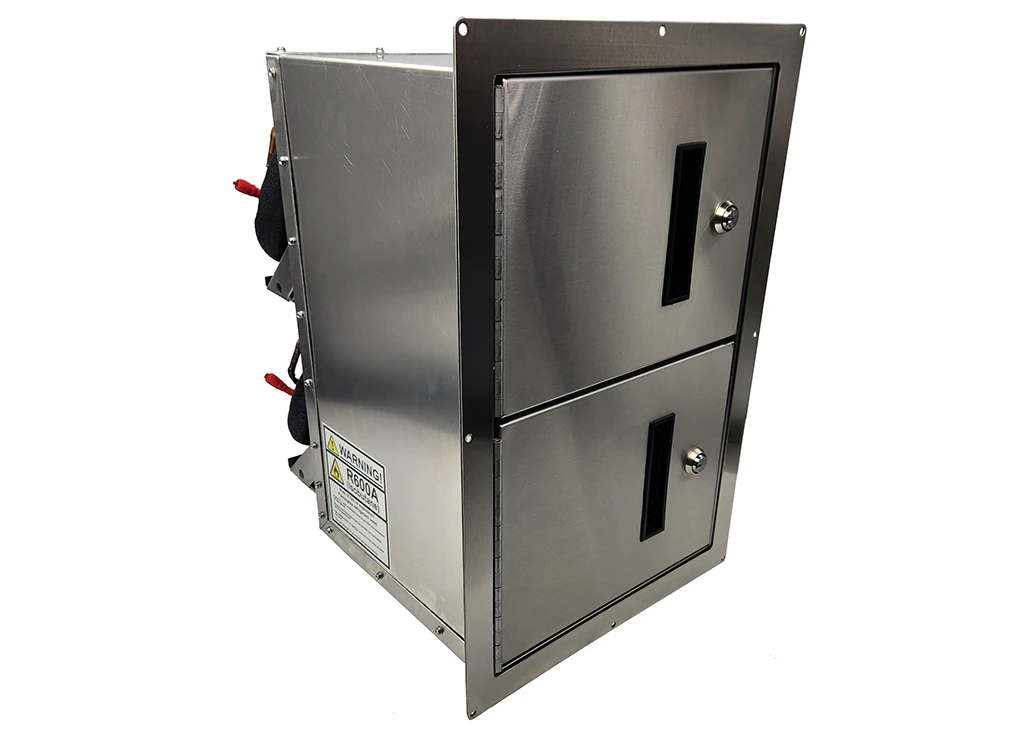

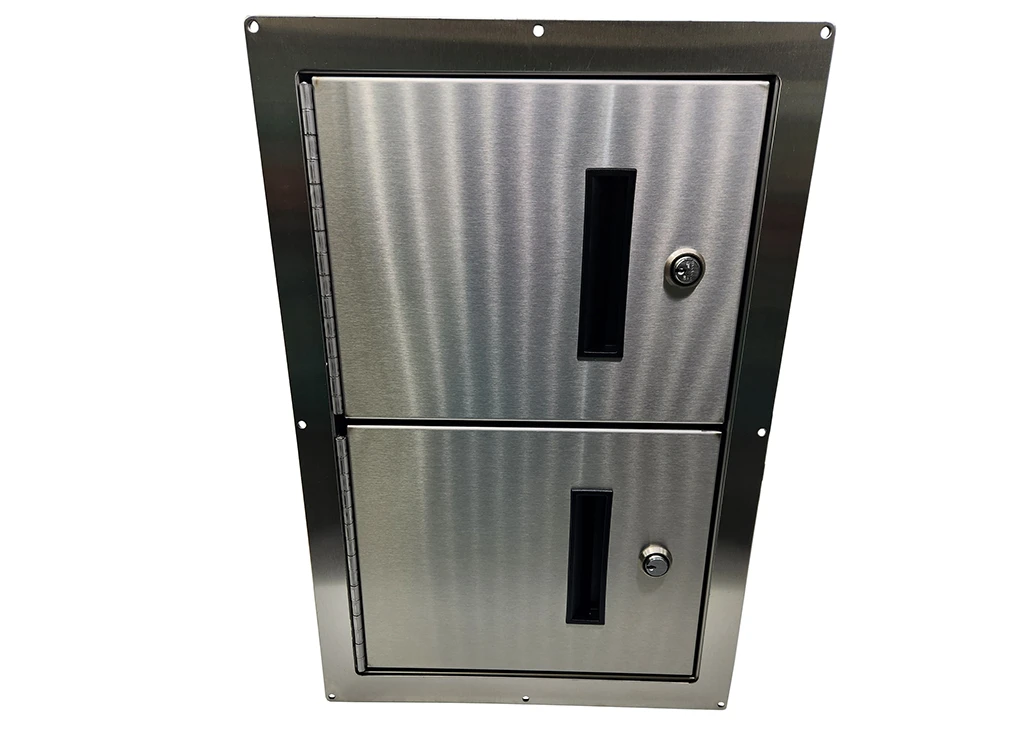

About the Medi-Kool Dual Temp Vertical (Micro & Saline Depth)

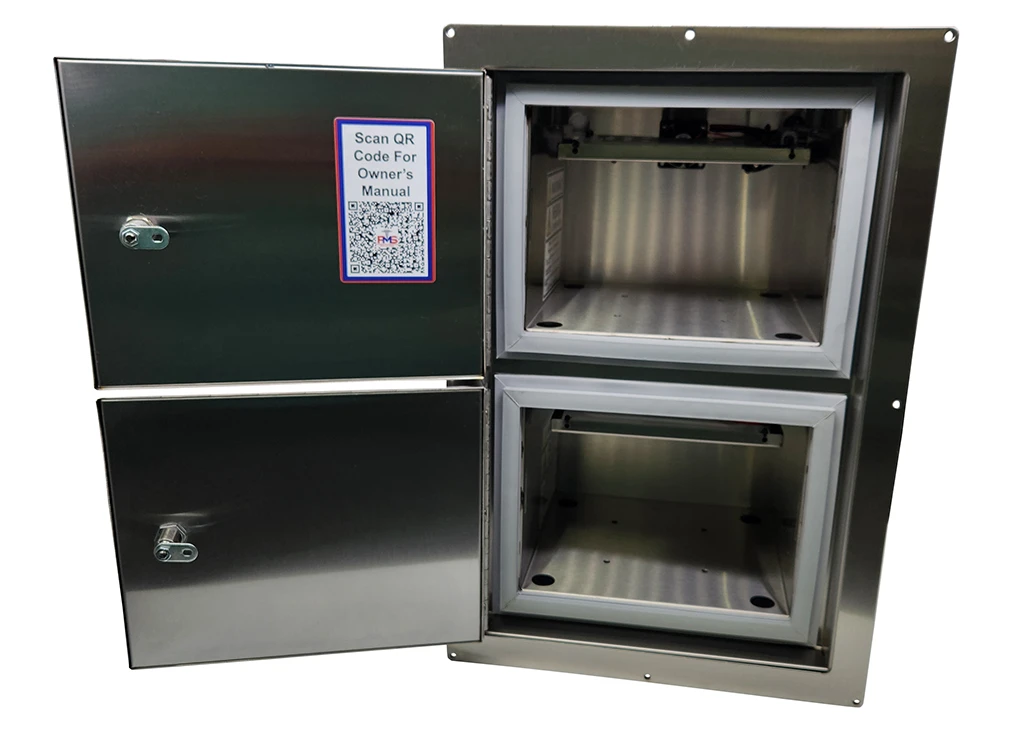

A single unit with two separate sections. Both sections can be set at two separate temperatures, meaning one can cool while the other heats.

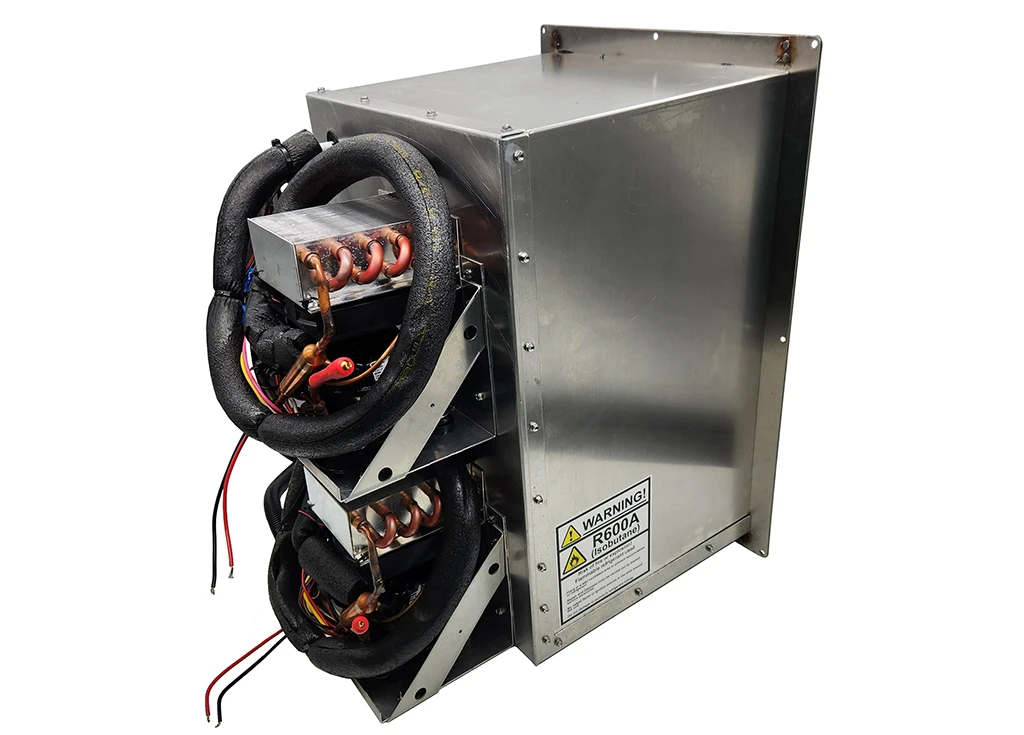

Compressors can be mounted to the rear,right, or left of the unit.Please call for alternative compressor options. Door can be hinged right, left or a combination of both.
This cabinet requires 2 separate 12 v sources due to one compressor for each side. The compressors cannot be wired together and come from one 12 v source, this will result in failure.
All Medi-Kool units come with our standard lock & key
Each unit can range in temperature from 32°F – 110°F with our standard control board.
Running Amperage
Startup = 10 amps
Running = 5.8 amps
Dimensions*
MK DUAL TEMP /V MICRO DEPTH
Internal: (Each Bay)
10″ Wide x 9 7/8″ Deep x 5 3/4″ High
Cutout Dimensions:
13.09″ Wide x 12.625″ Deep x 20.525″ High
MK DUAL TEMP /V SALINE DEPTH
Internal: (Each Bay)
10″ Wide x 15 7/8″ Deep x 5 3/4″ High
Cutout Dimensions:
13.09″ Wide x 18.625″ Deep x 20.525″ High
Important
Airflow Requirements: 100 CFM or better
Vent fan requires its own 12v source .
*Dimensions do not include compressor. Compressor Dimensions: 13″ Wide x 7″ Deep x 7 1/2″ High. Please be sure to include compressor dimensions when measuring for install.
