Medi-Kool Micro/H
Medi-Kool Micro/H - Image 2

Medi-Kool Micro/H

Call 954-577-2850 or Send Enquiry for Pricing

Category:

Product Description

About the Medi-Kool Micro/H (Micro & Saline Depth)

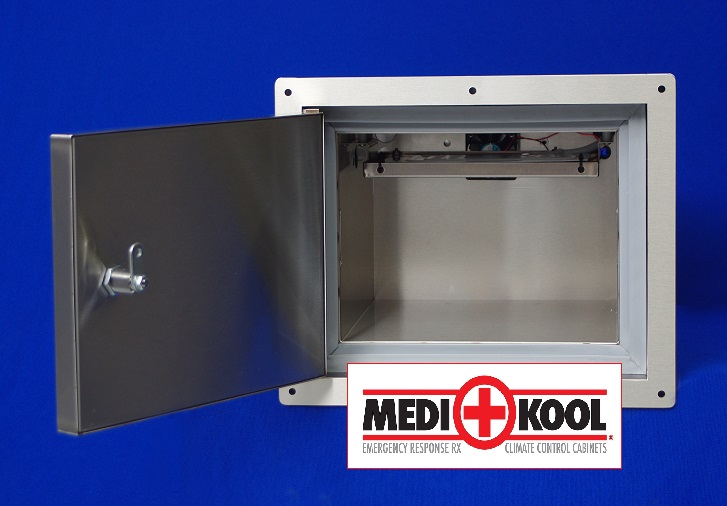

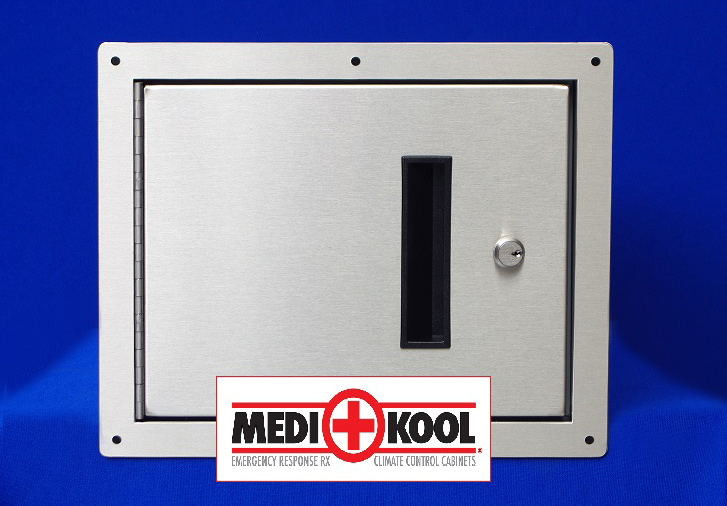

The smallest, most efficient refrigeration unit available. This unit comes with two different depth options (see measurements below). Compressor can be mounted to the rear, right , left or top of the unit. Door can be hinged right or left.

All Medi-Kool units come with our standard lock & key. Each unit can range in temperature from 32°F – 110°F with our standard control board.

Running Amperage
Startup = 10 amps
Running = 5.8 amps

Dimensions*
MK Micro/H Depth:
Internal:
10″ Wide x 9 7/8″Deep x 5 3/4″ High
Cutout Dimensions:
12.65″ Wide x 12.50″ Deep x 10.15″ High

MK Micro/H Saline:
Internal:
10″ Wide x 15 7/8″ Deep x 5 3/4″ High
Cutout Dimensions:
12.65″ Wide x 18.625″ Deep x 10.15″ High

Important
All units come with a 1.25″ Flange surrounding the cabinet. This flange is NOT included in the Cutout Dimensions.

Please cut the hole according to the Cutout Dimensions, and remember a 1.25″ Flange surrounds the entire cabinet to mount cabinet into the wall.

Medi-Kool Install Guide
