Medi-Kool Micro/V
Call 954-577-2850 or Send Enquiry for Pricing
Product Description

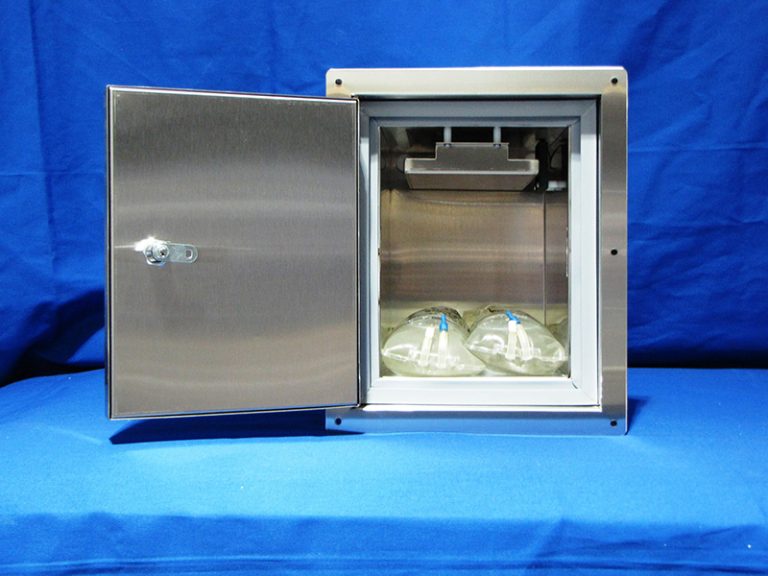

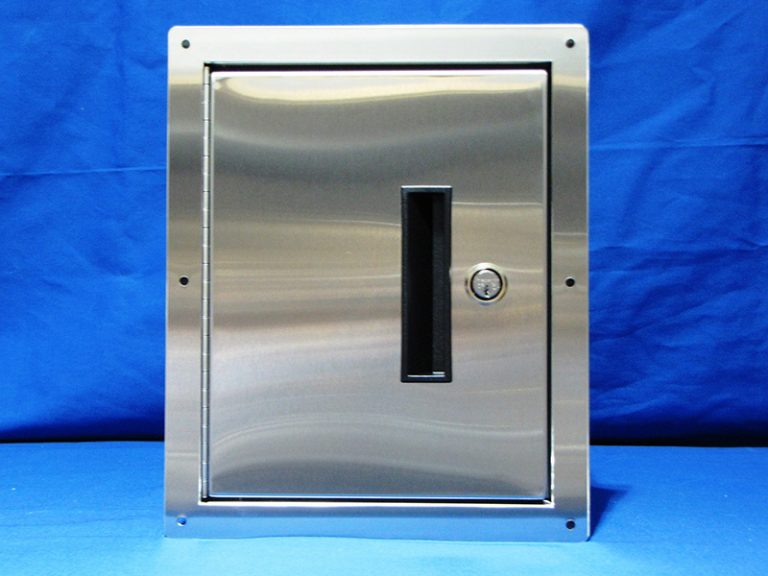

About the Medi-Kool Micro/V (Micro & Saline Depth)
Closely related to our MK-Micro/H unit, the difference is that this cabinet is assembled on its side for different dimension requirements.
This unit comes with two different depth options
(see measurements below).
Compressor can be mounted to the rear, right, left, or the top of the unit. Door can be hinged right or left.
All Medi-Kool units come with our standard lock & key.
Each unit can range in temperature from 32°F – 110°F with our standard control board.
Running Amperage
Startup = 10 amps
Running = 5.8 amps
Dimensions*
MK MICRO /V MICRO DEPTH:
Internal:
7 1/2″ Wide x 9 7/8″ Deep x 8 1/2″ High
Cutout Dimensions:
10.15″ Wide x 12.50″ Deep x 12.65″ High
MK MICRO /V SALINE DEPTH
Internal:
7 1/2″ Wide x 15 7/8″ Deep x 8 1/2″ High
Cutout Dimensions:
10.15″ Wide x 18.625″ Deep x 12.65″ High
Important
Airflow Requirements: 100 CFM or better
Vent fan requires its own 12v source .
*Dimensions do not include compressor. Compressor Dimensions: 13″ Wide x 7″ Deep x 7 1/2″ High. Please be sure to include compressor dimensions when measuring for install.
