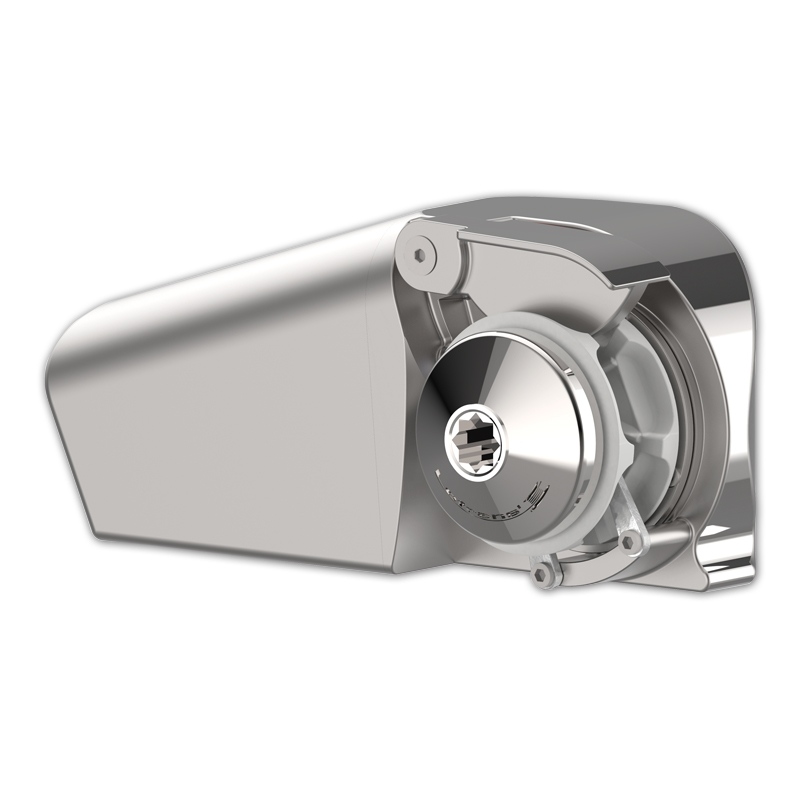

Razza, 12v/800w, 1/4"HT Rope/Chain Gypsy, AISI 3126L Stainless Steel

Razza, 12v/800w, 1/4″HT Rope/Chain Gypsy, AISI 3126L Stainless Steel

Call 954-577-2850 or Send Enquiry for Pricing

The Razza 12V 800W Horizontal Windlass is a premium stainless steel anchoring system designed for boats 25–40 ft, offering powerful, reliable rope and chain handling with smooth operation and durable marine-grade construction.

  • Premium AISI 316L stainless steel horizontal windlass construction
  • 12V 800W motor with oil-bath right-angle worm drive gearbox
  • Compatible with 1/4″ HT rope/chain gypsy for versatile anchoring
  • Includes RCMS, watertight solenoid box, helm switch, and clutch handle
  • Designed for boats 25–40 ft with IP67 motor protection for harsh marine conditions
Category:

Description

Overview

Premiuim 316L Stainless Steel Horizontal windlass featuring a powerful right angle drive oil-bath reduction gear system for years of troublle free operation

Comes complete with RCMS, Watertight Solenoid Control Box, Helm Switch and Clutch Handle

Features

  • Marine AISI 316L Grade Stainless Steel Construction
  • Manual Release Clutch System
  • Spring Loaded Stainless Rope/Chain Management
  • IP67 Motor Cover
  • Automatic Free Fall available as an option

Specifications

Name Description
Manufacturers Part No 600136
Motor Wattage 800W
Working Load 275 lbs (125 kg)
Version Horizontal Electric
Finish Stainless Steel
Gearbox Stainless Worm Drive
Standard Equipment RCMS, Watertight Solenoid Box, Helm Switch & Clutch Handle
Mainshaft Stainless
Max Retrieval Speed (ft/min) 80
Retrieval Speed @ Working Load 65 ft/min (20 m/min)
Approximate Boat Size 25 – 40 ft.
Amperes @ Working Load 80
Manual Override System No
Approximate Ship Weight (lbs) 26
