DFF 08
Call 954-577-2850 or Send Enquiry for Pricing
Product Description

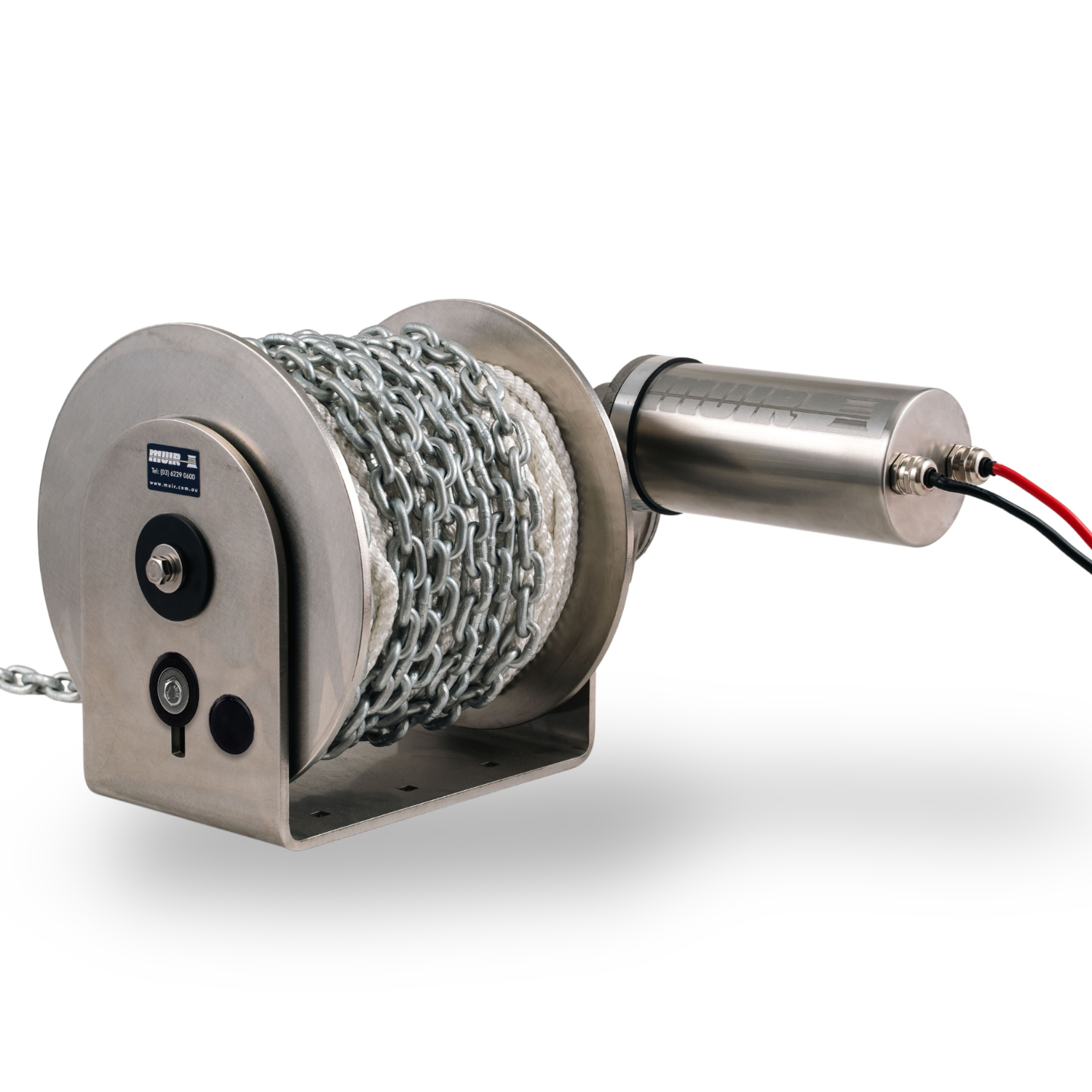

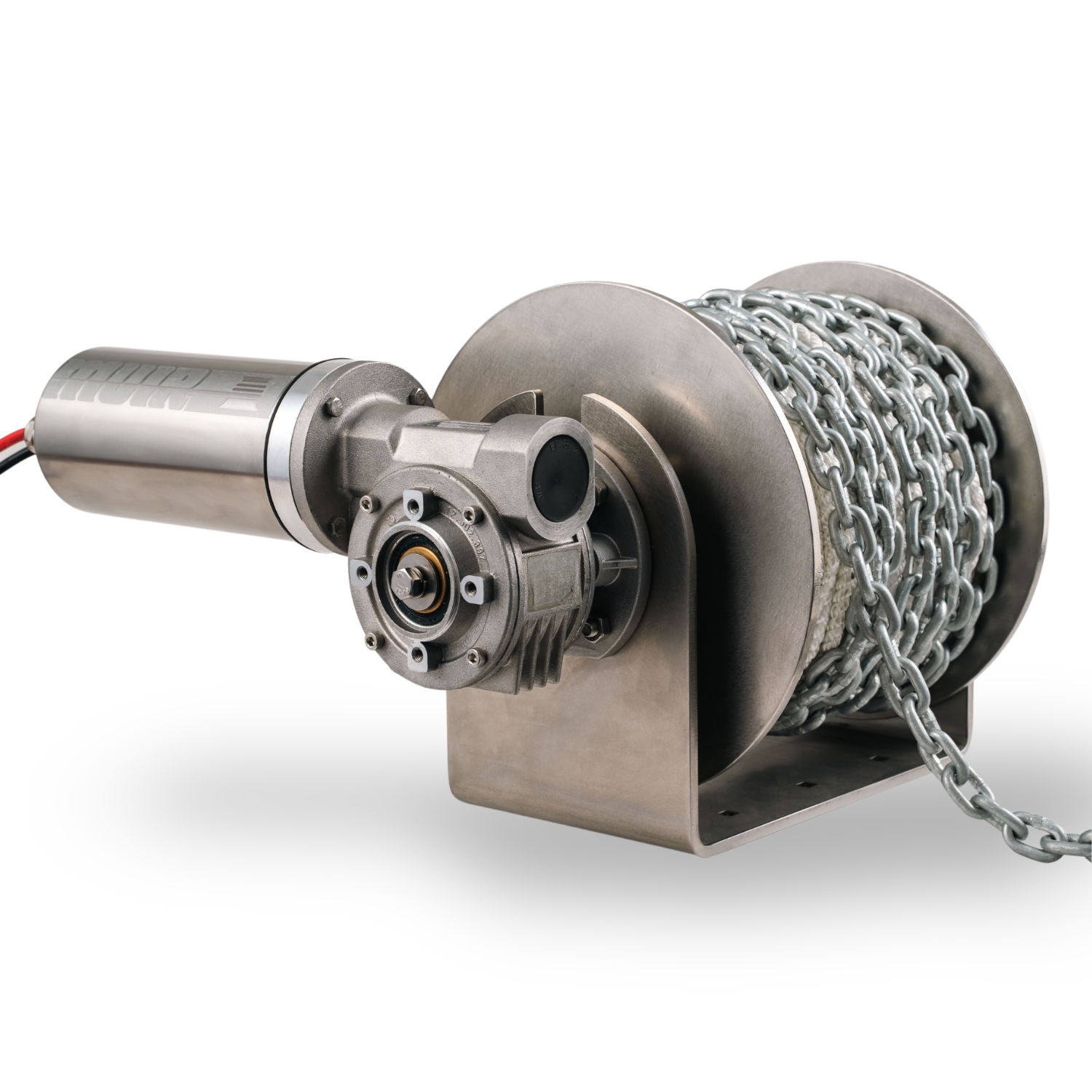

Muir DFF 08 Freefall Drum Winch | Patented Auto Freefall.
Muir DFF 08 freefall drum winch design for vessels 5–8m (16 – 26ft). 800W 12V/24V DC, 180kg max load, patented Auto/Manual Freefall with drum brake. Auto Anchor compatible.
Features
- Muir’s patented Auto Freefall or Manual Release Freefall is available in one unit!
- Mechanical Auto & Manual Release Freefall means no troublesome electronics must be mounted on the Drum or your chain locker
- Drum Shaft on a serviceable bearing centre for smooth, hassle-free operation even under full load.
- Muir’s drum brake means no over-run during Freefall
- Fast, easy and reliable anchoring with a Muir Drum Winch
- Large capacity drum
- Compact Anchoring system to suit boats with no anchor rode storage
- 316 stainless steel drum
- Superior, heavy-duty Italian drive train
Technical Specifications
| Name | Specifications |
|---|---|
| Recommended Vessel Length (m) | 5-8m |
| Recommended Vessel Length (ft) | 16 – 26ft |
| Power Supply Options | DC 12V, DC 24V |
| Recommended Muir Circuit Breaker | 100A/80A (12/24V) |
| Motor (Watts) | 800Watts |
| Amps Workload | 80A (12V) |
| Max Load | 180Kg |
| Workload | 60Kg |
| Max Line Speed | 33m/min |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 15Kg |
