Product Description

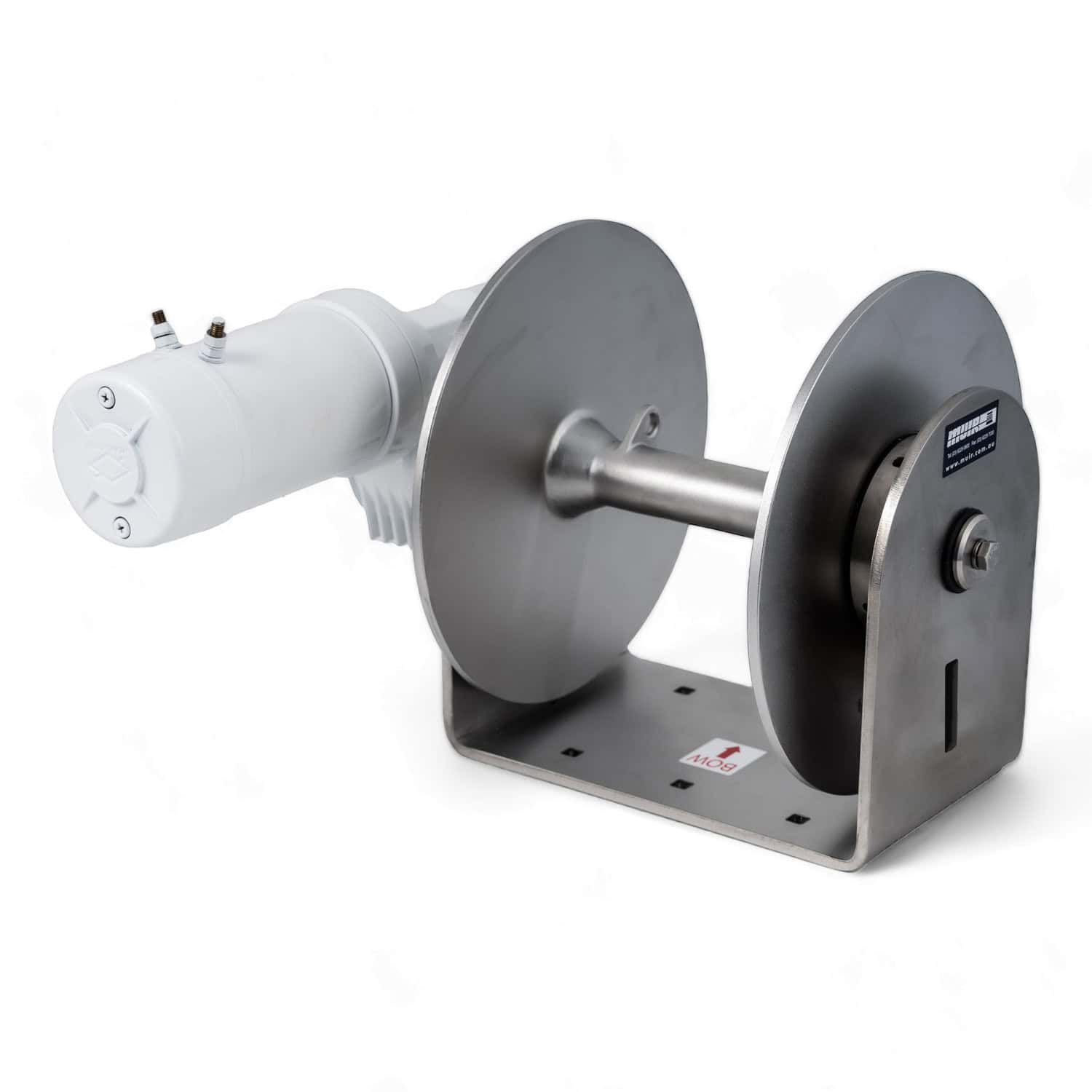

Muir DW 10 Drum Winch | Compact Anchoring 8–10m Boats.
Muir DW 10 drum winch design for vessels 8–10m (26 – 34ft). 1200W 12V/24V/48V DC, 261kg max load, 316 stainless drum. Auto Anchor compatible. Compact anchoring, no locker needed.
Features
- Marine grade 316 stainless steel drum
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Italian drive train
- Compact Anchoring system to suit boats with no anchor rode storage
- Simple installation
Technical Specifications
| Name | Specifications |
|---|---|
| Recommended Vessel Length (m) | 8-10m |
| Recommended Vessel Length (ft) | 26 – 34ft |
| Power Supply Options | DC 12V, DC 24V, DC 48V |
| Recommended Muir Circuit Breaker | 100A/80A (12/24V) |
| Motor (Watts) | 1200Watts |
| Amps Workload | 125A/60A (12/24V) |
| Max Load | 261Kg |
| Workload | 87Kg |
| Max Line Speed | 33m/min |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 30Kg |
