DW 12
Call 954-577-2850 or Send Enquiry for Pricing
Product Description

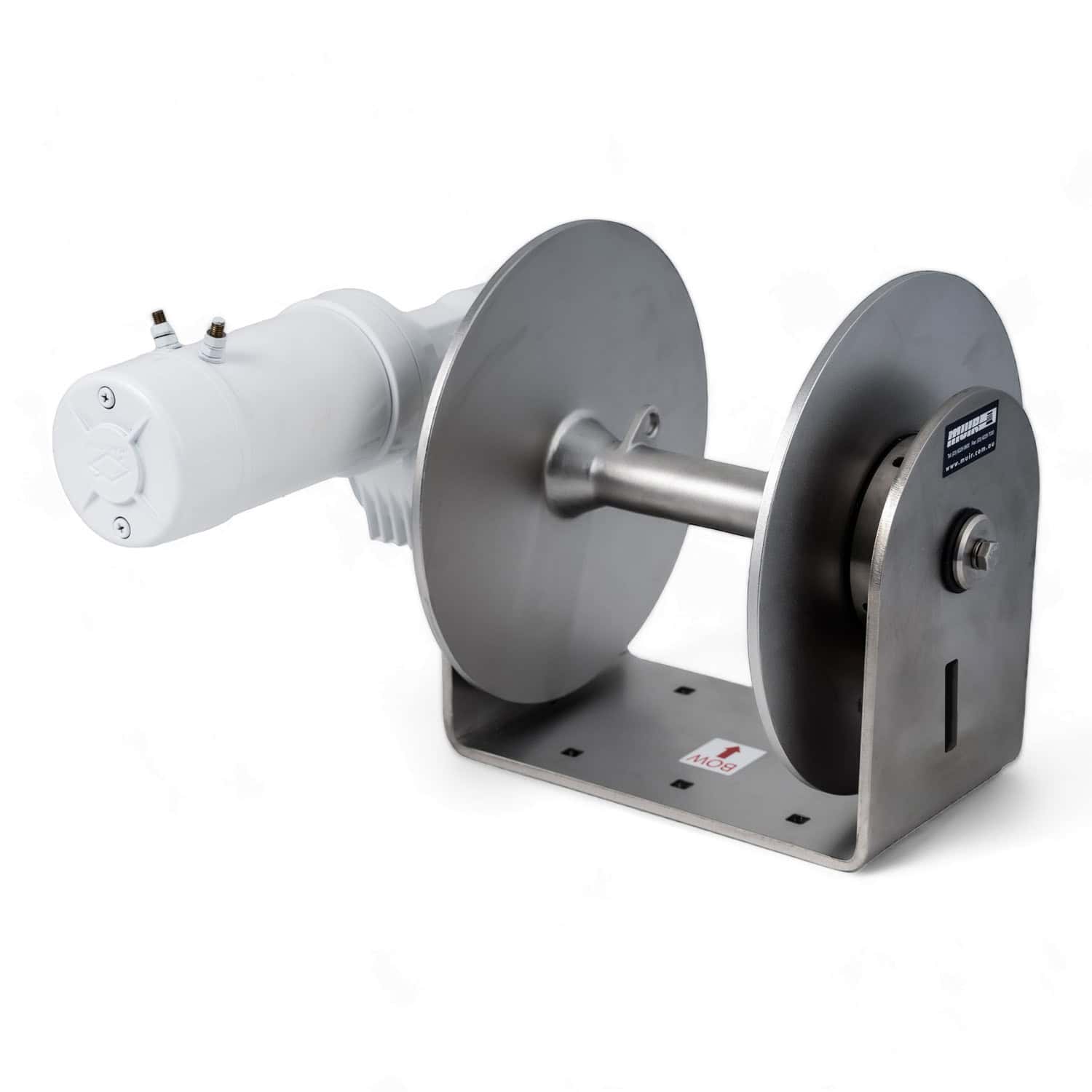

Muir DW 12 Drum Winch | Compact Anchoring 10–12m Boats.
Muir DW 12 drum winch design for vessels 10–12m (34 – 40ft). 1500W 12V/24V/48V DC, 312kg max load, 316 stainless drum. Auto Anchor compatible. The largest in our DW range.
Features
- Marine grade 316 stainless steel drum
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Italian drive train
- Compact Anchoring system to suit boats with no anchor rode storage
- Simple installation
Technical Specifications
| Name | Specifications |
|---|---|
| Recommended Vessel Length (m) | 10-12m |
| Recommended Vessel Length (ft) | 34 – 40ft |
| Power Supply Options | DC 12V, DC 24V, DC 48V |
| Recommended Muir Circuit Breaker | 150A/100A (12/24V) |
| Motor (Watts) | 1500Watts |
| Amps Workload | 150A/70A (12/24V) |
| Max Load | 312Kg |
| Workload | 104Kg |
| Max Line Speed | 33m/min |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 32Kg |
