Storm VR/VRC2200
Call 954-577-2850 or Send Enquiry for Pricing
Product Description

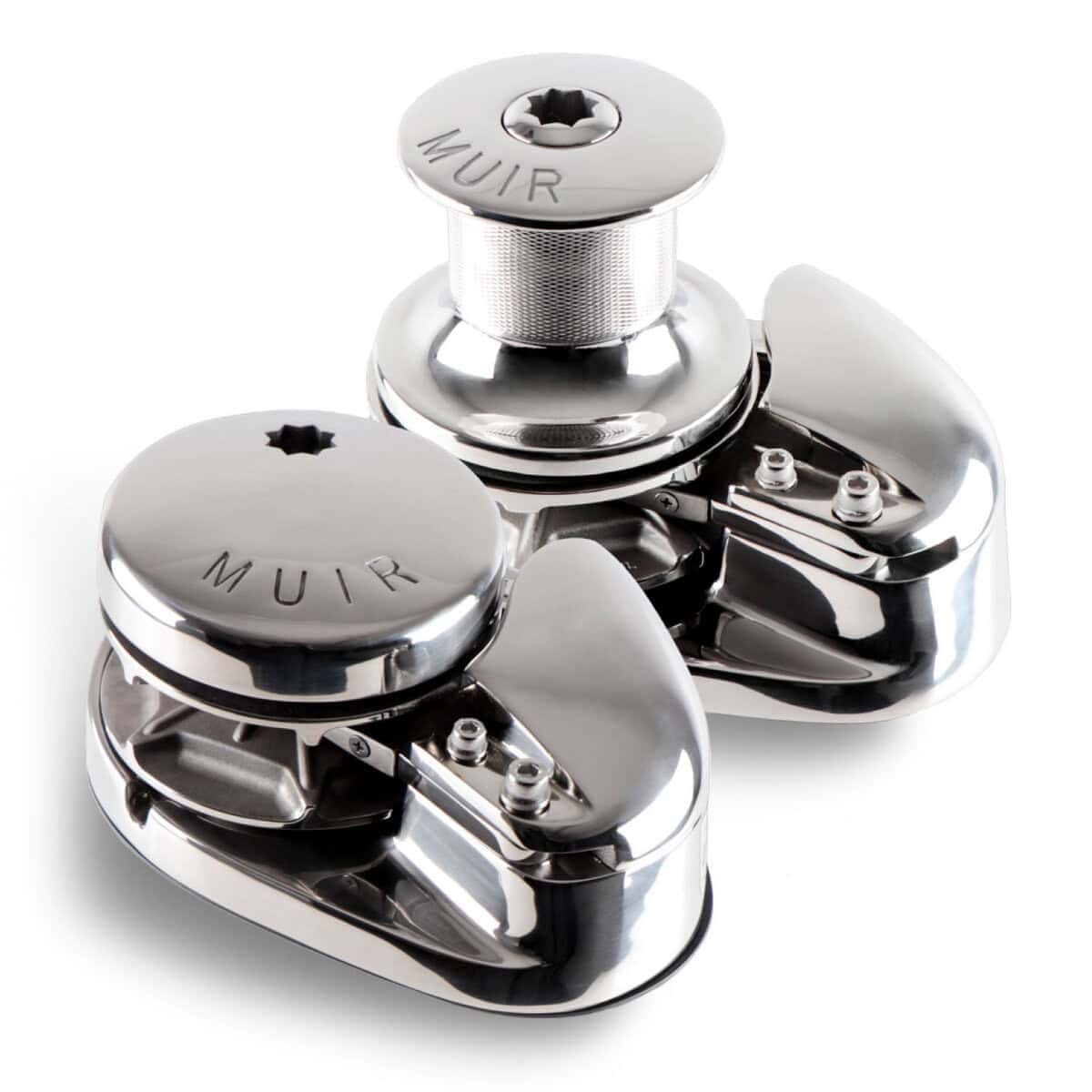

Storm VR/VRC2200 | Muir Australia
This Storm VR/VRC2200 designed for vessels up to 15m (49ft), and in low profile and capstan configurations, they offer fast powered retrieval, smooth rope chain combination operation, reduced installation time, style and unbeatable reliability. Manufactured from polished stainless steel components the Storm Windlass will weather the harshest of conditions.
Storm Windlasses represent the pinnacle of reliability and performance and are packed with the features and quality you have come to expect from Muir. Designed on the principles of the award-winning Atlantic series with all its features and more.
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS)
- Quick-Access Chain Pipe Cover
- Self-lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
- Deck Isolation Pad Included
Technical Specifications
| Name | Specifications |
|---|---|
| Recommended Vessel Length (m) | 12-15m |
| Recommended Vessel Length (ft) | 38 – 48ft |
| Power Supply Options | DC 12V, DC 24V, DC 48V |
| Recommended Muir Circuit Breaker | 150A/100A (12/24V) |
| Motor (Watts) | 1500Watts |
| Amps Workload | 150A/70A (12/24V) |
| Hydraulic Pressure | 10MPa |
| Hydraulic Flow | 15L/min |
| Max Load | 1100Kg |
| Workload | 367Kg |
| Max Line Speed | 30m/min |
| Compatible Chain Sizes | 6 mm (1/4″) – 10 mm (3/8″) |
| Compatible Rope/Chain Combo | 6mm (1/4″), 8mm (5/16″), 10mm (3/8″) |
| Compatible Rope Sizes | 12 mm (1/2″) – 16 mm (5/8″) |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 23.5Kg |
| Net Weight Hydraulic | 22.5Kg |
| Manual Operation | MOS (std on most gypsy sizes) |
