VC650
Call 954-577-2850 or Send Enquiry for Pricing
Product Description

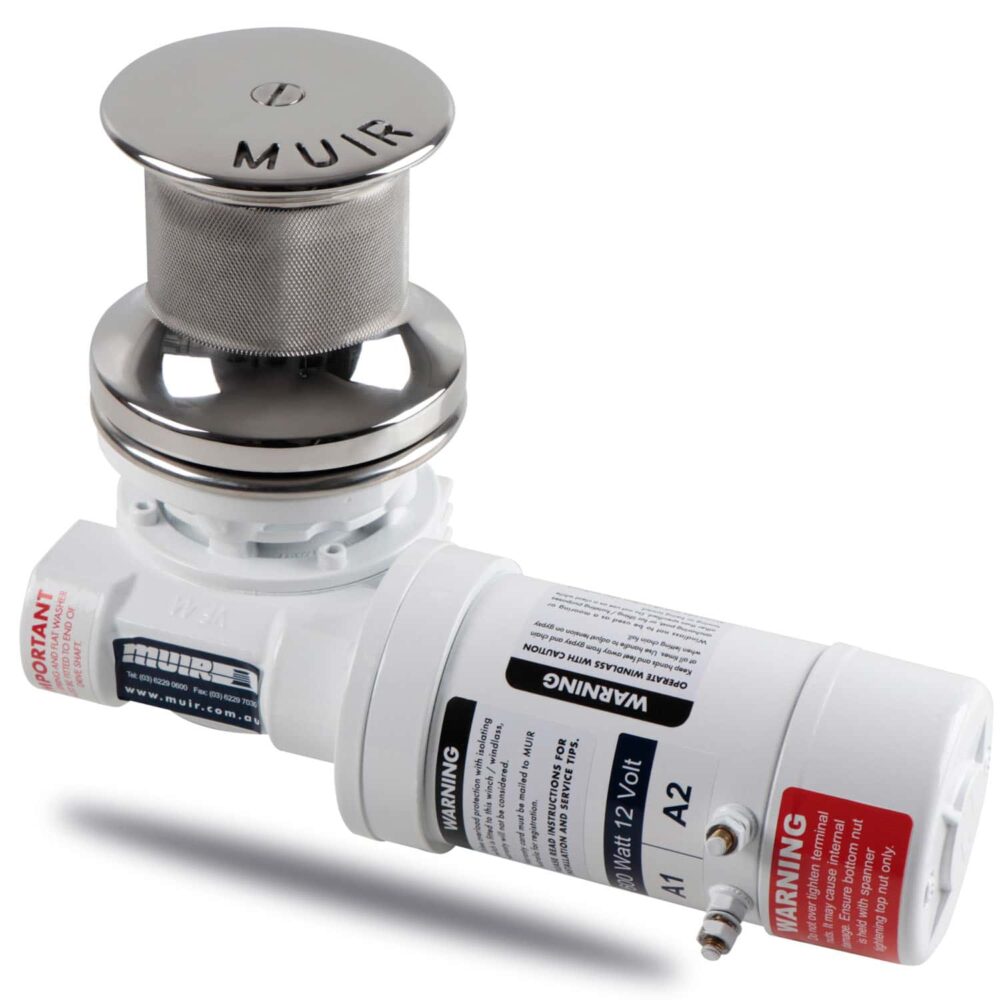

Muir VC650 Capstan | Vessels 8-11m (26 – 39ft)
This Muir VC650 capstan designed to suit vessels up to 8-11m (26 – 39ft) the Muir range of capstans provide reliable and heavy duty operation for mooring, warping and anchoring for all recreational and commercial applications. Efficient and quick they can be installed independently or as a complete system with windlasses. Manufactured to the highest quality standard, featuring heavy chrome and gear drive assembly. Accommodating varying deck thicknesses, they are popular for line hauling and fishing purposes. Available in 12 & 24 volt, Hydraulic & AC options.
Features
- Deck hugging snag free design
- Luxury chrome finish over marine grade bronze or 316 Stainless steel on some models

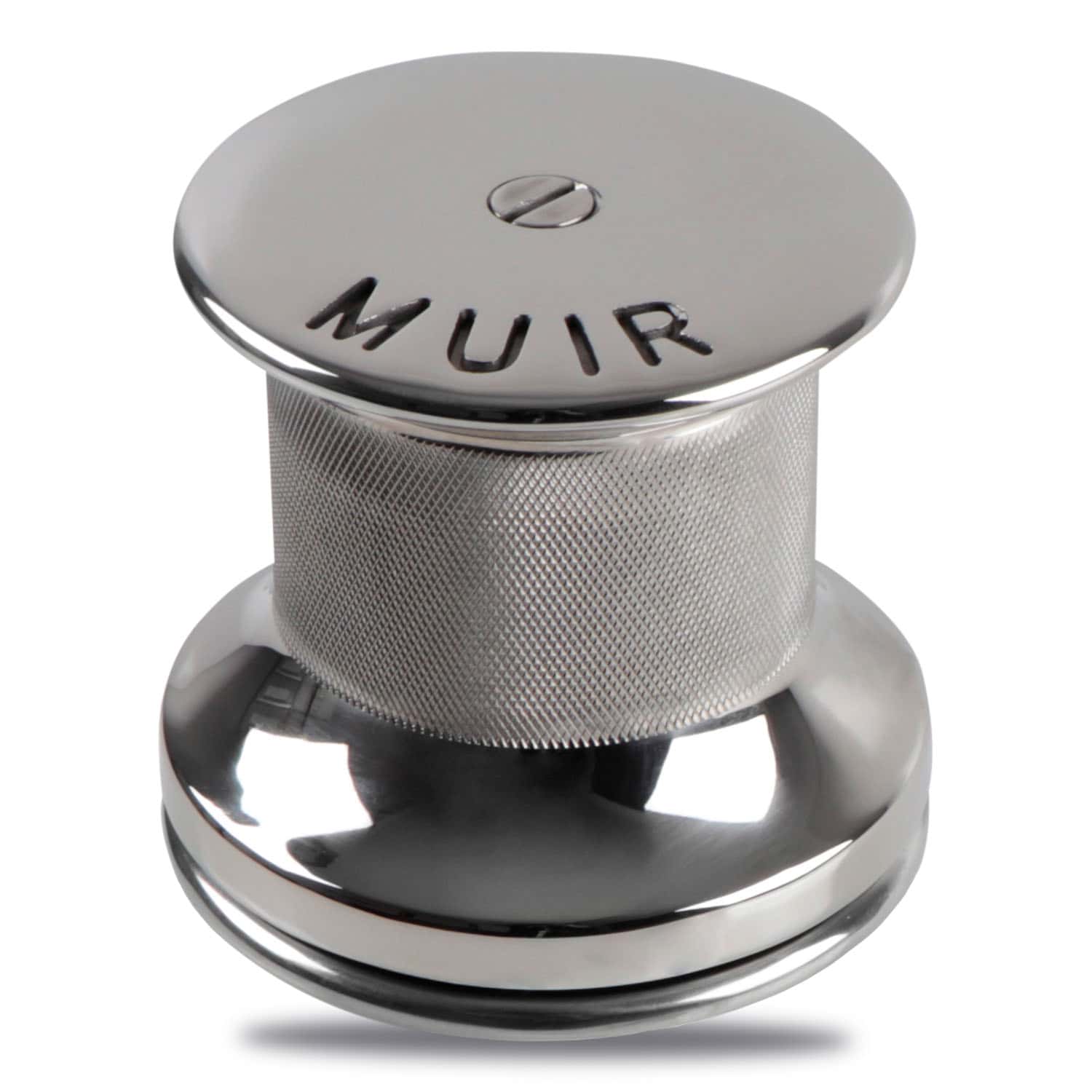

- Knurled or Fluted Capstan Drum
- Heavy duty dual direction motor in 12 & 24V, AC & Hydraulic
- Stainless steel shaft
- Stainless steel mounting bolts
- Installation/Operation booklet
Technical Specifications
| Name | Specifications |
|---|---|
| Recommended Vessel Length (m) | 8-11m |
| Recommended Vessel Length (ft) | 26 – 39ft |
| Power Supply Options | DC 12V, DC 24V |
| Recommended Muir Circuit Breaker | 80A/80A (12/24V) |
| Motor (Watts) | 800Watts |
| Amps Workload | 75A/40A (12/24V) |
| Max Load | 330Kg |
| Workload | 110Kg |
| Max Line Speed | 20m/min |
| Compatible Rope Sizes | 10 mm (3/8″) – 12 mm (1/2″) |
| Auto Anchor Compatible | No |
| Net Weight DC | 12Kg |
| Manual Operation | N/A |
