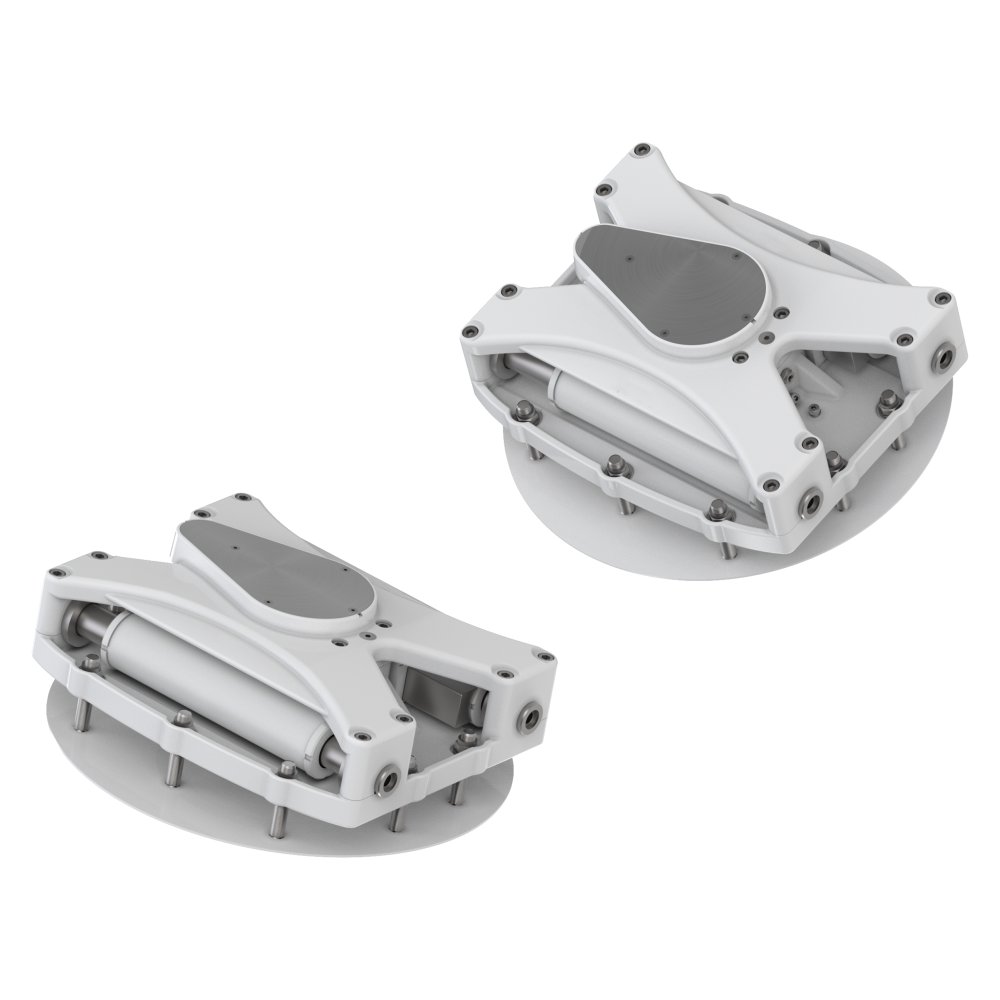

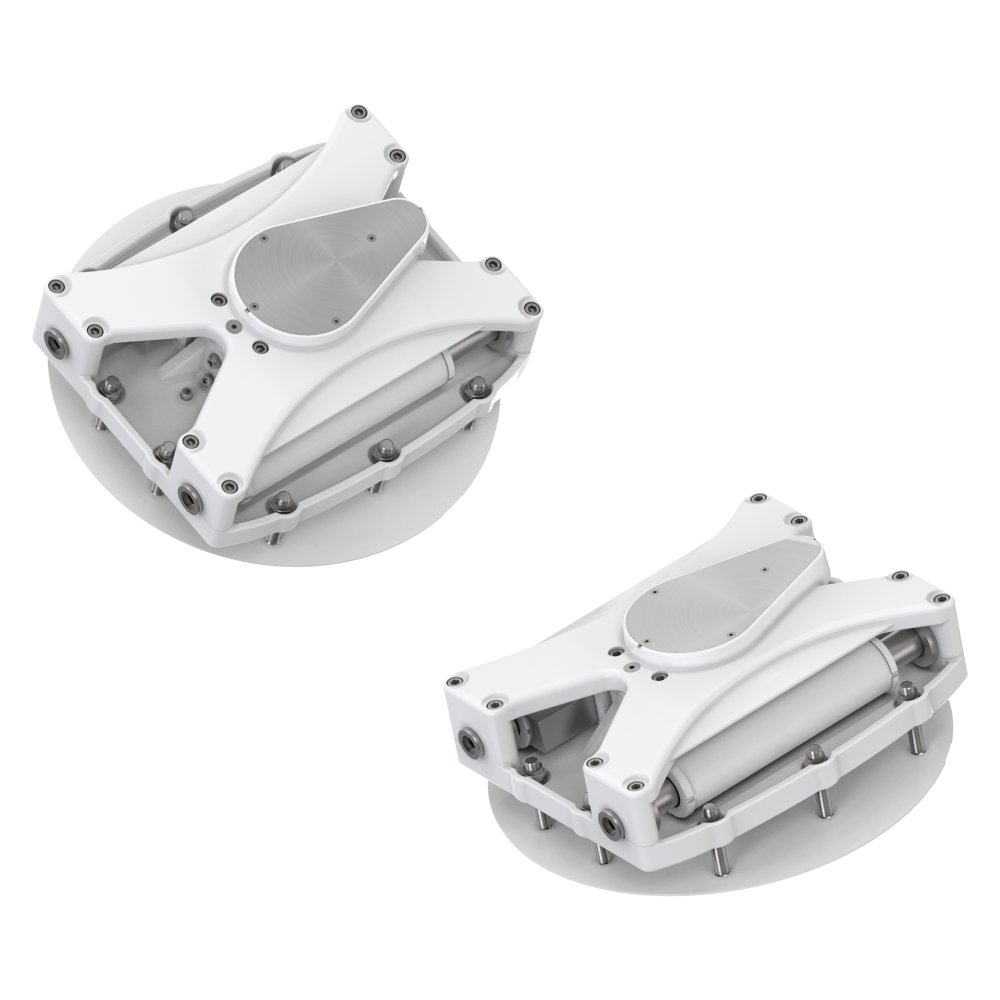

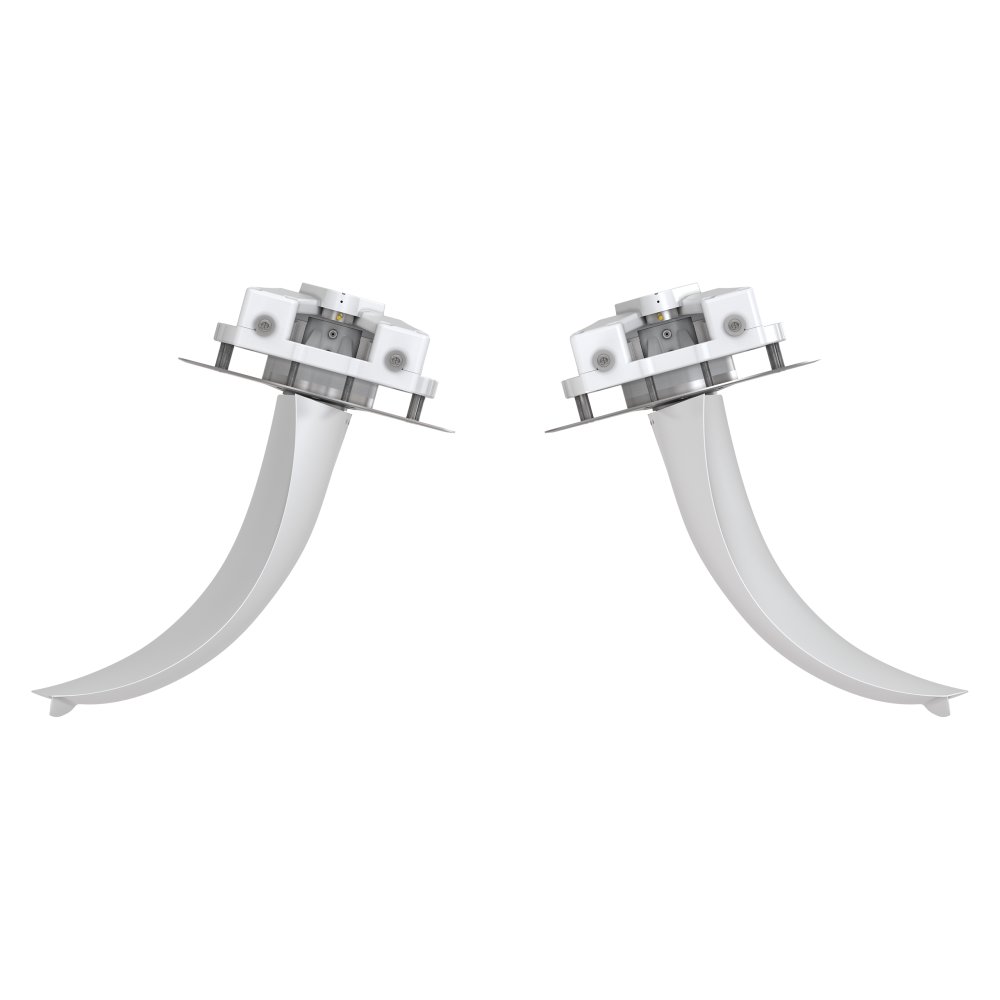

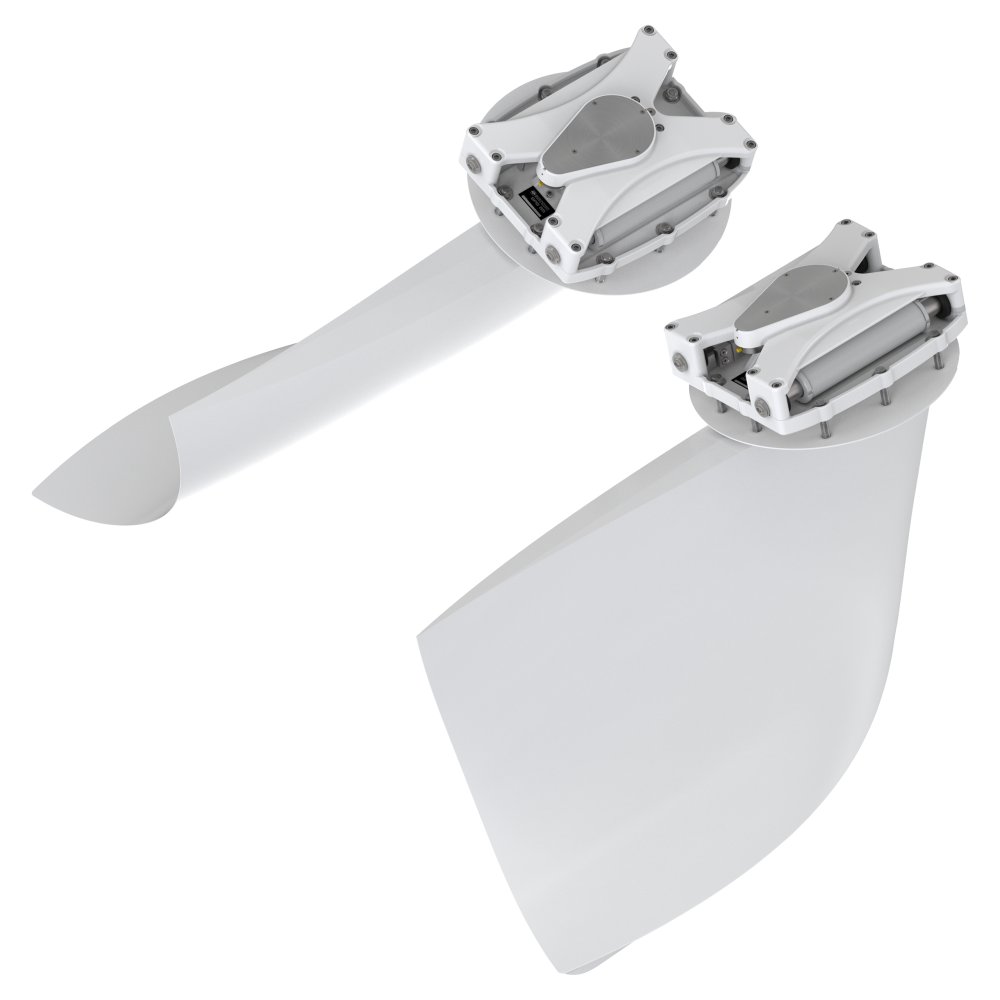

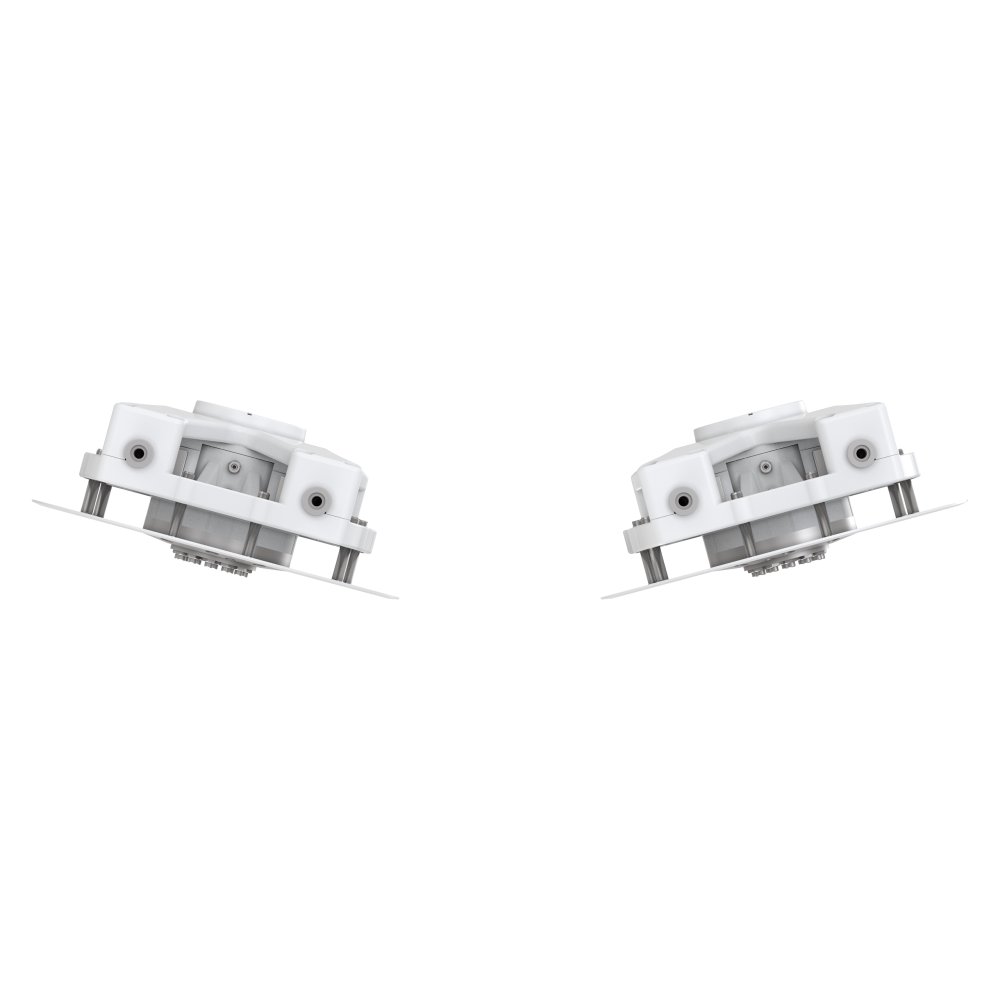

Actuator kit for Vector Fins™ VF650/VFS800
Actuator kit for Vector Fins™ VF650/VFS800 - Image 2
Actuator kit for Vector Fins™ VF650/VFS800 - Image 3
Actuator kit for Vector Fins™ VF650/VFS800 - Image 4
Actuator kit for Vector Fins™ VF650/VFS800 - Image 5
Actuator kit for Vector Fins™ VF650/VFS800 - Image 6
Actuator kit for Vector Fins™ VF650/VFS800 - Image 7

Actuator kit for Vector Fins™ VF650/VFS800

Call 954-577-2850 or Send Enquiry for Pricing

The SPS55 actuators for Vector fins™ are incredibly compact and silent, designed to fit in small available spaces in modern boats below 70 feet/ 20 meters.

The actuators are produced to be reliable and hassle-free, ensuring quiet operation that satisfies an owner-operated vessel’s needs.

Category:

Description

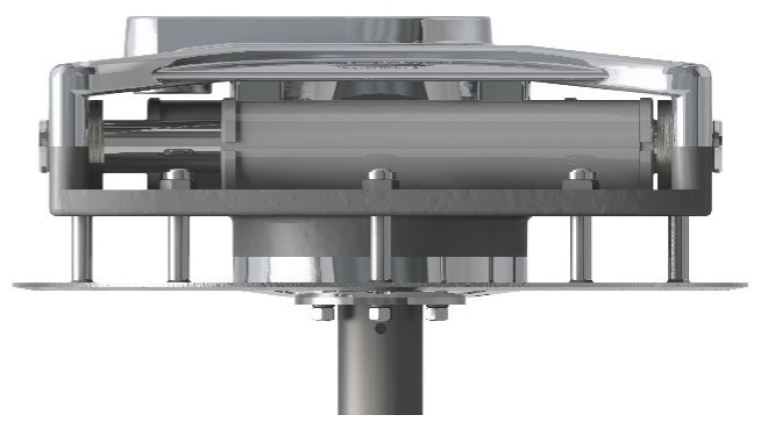

The most compact fin stabilizer actuator ever

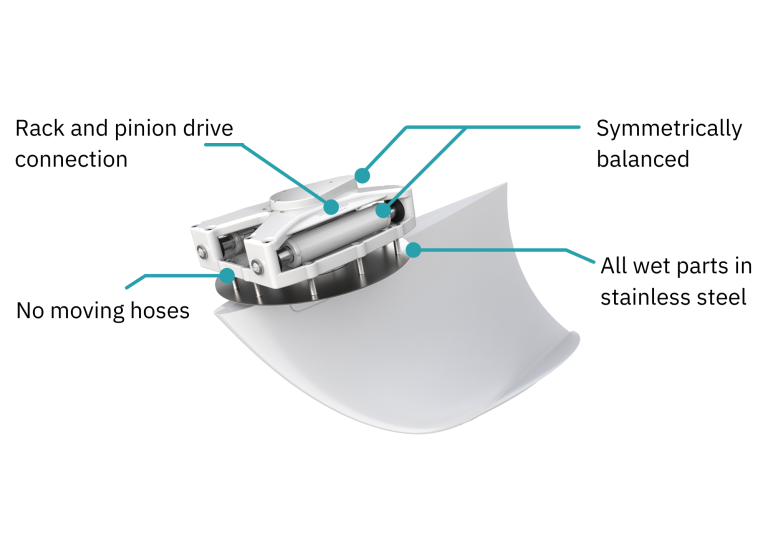

Technical design benefits

  • The squared base plate provides a large load distribution area to the hull while installing in tight spaces between stringers and bulkheads.
  • Dual, balanced cylinders provide symmetrical load and force.
  • The actuator can be installed in any direction in the boat; the fin angle is independent of the actuator’s direction.
  • No moving hoses at all secures leakages and potential wear and simplifies the installation process.
  • Oversized bearings for lifetime operation with only a minimal level of maintenance.
  • Rack and pinion drive connection for quiet, reliable, long-life operation, with easy service when needed after thousands of operational hours.
  • The Vector fins are quickly and easily installed and removed from the outside for best convenience, such as transport or other haul-out situations.
  • Defined shaft-shear point in case of the fins accidentally hitting something.
  • All wet parts in stainless steel.

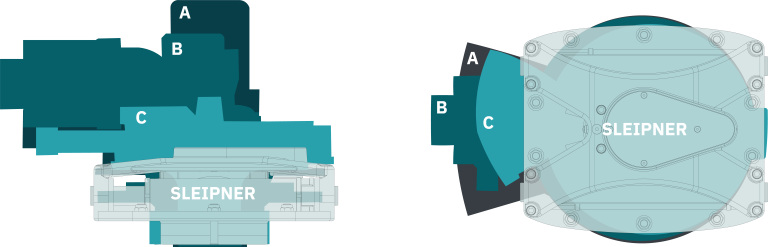

Size comparison

Size from side view (left) and top view (right) compared to other brand actuators for similar fin size:

Properties

S-LINK™

S-Link™ is a CAN-based control system used for communication between Sleipner products installed on a vessel.

  • Compact and waterproof plugs
  • Keyed and color-coded connectors to ensure correct and easy installation
  • Different cable lengths, extenders and T-connectors makes the system scalable and flexible to install

ANY SPEED

Vector Fins™ is the only top-performing stabilizer system for both cruising and at anchor use. The fins’ concave shape creates multilateral force direction improving the stationary positioning of a vessel while at anchor. The uniqueness of the design also becomes evident while underway as it improves in effectiveness as speed increases. Sea trials have proven that Vector Fins™ are up to 50% more efficient at anchor and capable of reducing the uncomfortable rolling motions of the vessel by up to 95% while cruising.

360° INSTALLATION

Designed to fit in small and challenging installation areas, the Vector Fins™ unique cone shaft design allows you to utilize the space onboard to install the actuators in any direction and insert the fins into the position you require.
