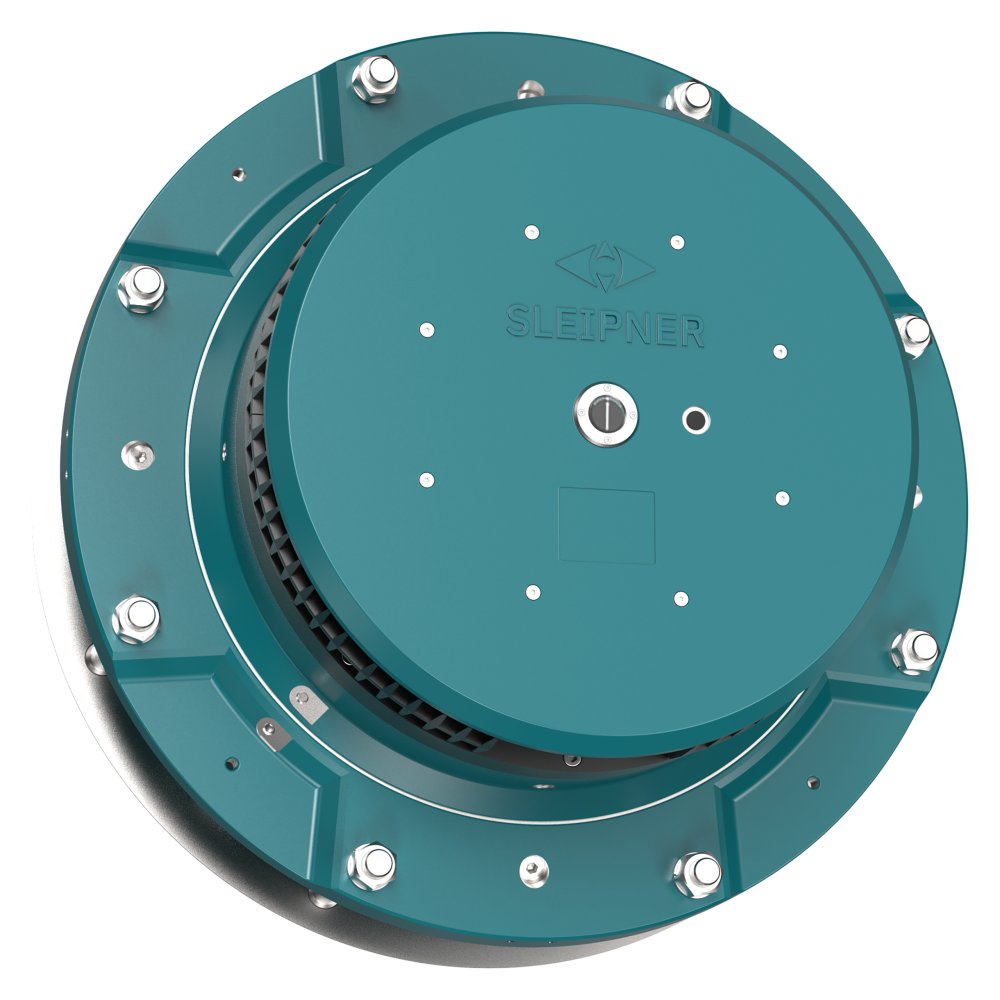

SPS100E AC Electric Stabilizer Actuator

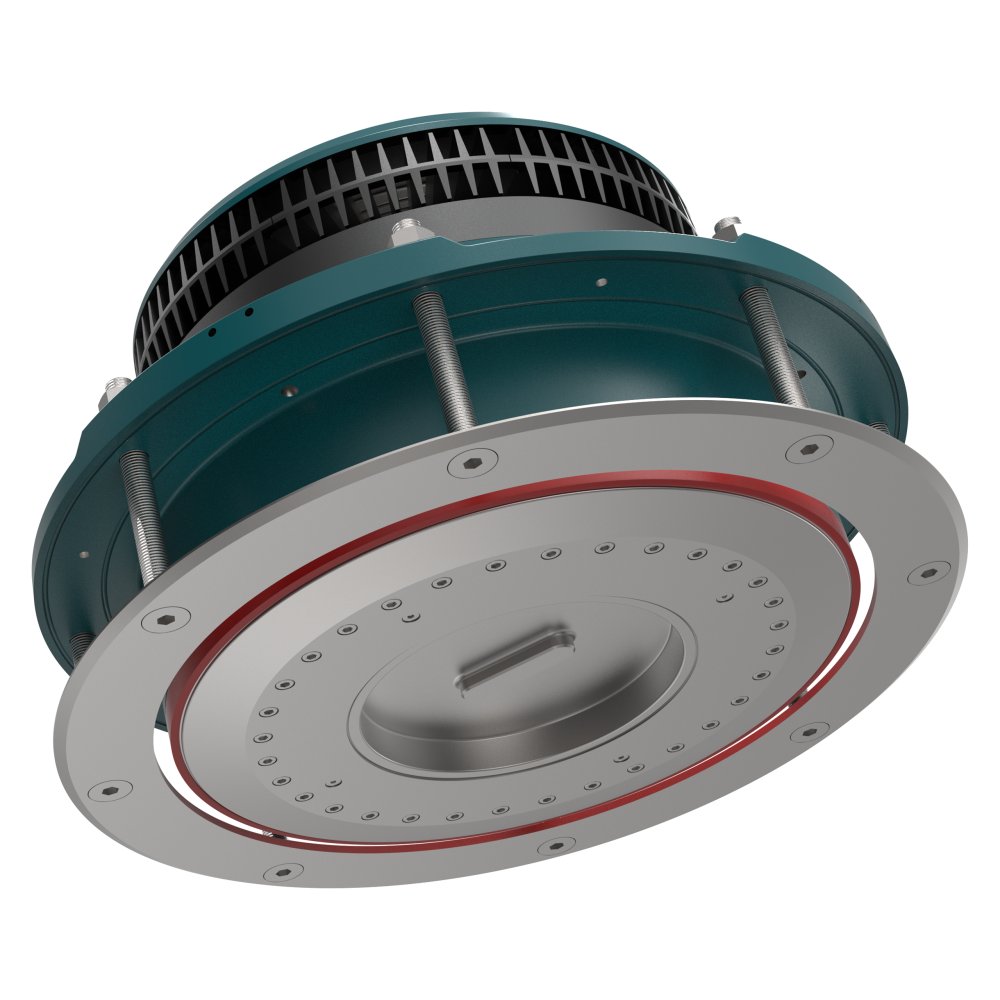

SPS100E AC Electric Stabilizer Actuator - Image 2

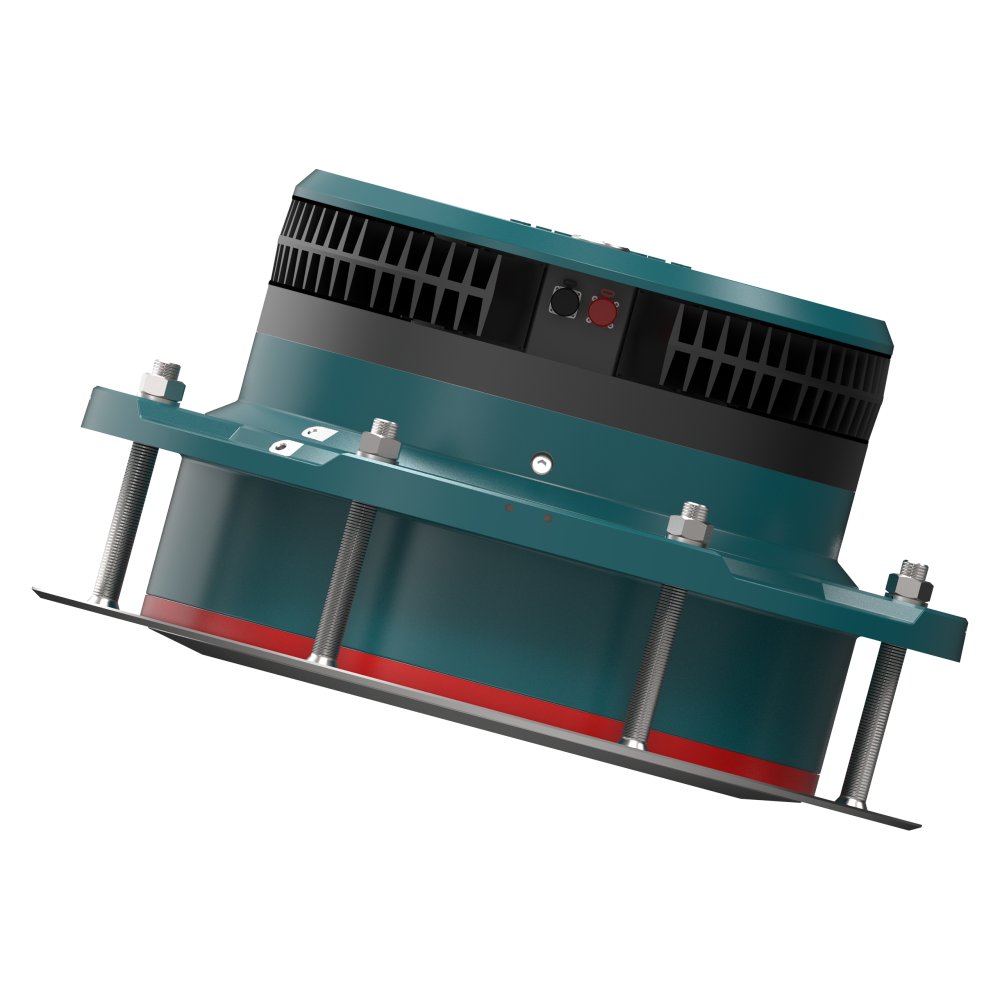

SPS100E AC Electric Stabilizer Actuator - Image 3

SPS100E AC Electric Stabilizer Actuator

Call 954-577-2850 or Send Enquiry for Pricing

The SPS100E actuator is the driving force behind Sleipner’s Vector Fins™, providing precise stabilization for larger yachts in the 36–45 meter range. This compact and energy-efficient actuator controls fin movement to reduce roll, delivering a smoother and more stable ride at sea.

Powered by 400V (three-phase) AC, it continuously adapts fin positioning in real-time with advanced algorithms, ensuring optimal performance in even the most challenging sea conditions. Ideal for larger yachts, the SPS100E offers robust stabilization with seamless integration.

SKU: SPS100E Category:

Product Description

Properties

ANY SPEED

Vector Fins™ is the only top-performing stabilizer system for both cruising and at anchor use. The fins’ concave shape creates multilateral force direction improving the stationary positioning of a vessel while at anchor. The uniqueness of the design also becomes evident while underway as it improves in effectiveness as speed increases. Sea trials have proven that Vector Fins™ are up to 50% more efficient at anchor and capable of reducing the uncomfortable rolling motions of the vessel by up to 95% while cruising.

360° INSTALLATION

Designed to fit in small and challenging installation areas, the Vector Fins™ unique cone shaft design allows you to utilize the space onboard to install the actuators in any direction and insert the fins into the position you require.

Category Feature / Specification Value
Power Power Supply 400V AC 3ϕ
Protection IP Rating IP67
Performance Peak Power per Actuator 14 kW
Integration Typical Vessel Size (4-fin) 55-65m / 180-213ft
Typical Vessel Size (2-fin) 36-45m / 118-147ft
Typical Vessel Class Motor boat, Commercial vessel
Dimensions (a) 23.5″
(b) 434mm / 17in
(c) 286mm / 11in
(d) 150″
(e) 559mm / 22in
(f) 629mm / 24in
(g) 815mm / 32in
Features 360° Installation Yes
Any Speed Yes
Patented Noise Reduction Yes
Industry Leading Efficiency Yes
Plug and Play Signal Cables Yes
4-fin Configuration Available Yes
Dynamic Position Mode Yes
Eco Mode Yes
Dock Mode Yes
On Water Service Possible Yes
Instant On Yes
Coordinated Turn Control Yes

Typical average power consumption
At anchor complete system (both actuators together)

Fin Model Roll Time (s) Max (100% effort) Med/Big (66% effort) Small/Med (33% effort)
V4-26HS 4.0 8.15 8.15 0.87
4.5 7.59 3.96 0.91
5.0 6.79 3.77 0.92
5.5 6.29 3.48 0.93
6.0 5.71 3.20 0.91
6.5 5.43 2.99 0.91
V5-31 4.0 10.42 4.05 0.85
4.5 10.04 4.23 0.85
5.0 9.35 4.33 0.85
5.5 8.63 4.31 0.85
6.0 7.98 4.10 0.85
6.5 7.69 3.84 0.85

Peak power per actuator: 14,0kW

Notice:
This depends on many factors, including the boat’s roll period, the size of the stabilizer system for the boat, and the sea state. Typically, small to medium waves are the most common conditions to anchor comfortably in.
