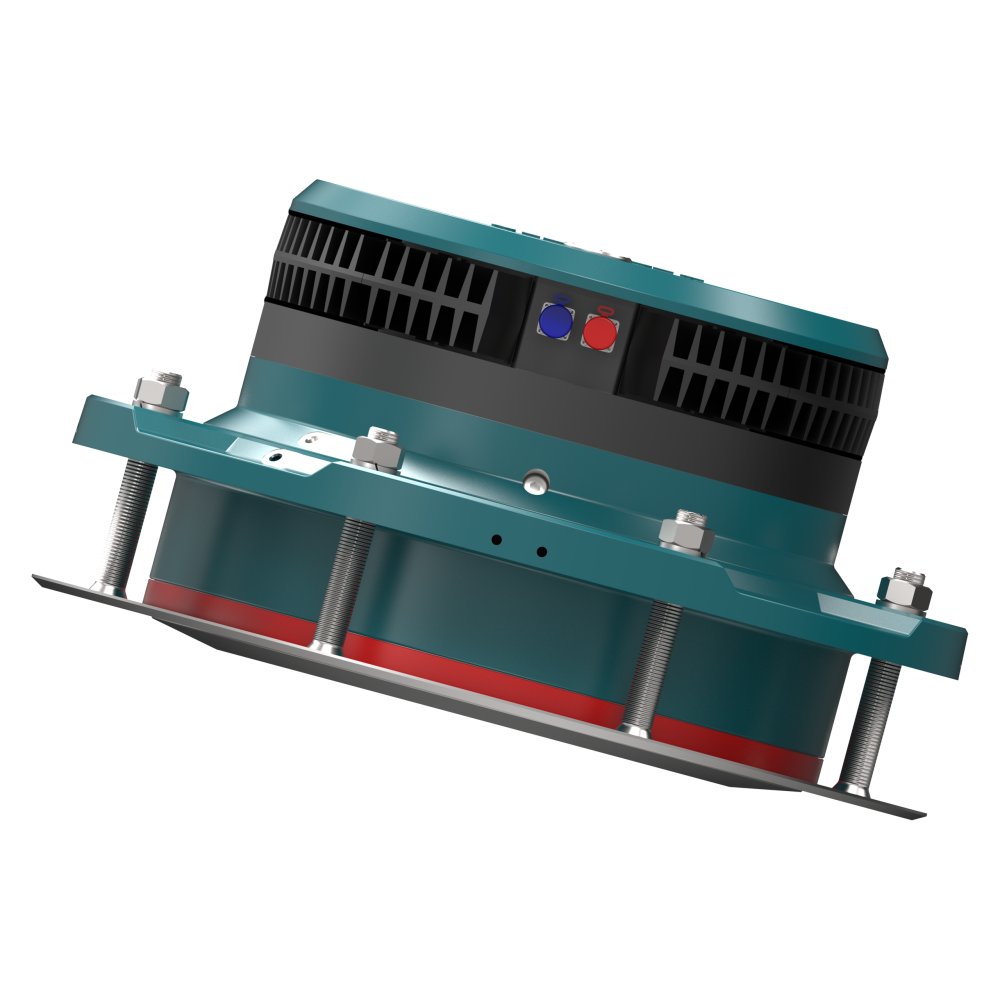

SPS80E AC Electric Stabilizer Actuator

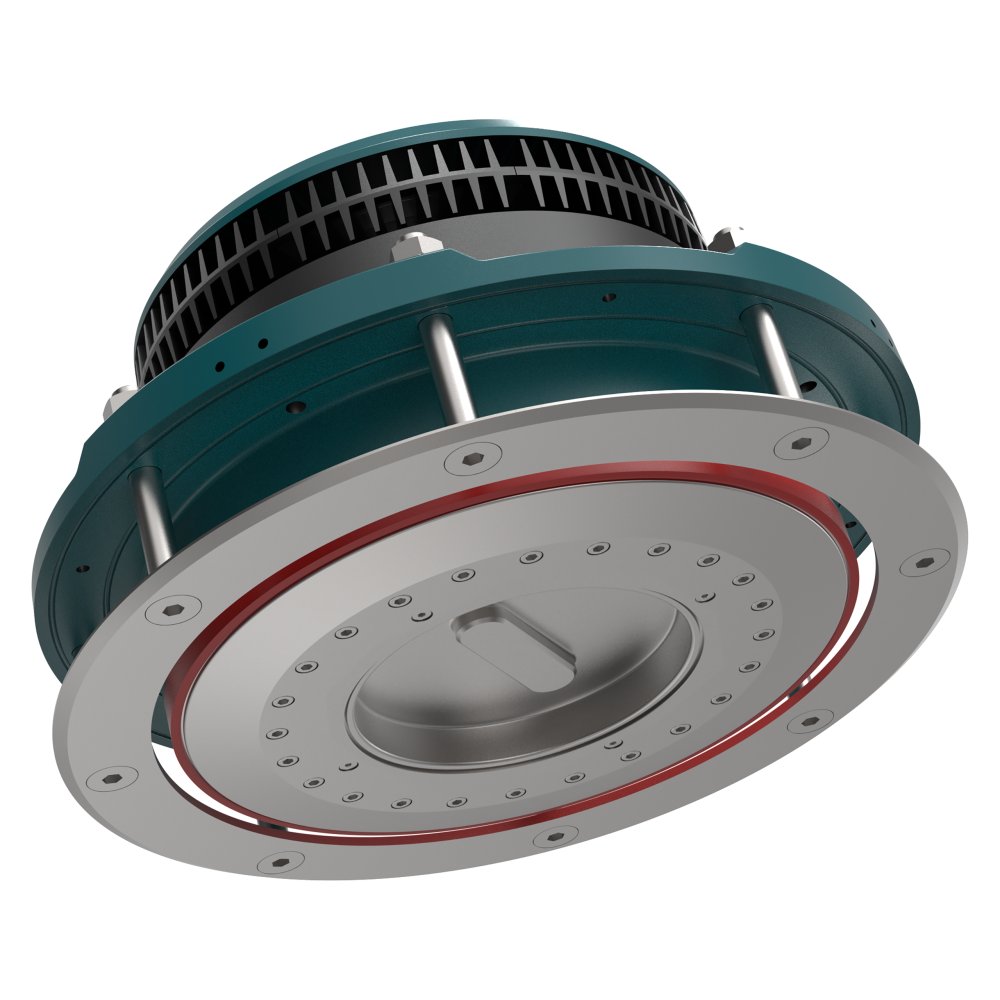

SPS80E AC Electric Stabilizer Actuator - Image 2

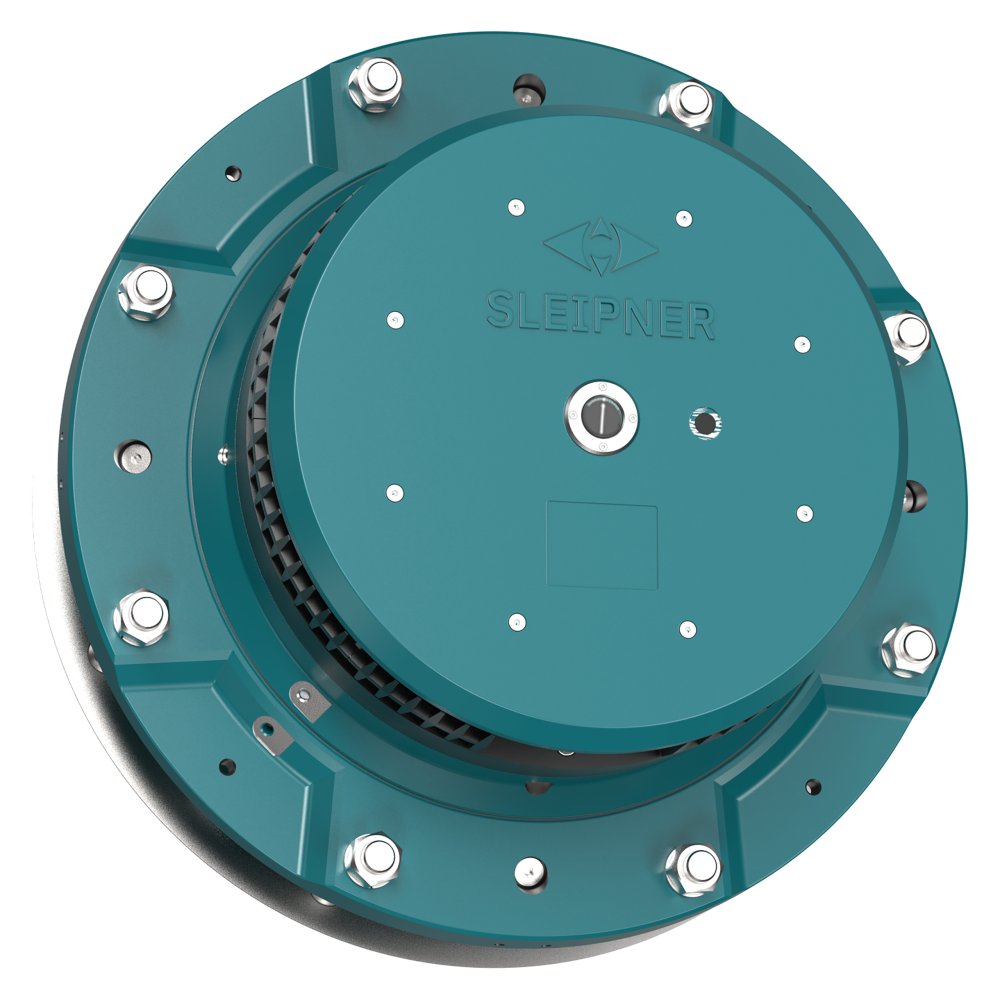

SPS80E AC Electric Stabilizer Actuator - Image 3

SPS80E AC Electric Stabilizer Actuator

Call 954-577-2850 or Send Enquiry for Pricing

As the driving force behind Sleipner’s Vector Fins™ for yachts in the 29–38 meter range, the SPS80E actuator provides powerful, real-time stabilization to reduce roll and optimize onboard comfort. Renowned for its compactness and energy efficiency, the SPS80E integrates effortlessly with yacht systems, delivering unmatched control with minimal space requirements.

Powered by 230V or 400V (three-phase) AC, it continuously adjusts fin positioning using advanced algorithms to ensure stability in any sea conditions, making it an ideal solution for large yachts.

SKU: SPS80E Category:

Product Description

Properties

ANY SPEED

Vector Fins™ is the only top-performing stabilizer system for both cruising and at anchor use. The fins’ concave shape creates multilateral force direction improving the stationary positioning of a vessel while at anchor. The uniqueness of the design also becomes evident while underway as it improves in effectiveness as speed increases. Sea trials have proven that Vector Fins™ are up to 50% more efficient at anchor and capable of reducing the uncomfortable rolling motions of the vessel by up to 95% while cruising.

360° INSTALLATION

Designed to fit in small and challenging installation areas, the Vector Fins™ unique cone shaft design allows you to utilize the space onboard to install the actuators in any direction and insert the fins into the position you require.

Category Feature / Specification Value
Power Power Supply 400V AC 3ϕ, 230V AC 3ϕ
Protection IP Rating IP67
Performance Peak Power per Actuator 8 kW
Weight Net Weight 296kg / 652lbs
Integration Typical Vessel Size (4-fin) 45-60m / 147-196ft
Typical Vessel Size (2-fin) 29-38m / 95-124ft
Typical Vessel Class Motor boat, Commercial vessel
Dimensions (a) 20″
(b) 349mm / 13in
(c) 247mm / 9in
(d) 105″
(e) 475mm / 18in
(f) 537mm / 21in
(g) 705mm / 27in
Features 360° Installation Yes
Any Speed Yes
Patented Noise Reduction Yes
Industry Leading Efficiency Yes
Plug and Play Signal Cables Yes
4-fin Configuration Available Yes
Dynamic Position Mode Yes
Eco Mode Yes
Dock Mode Yes
On Water Service Possible Yes
Instant On Yes
Coordinated Turn Control Yes

Typical average power consumption
At anchor complete system (both actuators together)

Fin Model Roll Time (s) Max (100% effort) Med/Big (66% effort) Small/Med (33% effort)
V4-21HS 4.0 5.86 2.59 0.46
4.5 5.56 2.68 0.48
5.0 4.89 2.56 0.48
5.5 4.48 2.36 0.48
6.0 4.11 2.17 0.49
V3-23 3.5 6.40 2.40 0.47
4.0 6.30 2.50 0.47
4.5 6.00 2.60 0.47
5.0 5.30 2.60 0.47
5.5 4.90 2.40 0.47
6.0 4.50 2.30 0.47
V4-26 3.5 7.04 2.68 0.47
4.0 6.76 2.73 0.46
4.5 6.32 2.84 0.48
5.0 5.70 2.81 0.48
5.5 5.28 2.66 0.49
6.0 4.83 2.44 0.49
6.5 4.59 2.28 0.48

Peak power per actuator: 8.0kW

Notice:
This depends on many factors, including the boat’s roll period, the size of the stabilizer system for the boat, and the sea state. Typically, small to medium waves are the most common conditions to anchor comfortably in.
