Description

30 Kgf for Bow or Stern: (Horizontal pump position)



Explanation towards all options: Read thoroughly and select:

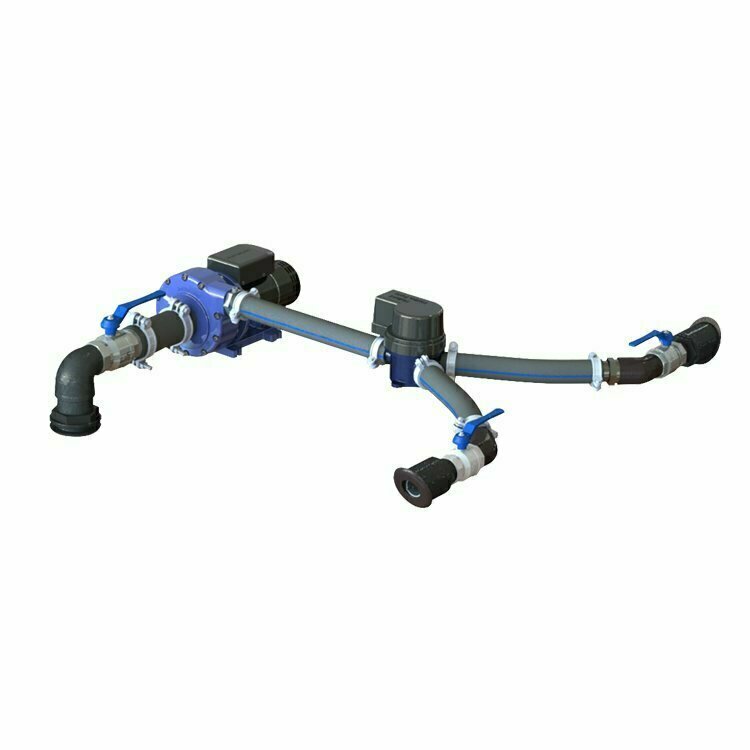

– All standard parts are mentioned in diagram below. They are required for the installation and included in the price

– Specific and required parts such as the nozzles etc must be selected with help the check-boxes

– Additional parts, and important products are displayed, and can be selected if you choose to order them

The check boxes enable you to select all required parts. After completing them your JT30 system is ready to be installed.



Explanation towards required choices to complete the JT30 system

Pump head position:

The Jet Thruster pump head can rotate. This enables you to select the orientation which is best for the installation. The pump head position can be ordered in position you would like it to be in. If later on you prefer to change, this is no problem. All Jet Thruster pump heads can be changed. Read out manual how to change the postion.

A: Position #1 (outlet shroud pointing up)

B: Position #2 (outlet shroud pointing side-way)

Pump outlets:

Because each project is often a custom project, we have several custom components you must chose from. Depending on the pump head position at point A and Point B, you can choose from 2 different pump outlet types.

C: Pump outlet straight

D: Pump outlet 90-degree elbow

Nozzles:

E – N

Nozzles are a crucial part in any Jet Thruster installation:

The water flow is directed to nozzles which are located Forward and Aft in the boat, just below the water line. Because each hull is different, and interiors may vary, we have created a series of nozzles with different flange angles in order to have the optimum nozzle for your boat. We have created a Informative Website page towards this subject in which we full explain how to select the correct Nozzle type:

Select a nozzle type with help of the tools we created: Go directly the to the Nozzle page with this link:

https://irp.cdn-website.com/265d2296/files/uploade…

O: Battery

Optima batteries are the best choice for powering Jet Thruster systems. These batteries are Small, powerful and have excellent deep cycle capabilities. We recommend Optima only for Jet Thruster systems



---

P: Composite 2″ Ball Valves instead of standard Stainless steel 2″ ball valves

The use of Composite products is rapidly increasing in the marine industry. The reason is obvious. Composites work very well in Salt water environments, and valves will not deteriorate due to the corrosive nature of sea water. In case your boat is on salt water, we recommend composite valves over Stainless steel valves. We endorse the use of Composites based upon the unique and reliable characteristics and the positive feedback from the market.

---

Q: Zinc Anode for Pump Outlet (WS-CP-001-00 + WS-P-156-00)

There are Stainless steel parts in and to the pump which benefit from a cathodic protection by use of Zinc in case of use in salt water. In order to protect the pump shaft, stainless steel impeller, pump outlet and pump inlet, we have developed an Anode kit to protect these parts.

– WS-P-156-00: The 2″ threaded side will screw into the 2″ threaded pump outlet

– WS-CP-001-00: The Zinc Anode kit includes a composite holder in which a zinc anode is present. With the provided cable set, all necessary parts are connected with the zinc.

---

R: Wet Wipes

All threaded parts are connected with a Poly-Urethane sealant. Parts straight BSP threads (no NPT) and after all threads have been de-greased and thoroughly cleaned, all threads are covered with a rich amount of the adhesive. Both Male and Female threads must be fully covered. Inevitably, the sticky and very difficult to remove Poly-urethane sealant will get on your hands, tools and parts. Directly after you connected the parts, these wipes will allow you to wipe off the sealant from any surface. Try this with paper or cloth and you’ll end up with a big mess. Use the wipe and deliver a spotless and professional installation. Highly recommended to have this bucket with 150 little towels around.

---

S: PU-Sealant

The only good way to connect and install the BSP threaded parts, nozzles and water inlet flanges is with use of a Poly-Urethane sealant. We recommend the Wurth Marine sealant.

---

T: Hose (Reduce the standard hose length)

The installation kit provides 10M/33ft of Marine water hose in the right quality. Possible the standard length is too long. We offer the possibility to decrease hose length in the installation kit.

– Tick the box marked with T, in order change from standard 10m/33ft into 5m/16ft. In this case we will ship a total of 5M/16ft

---

U: Remove hose from the order

In case you do not need the standard 10M/33ft hose, you can remove it from the part-list
